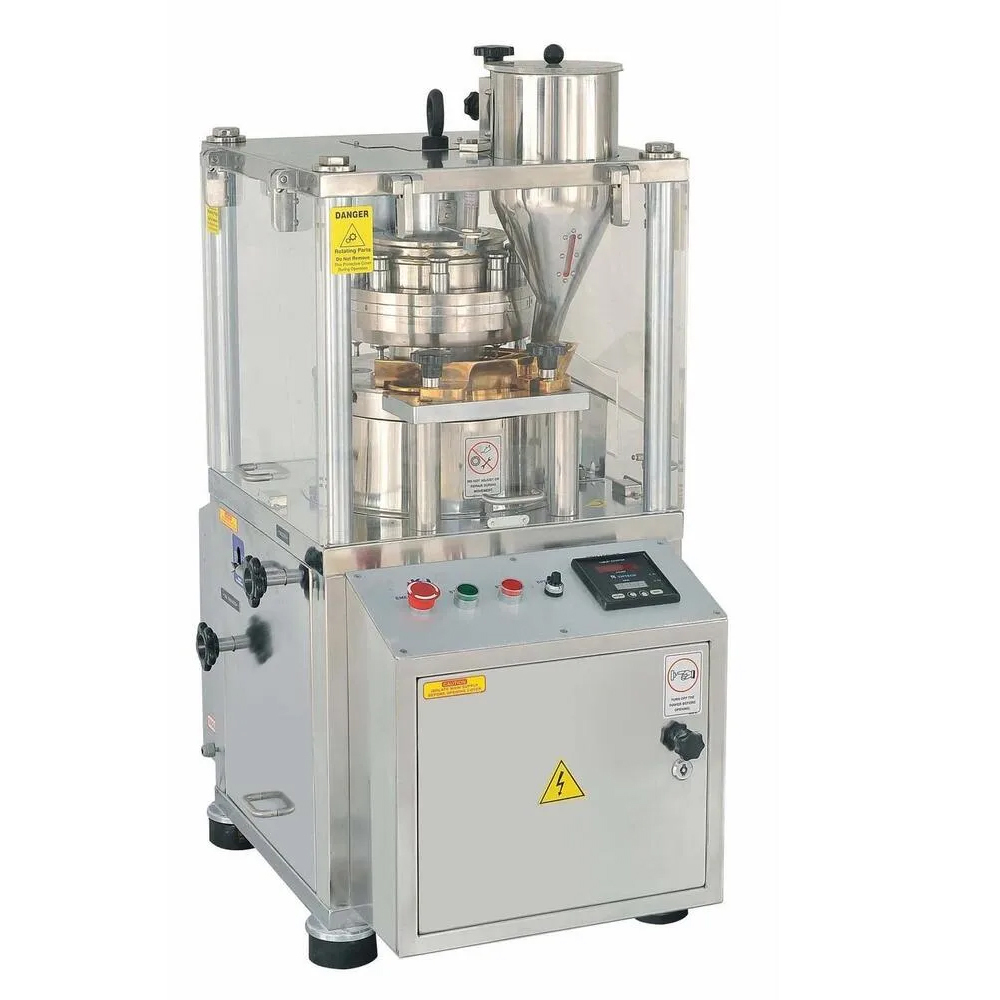

Heavy Duty Single Sided Rotary Tableting Machine By Nemarit Engineering Pvt Ltd

100.00

320000.0 INR

344400.00 INR

Silver

yellow

Stainless Steel

contact parts SS

10 Per Month

10 Per Month

ISO 9001:2015

a c Design is cGMP a Square GMP moel a c Upper guard of transparent acrylic. a c Higher turret speed 40 rpm. a c Variable speed pulley. a c Lubrication system with hand pump, optional auto pump. a c All contact parts AISI 316 & non contact parts AISI 304. a c Turret drive trough worm and worm wheel gear. a c Rigid gravity feed frame and stand with fine flow setting of powder. a c Upper Punch penetration system to adjust upper punch entry in die. a c Completely Paint free tablet compression area. TECHNICAL SPECIFICATION Model VPM-12 VPM-16 VPM-20 VPM-22 Tooling Bolus / Slugging "D" "D" Da a No. of Station 12 STN 16 Stn. 20 Stn. 22 Stn. Operating Pressure 15 Ton 10 Ton 10 Ton 10 Ton Max. Tablet Diameter 42mm 24 mm 24 mm 24 mm Max. Depth of Fill 30 mm 20 mm 20 mm 20 mm Output - Tablets/Hr. 8,400 to 14,400 10,500 to 45,500 20,500 to 50,500 15,500 to 60,500 Upper Punch Penetration 1.5 to 4 mm 1.5 to 4 mm 1.5 to 4 mm 1.5 to 4 mm Main Electric Motor 7.5 HP/960RPM/ 415V/50HZ/3Ph 3HP/1440RPM/415V/50HZ/3Ph
