Ribbon Blender - Stainless Steel & Mild Steel 50-5000 Ltr Capacity | Rapid Homogeneous Mixing With Adaptable Features

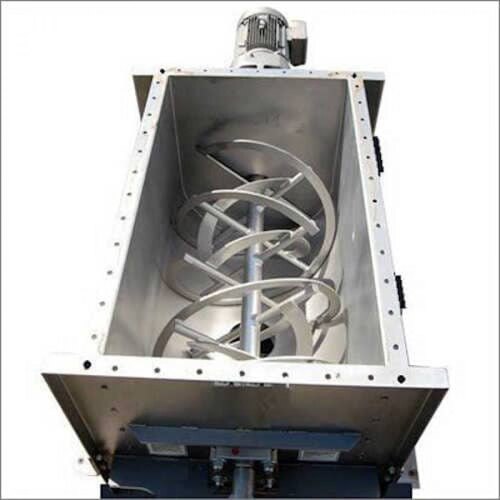

Ribbon BlenderRibbon blender is basically manufactured for uniform homogeneous and quick mixing of powders and semi-wet materials of different densities. Helical ribbon agitator design is the real key for the success of this Blender.The machine is manufactured in the combination of Mild Steel and Stainless Steel. The product to machine contact parts will be in Stainless Steel and remaining is in Mild Steel to reduce the total cost of the machine. cGMP models are also available.




CAPACITY(LTRS.)


TROUGH DIMENSIONS(W x H x L) (mm)


POWER(H. P.)








50
300 x 350 x 700
1


100
350 x 450 x 900
1.5


200
450 x 575 x 1200
3 - 2


500
600 x 750 x 1500
5 - 7.5


800
700 x 850 x 1800
10 - 12.5


1000
800 x 1000 x 2000
12.5 - 15


1500
900 x 1100 x 2200
20 - 25


2000
1000 x 1200 x 2400
25 - 30


3000
1200 x 1400 x 2800
40 - 50


5000
1300 x 1650 x 3250
75


Special Features of Vats & Vessels Ribbon Blender -

Ribbon cross-section and pitch close clearances between outer ribbon and shell and number of spirals on the ribbon are the few features which can be varied to accommodate materials ranging from low-density finely divided materials to fibrous and sticky materials.
The Ribbon Blender is adaptable to batch or continuous mixing.
HEATING or COOLING JACKET as per process requirements.
CHOPPERS - Choppers can be provided as a Delumper or as a Fine Grinder.
Hinged Cover Dependable Discharge Outlet.- Manual lever or hand wheel operated slide gate valve swing-type flush mounting plug valve
Discharge - Hand wheel operated slide gate valve gates drop bottom seals and finishes
The PADDLE design is optional and normal applied where FRIABLE materials are being blended and when batches as small as 15% of the total capacity are going to be mixed in one blender.
Optional Scale hoppers are available
Constructed of SS 316 SS 304 and Carbon Steel.
Capacity - 25 Ltr. to 7500 Ltr.
Fast Easy Cleaning - The entire ribbon assembly is removable as a unit.
Shaft Seal - Three rows of packing of type compatible with product and application housed in a standard gland follower stuffing box assist in keeping dirt out and product in. Purged and lubricated seals as well as the mechanical seals are also available.
Simplified Drives - Typically units of sizes to 100 cu. ft (2.8 cu. m) and 15 H.P. drive are driven by a torque arm reducer with "V" belts and an integrally mounted motor.
Different Applications of Ribbon Blender

Abrasives and Adhesives
Agricultural Chemicals
Animal Feed
Chocolate Products
Cleaning Compounds
Cosmetics
Detergents and Soaps
Dyestuffs & Pigments
Explosives
Fertilizers and Pesticides
Food
Minerals
Pharmaceuticals
Resins
Sand & Cement Pre-mixes
Spices and Sugars
Water Treatment Chemicals
