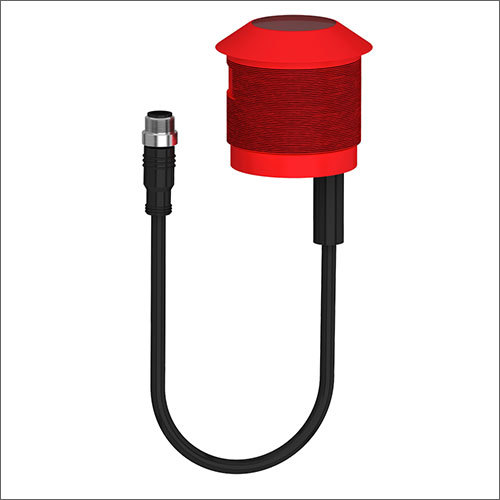

Rfid Tag Reader With 8-bit Outputs For Plc
Price: 18000.00 INR / Piece
(18000.00 INR + 0% GST)
Get Latest Price
1 Pack Contains :
1
Minimum Pack Size :
1
In Stock
Product Specifications
| Transmission Power | <100 mW (compliant with RFID regulations) |
| License Free | Yes |
| Interface | 8-bit binary parallel, optional serial communication |
| Mounting Type | Panel mount or DIN rail mount |
| Standard | ISO 14443A/ISO 15693/EM4100 (model dependent) |
| Frequency Band | 125 kHz (LF) / 13.56 MHz (HF) (model dependent) |
| Size | Approx. 110mm x 70mm x 25mm |
| Connectivity Type | Parallel output to PLC; optional RS232/RS485 |
| Operating Mode | Continuous read/triggered mode selectable |
| Antenna Type | Integrated PCB antenna |
| Technology | RFID (Radio Frequency Identification) |
| Special Features | 8-bit parallel binary outputs for direct PLC interfacing; robust read range; fast tag detection |
| Application | Industrial automation, asset tracking, access control, process monitoring, production line management |
| Power Supply | 24V DC (typical, compatible with standard PLC power rails) |
| Output Formats | 8-bit parallel binary output |
| Supply Ability | 100 Per Month |
| Delivery Time | 8 Week |
| Sample Policy | If order is confirmed we will reimburse the sample cost |
| Main Export Market(s) | Middle East, Asia |
| Main Domestic Market | All India |
| Certifications | CE certified |
| Stock Quantity | 5 |
| Price | 18000.00 INR (Approx.) |
| Price Type | fixed |
| Brand Name | COMITRONIC-BTi france |
| Packsize | 1 |
| Returnable | No |
| Currency | INR |
| Unit Type | Piece/Pieces |
| Mop | 1 |
| Product Unit | 1 Piece/Pieces |
| Moq | 1 |
| Minimum Ordered Packs | 1 |
| Minimum Order Quantity | 1 |
| GSTIN | 0% |
Product Overview
Key Features
RFID tag reader with 8-bit outputs for PLC
22.5mm DIN rail enclosure with removable terminals
Economy of cabling (8 outputs for 255 functions)
No programming
Life cycle: 20 years
Max activation distance: up to 45 mm
Contact: 8 x 200 m APNP for 8-bit format
Detection encoding: 16 million
Indicator: 8 LEDs indicating the pathways activated
Reset: no
Mounting: symmetrical DIN 35mm rail after DIN 50022
Mounting: IP 54 electrical enclosure
Material: PA6
Electrical connection: Maximum 14 AWG (2.08 mm)
Temperature: -15 C to +60 C
Marking: label + serial number for traceability
Option: badge nail, screw, plate screw, key chain, card ... etc.
