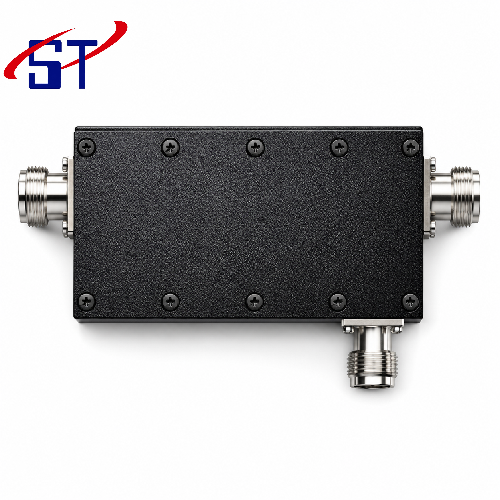

Rf 10db Directional Coupler - 200w Power Capacity, 800-2500mhz Frequency Range, Low Vswr 1.25:1max, Ip65 Rated, Compact Size, N-female Connector

Our industry gained specialize in developing and supplying a wide spectrum of RF 10DB Directional Coupler.

Place of Origin Anhui, China (Mainland)
Brand Name Setsail
Model Number YF-DC-825-30-NF
Product Name RF 10dB Directional Coupler
coupling 6/10/15/20/30dB
Frequency 800-2500MHz
Insertion Loss 0.35dB
VSWR 1.25:1max
Impedance 50 Ohm
RF Connector N-Female
Power Capacity 200Watt
Company Type Manufacturer
IP Grade IP60 or IP65
1.30dB Directional Coupler is just one of SETSAIL'S directional coupler products line.SETSAIL is capable of manufacturing and providing directional couplers,are available in
5dB,6dB,7dB,10dB,15dB,20dB,30dB and 40dB coupling values.Frequency:800-2500MHz,800-2700MHz,698-2700MHz,350-520MHz,350-1000MHz,350-2700MHz,140-150MHz.Custom designs are also available.
2.These units feature high directivity and low VSWR,are concervatively rated to ensure the most reliable and performance.The directional couplers on this page are unequalled in terms of size and performance.The volume of these coulpers make them ideally suited for applicatons involving high density packaging.
