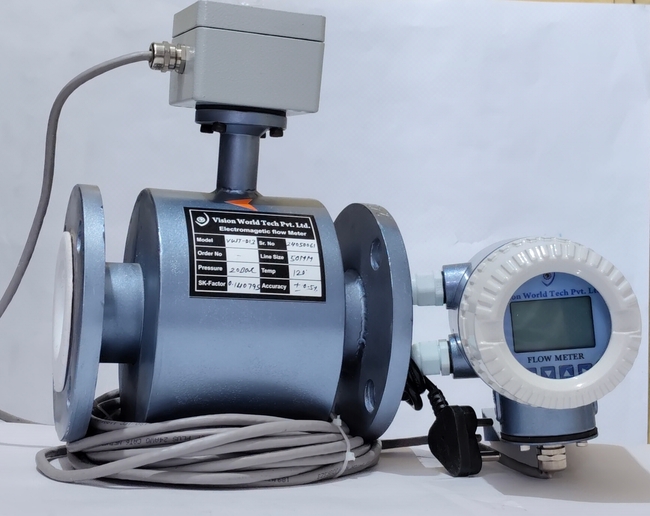

Remote Type Electromagnetic Flow Meter - Accuracy: 0.5 %
Price: 22420.00 INR / Piece
(19000.00 INR + 18% GST)
Get Latest Price
MRP:
22420.00 INR / Piece
Weight :
6.00 Kilogram
1 Pack Contains :
2
Minimum Pack Size :
1
In Stock
Product Specifications
| Housing Material | Aluminum Die Cast |
| Resolution | 0.001 m |
| Pressure Range | PN10 / PN16 Standard, Optional PN25 / PN40 |
| Stability | 0.1% |
| Wind Speed | Not Applicable L/s |
| Microphone | not applicable |
| Language | English (Optional Multi-language) |
| Acceleration Range | Not Applicable |
| Color | grey |
| Response Time | : 0.1 to 10 Seconds Seconds |
| Mounting | Inline / Flanged |
| Humidity % | 5% to 95% RH (Non-Condensing) |
| Frequency | 50/60 Hz Hertz (HZ) |
| Output | 4-20mA, Pulse, RS485 Modbus |
| Protection | ip 67-68 |
| Diameter | 15mm to 2000 Meter (m) |
| Capacity | Up to 100,000 m /hr m3/hr |
| Connecting Type | Flanged |
| Connector | Flanged Connection |
| Operating Temperature | -20 C to +120 C Celsius (oC) |
| Length | depend on size Inch (in) |
| Load Capacity | Not Applicable Kilograms (kg) |
| Current Range | 4-20 mA Milliamperes (mA) |
| Storage Temperature | -20 C to +70 C Celsius (oC) |
| Flow Rate | 0.06 m /hr to 100,000 m /hr (Pipe Size ke according) |
| Process Connection | ANSI / DIN / BS Flange |
| Temperature Range | -20 C to +120 C Celsius (oC) |
| Sensor Type | Electromagnetic Sensor |
| Dimension (L*W*H) | 25mm to 2000mm Millimeter (mm) |
| Input | 85-265V AC / 24V DC |
| Velocity Range | 0.1 to 10 m/s |
| Measuring Units | m /hr, LPM, LPH, GPM, Totalizer |
| Axis Type | Not Applicable |
| Equipment Type | Flow Measurement Instrument |
| Measurement Range | 0.06 m /hr to 100,000 m /hr (Size dependent |
| Connectivity Type | RS485 Modbus RTU, HART (Optional), GSM/GPRS (Optional) |
| Cut Size | not applicable |
| Sensitivity | 5 S/cm Conductivity |
| Signal Type | Analog & Digital |
| Model | VIFLOW - MAG - 013 |
| Application Media | Conductive Liquids, Water, Wastewater, Effluent |
| Usage | ETP / STP, Ground Water Monitroing. |
| Material | Stainless Steel |
| Size | Any |
| Height | 400 mm Millimeter (mm) |
| Power Supply | 220 |
| Power Consumption | 15 W Watt (W) |
| Product Type | Stainless Steel |
| Weight | depend on size Grams (g) |
| Accuracy | 0.5 % |
| Display Type | Digital Only |
| Width | 250mm Millimeter (mm) |
| Range | 0.1 m/s to 10 m/s |
| Supply Ability | 50 Per Week |
| Delivery Time | 1 Days |
| Main Domestic Market | All India |
| Certifications | ISO-Certified |
| Pkg Box Length | 250.00 inches |
| Price Type | fixed |
| Currency | INR |
| Returnable | No |
| Shipping Type | actual |
| Pkg Box Breadth | 300.00 inches |
| Mop | 1 |
| Unit Type | Piece/Pieces |
| Weight | 6.00 Kilogram |
| Color | grey |
| Packsize | 2 |
| Brand Name | Vision |
| GSTIN | 18% |
| Moq | 1 |
| Price | 19000.00 INR (Approx.) |
| Pkg Box Height | 400.00 inches |
| MRP | 22420.00 INR |
| Stock Quantity | 5 |
| Minimum Ordered Packs | 1 |
| Minimum Order Quantity | 1 |
