Rectifier Circuits (Half Wave, Full Wave & Bridge Rectifier) - Application: Engineering Electronics Instruments
Price: 1400.00 INR / Piece
(1400.0 INR + 0% GST)
Get Latest Price
In Stock
Product Specifications
| Operating Temperature | 0C to 50C |
| Thermal Conductivity | Standard, depends on PCB heat dissipation |
| Usage | ENGINEERING ELECTRONICS INSTRUMENTS |
| Color | Multi-color components on PCB |
| Features | Demonstrates Half wave, Full wave, and Bridge rectification; Replaceable components; Safe for educational use |
| Input | AC Voltage (via transformer or direct AC source) |
| Power Source | Mains AC supply |
| Interface | Banana socket/binding post terminals for external connections |
| Output | Pulsating DC voltage |
| Display Type | Other, Not applicable (external voltmeter/ammeter used) |
| Response Time | Instantaneous upon AC supply input |
| Components | Diodes, Transformer, Resistor, Capacitor, PCB, binding posts |
| Power Supply | AC main supply, typically 230V AC input |
| Product Type | RECTIFIER CIRCUITS (HALF WAVE, FULL WAVE & BRIDGE RECTIFIER) |
| Application | ENGINEERING ELECTRONICS INSTRUMENTS |
| Rated Voltage | 6V/12V/24V (depends on configuration) |
| Supply Voltage | 230V AC (for transformers), 0-24V AC selectable |
| Size | Standard trainer kit size |
| Dimension (L*W*H) | Approx. 200mm x 150mm x 60mm |
| Function | Converts AC to DC voltage |
| Weight | Approx. 0.5 kg |
| Capacity | Single-phase AC to DC conversion |
| Thickness | Standard PCB thickness (approx. 1.6mm) |
| Current Rating | Up to 1A (dependent on configuration) |
| Frequency | 50 Hz input AC |
| Payment Terms | Cash on Delivery (COD), Cash Advance (CA), Cheque, Telegraphic Transfer (T/T), Letter of Credit (L/C) |
| Packaging Details | Carton Box, Export Quality also Available |
| Main Export Market(s) | Asia, Middle East, Africa |
| Main Domestic Market | All India |
| Certifications | ISO 9001, 14001, CE |
| Returnable | No |
| Currency | INR |
| Color | Multi-color components on PCB |
| Brand Name | EDUTEK |
| Price Type | fixed |
| GSTIN | 0% |
Product Overview
Key Features

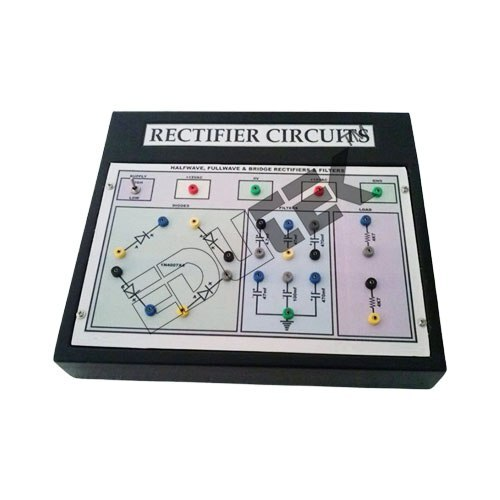

RECTIFIER CIRCUITS (HALF WAVE, FULL WAVE & BRIDGE RECTIFIER)
Objective:
To demonstrate the characteristics of half wave rectifier, full wave and bridge wave rectifier.
To demonstrate how the capacitor size affects the ripple at the output.
To construct the voltage doublers.
Technical Specification:
Built in power supply: 15V- 0-15V AC
Mains: 230V AC
Dimension: 27CMS X 17CMS [metal cabinet]
Weight: 2Kg Approx.
