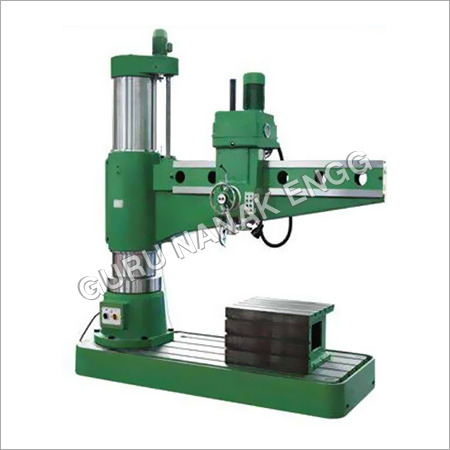

Radial Drill - High Precision Steel Construction, Drilling Capacity Of 40-75 Mm In Mild Steel And 50-85 Mm In Cast Iron, Versatile Applications For Engineering And Manufacturing Industries

Model

ADM40A

ADM40B

ADM50A

ADM59B

ADM50C

ADM65B

ADM75

Drilling capacity in
solid mild street

40 mm

40 mm

50 mm

50 mm

50 mm

65 mm

75 mm

Drilling Capacity in
cast iron

50 mm

50 mm

60 mm

60 mm

60 mm

75 mm

85 mm

Dia. of Column

A

230

255

255

310

310

355

405

Drilling Radius minimum

B

550

375

525

450

425

650

675

Drilling Radius maximum

C

1050

950

1125

1100

1325

1600

1950

Machine height from
floor

D

2420

2420

2760

2760

2760

3170

3320

Distance from spindle
nose to top of the base plate minimum
Spindle in downward
position

E

50

100

75

100

100

100

100

Distance from spindloe
nose to top of the base plate minimum
Spindle in upward
position

F

1000

1150

1200

1300

1300

1600

1750

Drilling depth

G

180

180

225

225

225

325

325

Working surface of base
plate

885 x 545

975 x 655

1150 x 655

1460x845

1735x940

Dimensions of Base

RxSxT

1470x705x180

1645x835x200

1755x835x200

2370x1015x210

2640x1110x210

Effective area of box
Table

LxKxM

330x330x330

550x400x400

600x450x450

600x450x450

600x450x450

No. of spindle speeds &
Range (RPM. x Steps)

45 - 660 x 6 steps

40 - 790 x 9 steps

25-930
12 steps

20-740
12 steps

No. of spindle feeds &
Range (Per Rev. x steps)

0.095-0.021
3 steps

0.080-0.180
3 steps

0.10-1.25
6 steps

Taper spindle nose
socket

MT4

MT 4

MT 5

MT 5

MT 5

MT 5

MT 5

Main Motor

2 HP

2 HP

3 HP

3 HP

3 HP

5 HP

7.5 HP

Elevating Motor

1 HP

1 HP

2 HP

2 HP

2 HP

3 HP

5 HP

Total weight of machine
(approx.) kgs.

1700 kg.

2000 kg.

2500 kg.

3000 kg.

3200 kg.

4800 kg.

6500 kg.
