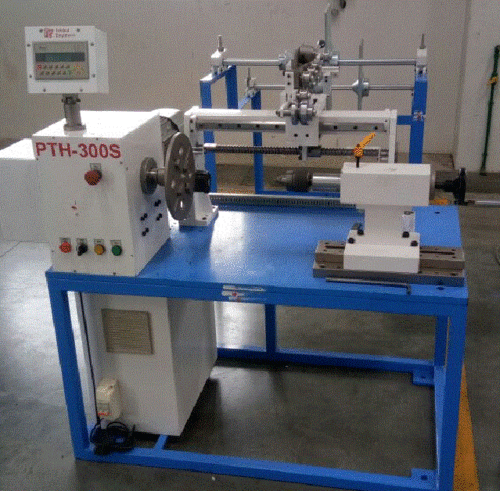

Automatic Programmable Transformer Coil Winding Machine

Automatic Programmable Transformer Coil Winding Machine

165000 INR
Minimum Order Quantity :
1 Set/Sets
Control System
PLC Control
Dimension(L*W*H)
1200 *1500*1000 Inch (in)
View more details
TRISHUL WINDING SOLUTIONS PRIVATE LIMITED
Mr Basavaraju G E
Bengaluru, Karnataka ...More B No. - 376, Konanakunte Cross, Konanakunte Next to RMS international School, Bengaluru, Karnataka, 560062, India

Open Map

View Contact Details
Product Details
Control SystemPLC Control
Dimension(L*W*H)1200 *1500*1000 Inch (in)
Voltage230 Volt (v)
Weight350 Kilograms (kg)
ColorSky Blue/ Navy Blue
Warranty1 Year
MaterialIron
Automatic GradeAutomatic
Product TypeAutomatic PROGRAMMABLE Transformer Coil Winding Machine
ComputerizedYes
Processing TypeAgainst Orders
Power3 Phase Volt (v)
Sample AvailableYes
Delivery Time12-15 Week
Supply Ability1 Per Month
Main Domestic MarketAll India
CertificationsISO-9001:2015
Main Export Market(s)Eastern Europe, Western Europe, Australia, Central America, North America, Asia, Africa, Middle East
Payment TermsLetter of Credit (L/C), Cash Against Delivery (CAD), Letter of Credit at Sight (Sight L/C), Days after Acceptance (DA), Cash in Advance (CID), Cash on Delivery (COD), Cash Advance (CA), Delivery Point (DP), Cheque
Sample PolicyFree samples are available
FOB PortBangalore
Offered ByTRISHUL WINDING SOLUTIONS PRIVATE LIMITED
Product Added OnJul 03, 2020
Last Updated OnJul 11, 2020
BrandTRISHUL
Product Description

This machine is suitable for inverter and stabilizer coil windings
Swing Dia- 300 mm Max
Coil Shape: Round/Square/Rectangle/ Oval
Spindle Drive: Geared Induction Motor
Spindle Speed-30-300 RPM
Coil Weight: Max 15 KG
Traverse
Drive Type: AC Servo
Traverse Width: Max-120 mm
Traverse Speed: 0-15 Mts/Min
Traverse Pitch: 0.009-45 mm
CONDUCTORS
Strip: Strip Size: CU- Width Min-5mm Max-16mm
AL Thickness-Min-2mm Max-6mm

AL- Width Min-5mm Max-12mm
Thickness-Min-2mm Max-5mm
WIRE WIRE DIAMETER
CU- MIN-0.4 MM MAX-2.5 MM
AL- MIN-0.4 MM MAX-3 MM
TENSIONER ARRANGEMENT- PNEUMATIC DISC BRAKE
NO. OF CONDUCTOR SPOOLS: 2
SPOOL SIZE: ID-40 MM, OD-500MM, WIDTH- 280 MM

Company Details

https://drive.google.com/file/d/1OPRrIfJrAbDR7Zj4K06r7Ynzo846PR_X/view?usp=sharing https://drive.google.com/file/d/1f1kzgO41chQgrezBT5EE7L_hnXcjoCcj/view?usp=sharing https://drive.google.com/file/d/1hfrsTlF_XO_NTh8OSFHduwOwgqwhRUDn/view?usp=sharing https://drive.google.com/file/d/1OPRrIfJrAbDR7Zj4K06r7Ynzo846PR_X/view?usp=sharing https://drive.google.com/file/d/0B3dzBI6ozBzASWpoRHI5T3l5a1U/view?usp=sharing

  • BUSINESS TYPE Exporter, Manufacturer, Supplier
  • EMPLOYEE COUNT 100
  • ESTABLISHMENT 1992
  • ANNUAL TURNOVER Rs 100 Crores
  • CERTIFICATION ISO- 9001: 2015, CE, CSA, TUV
  • WORKING DAYS Monday To Saturday
