Profile Projector - Vertical Series 300/400/600mm Screens, 15 Kg/hr Capacity, Manual Control, 140 Kg Weight, Dimensional Measuring

Vertical Series specifications

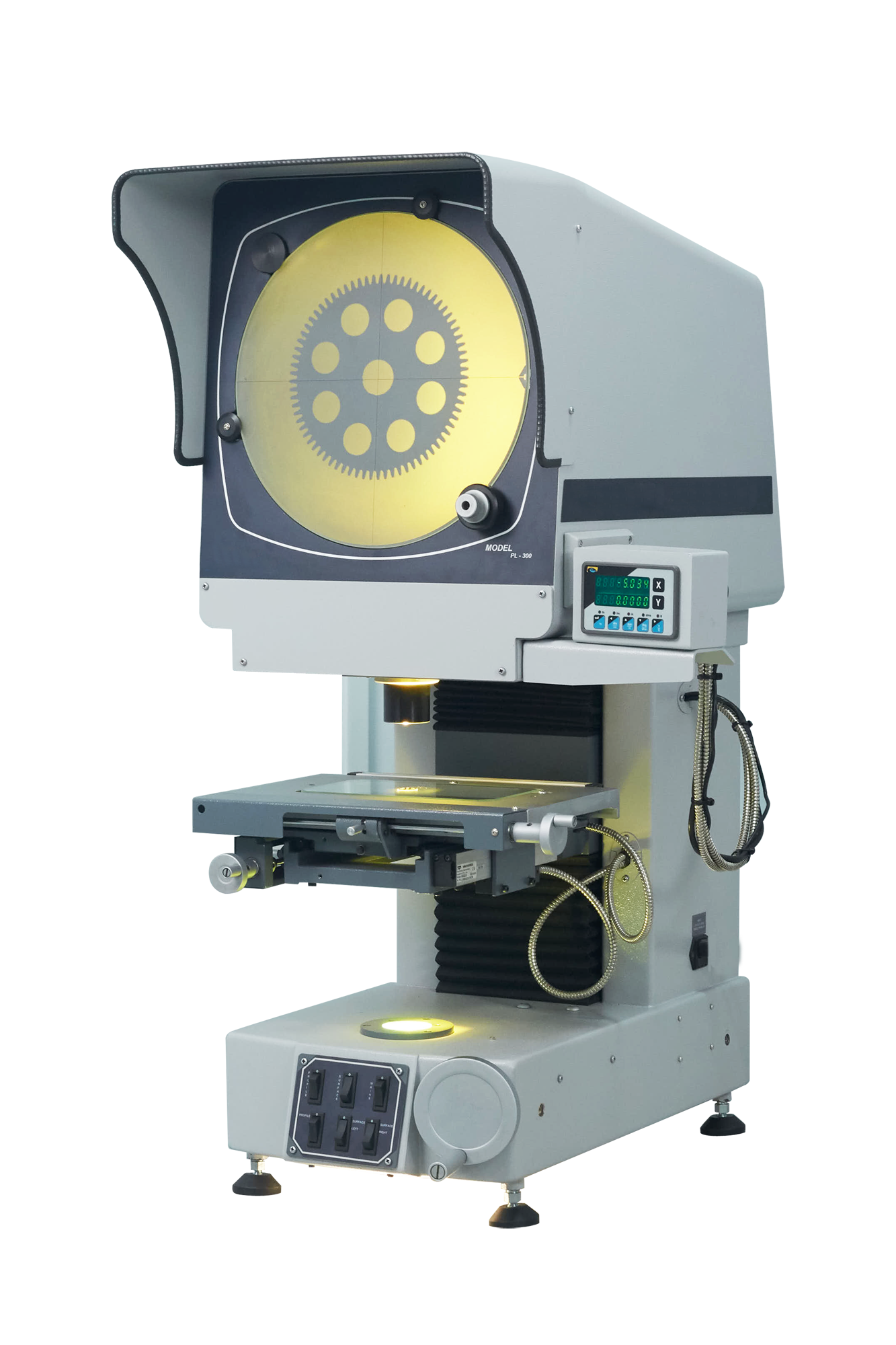

Vertical light path Projector with 300,400,600mm screen, Light duty Glass work-stage Suitable for Plastic, Rubber & Small machined / turned part.

Specification

Specifications

PP300 VT

PP 400VT

PP 600VF

Screen: fine grain ground glass

300 mm dia.

400 mm dia.

600 mm dia.

Lens axis



Vertical

Electronic protractor

Switchable degree/decimal, 1 minute/0.01 degree. Display range: +/-360 degree, abs/inc, zero setting

Magnifications



3 station turret for safety, ease of use

Standard

10x

Optional

20x,25x, 50x

20x,25x, 50x,100x

Accuracy

0.05% on profile and surface

Work stage table top area

380 x 280mm

380 x 280mm

500 x 350mm

Measuring range x/y axis

200 x 150mm

250 x 150mm

400 x 250mm

Accuracy

+/- (2+l/100)m

Measuring system

Built in glass scales

X y digital read out functions

Zero setting, inch/mm, abs/inc, measurement of x, y, angles, lines, distances, circles, skew
