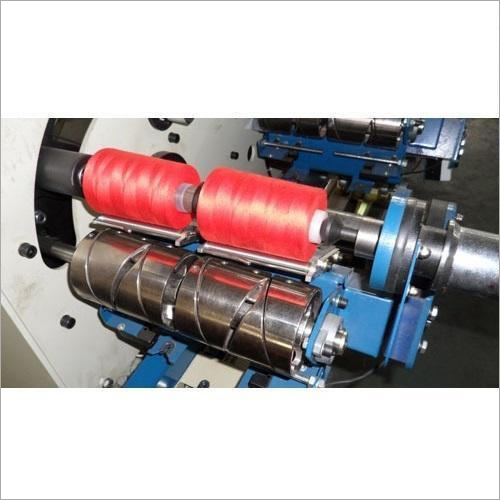

Precision Bobbin Winding Machine Ts008m

We are based in Taixing, Jiangsu, China involved in manufacturing of Precision Bobbin Winding Machine TS008M for After Dyeing rewinding yarns using or thread rewinding from one bobbin to another bobbin using, suit for winding like Fiber yarns, Cotton yarns, FDY, Polyester yarns and etc, and it can take up with Conical Cone or Tube bobbins. It has the feature of High Efficiency and well take-up finished shape, can alleviate the intensity of labour for next processing work.

Equipments:
Inverter(MITSUBISHI Brand), Drum(Superplastic Alloy), Motor(Ningbo), Controller(HangZhou)
Parameters:
Drive: every spindle per motor
Winding speed: 300-1000 M/min
Has function of auto stop when yarn break.
Package Diaa 250mm; Take-up Traverse: 150mm;
Each spindle with length counter;
Advanced control panel;
Bobbin type:
6a (170mm)
Layout:
Double-side, can be 12-96 spindles
Power Supply
Three phases 380V 50/60HZ
Driving
Every spindle per motor
Power Consumption
0.09KW/spindle
Take-up package
Tube Bobbin (0A ) / Cone 4A 20, 5A 57, 9A 15
Yarn tension and waxing device
Every spindle has a yarn tension and waxing device
Auto Stop Device
Each spindle install auto stop device
Electronic Anti-Stack
Inverter control
Cleaner device
Every spindle has a Mechanical Knife yarn cleaner
Electronic Yarn Cleaner
Optional installed
Air Splicer
Optional installed
Blower cleaner
Optional installed
Lighting System
Optional installed
Dimensions
L 13700 x W 1050 x H 1650 mm
