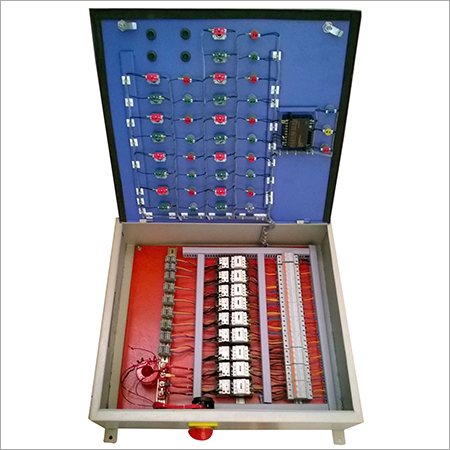

Power Control Centre - Crca Sheet 1.63mm To 3.15mm | Ip54 Protection, High Fault Level Design, Dust & Vermin Proof

With best market reputation, we are engaged as manufacturer, supplier and exporter of Power Control Centers in Ambala Cantt, Haryana, India.
Power Control Centre is a main power control panel which consists of feeder breakers and supply breakers, monitoring devices, control devices, switching devices, protection devices, instrumentation devices, etc. It is also known as Main Switchboard. It is mainly installed near power sources hence its fault level is high. It is designed to suit fault level of 50KA or 70 KA for 1 sec. Bus Bar system in Power Control Centers are designed to suit the fault level as well as temperature rise to 40A c above ambient. Ample space is provided for cable termination. Various protections viz short circuit, overload, earth fault, under voltage etc are provided to protect source and equipment.

Design-the panel is designed fully dust & vermin proof considering all technical parameters, easy to use & maintain by highly competent design engineers.
PROTECTION CLASS-IP42/IP 54/IP 55
SHEET-CRCA SHEET OF 1.63MM/2.02MM/2.5MM/3.15MM as required. Modular construction with wide choice of compartment sizes. As standard 2.02MM Thick Sheet is used.
Surface coating-electrostatically applied epoxy polyester powder coating is done after proper seven tank chemical treatment of minimum 80microns thickness with siemens grey colour ral 7032 as standard.
