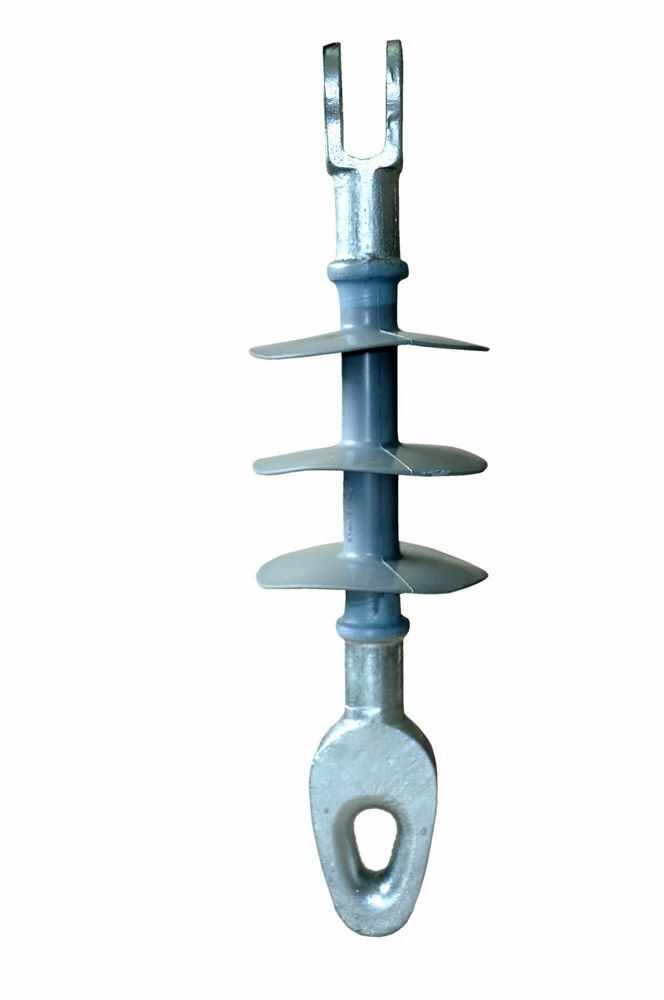

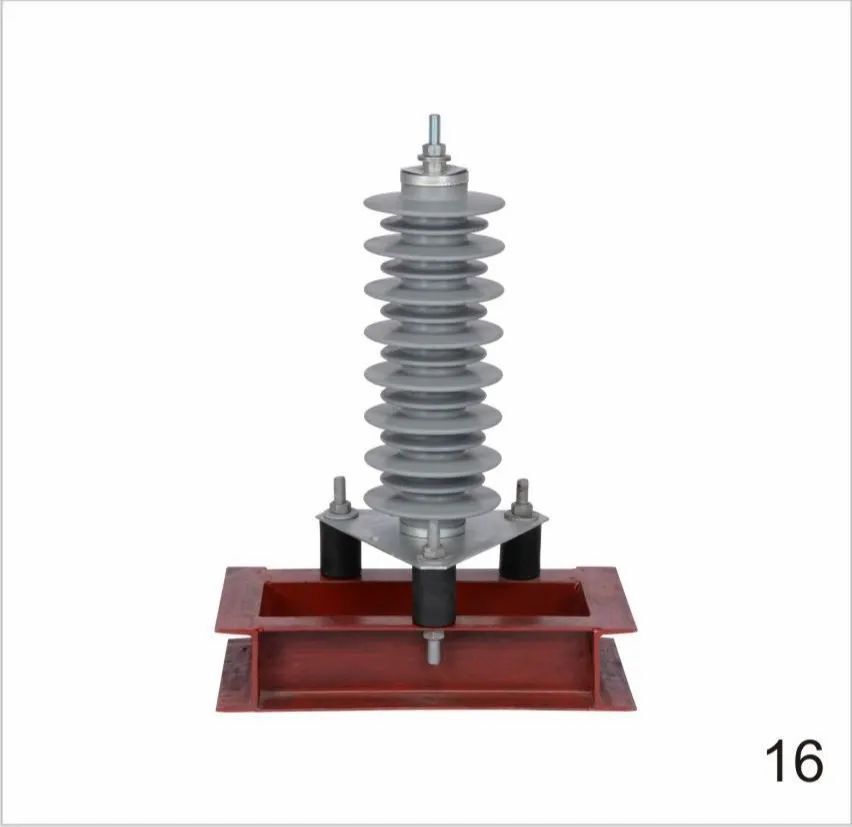

Polymer Insulator - Design: Modern

Polymer insulators have several key specifications that make them suitable for various applications.

Key Features:

- Lightweight: Polymer insulators are significantly lighter than ceramic insulators, making them easier to transport and install.
- High Strength: They have high mechanical strength, with some types having a specified mechanical load (SML) rating of up to 70kN or more.
- Water Repellency: Polymer insulators have hydrophobic properties, which help repel water and prevent moisture accumulation on the surface.
- UV Stability: They are designed to withstand ultraviolet (UV) radiation, ensuring durability in outdoor applications.
- Resistance to Contamination: Polymer insulators have a highly protected creepage design, which enhances pollution withstand capability .

Materials:

- Silicone Rubber: A common material used for polymer insulators due to its excellent hydrophobic properties and weather resistance.
- Ethylene Propylene Diene Monomer (EPDM): Another material used for polymer insulators, known for its good electrical insulation properties.
- Polymer Compounds: Various polymer compounds are used to enhance the performance and durability of insulators .

Applications:

- Overhead Distribution Lines: Polymer insulators are ideal for use in overhead distribution lines, spacer cable, and tree wire applications.
- Industrial Applications: They are used in various industrial settings, including electrical distribution systems and substations.
- Railway Applications: Polymer insulators are used in railway electrification systems, providing reliable insulation and mechanical support .

Specifications:

- Voltage Rating: Polymer insulators are available in various voltage ratings, including 11kV, 22kV, 25kV, and 33kV.
- Insulation Resistance: They typically have high insulation resistance, often greater than 100G.
