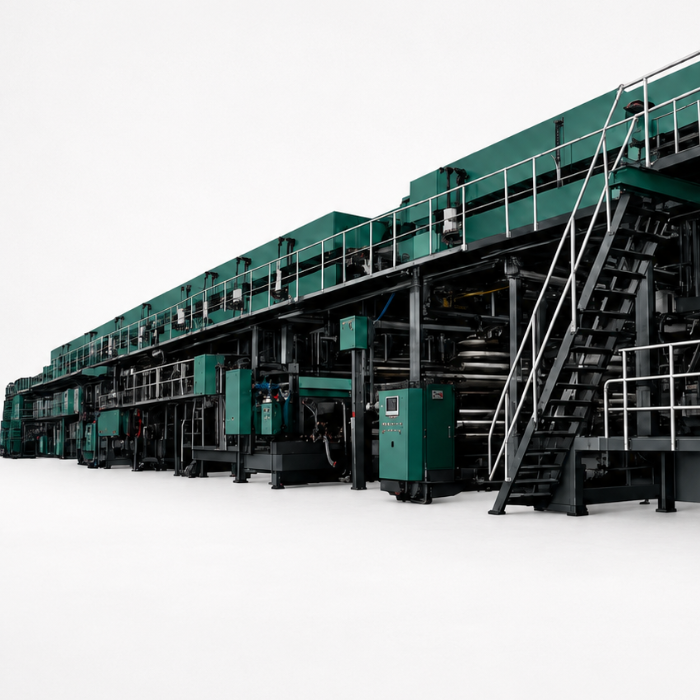

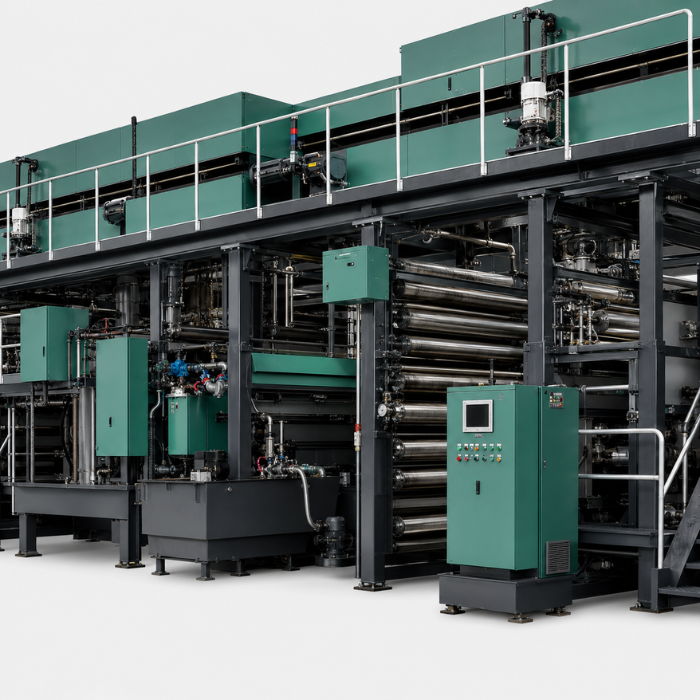

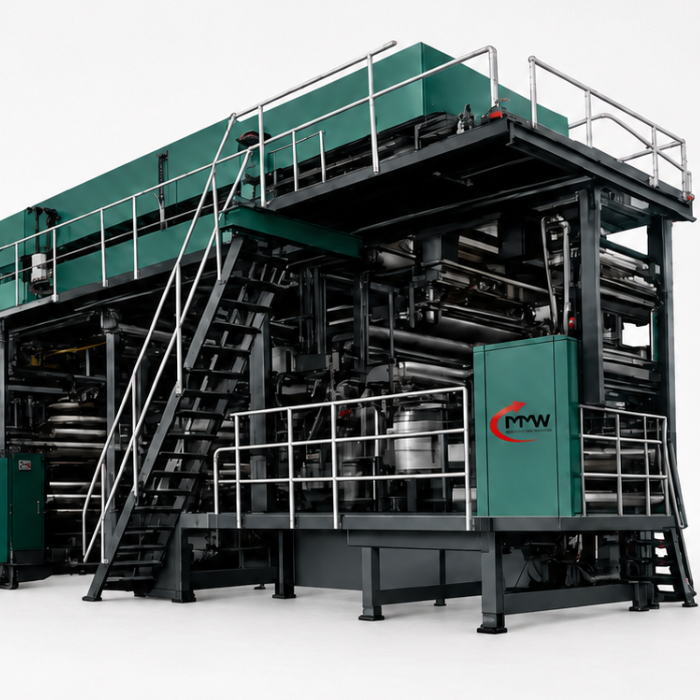

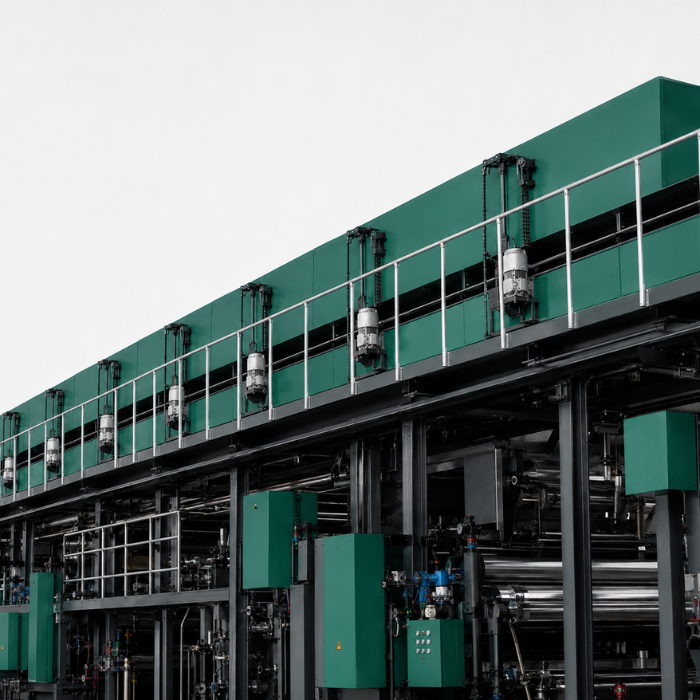

Polyester Dg Lacquer Coating Machine - Coating Head: Gravure Roller
Price: 4130000.00 INR / Piece
(3500000.00 INR + 18% GST)
Get Latest Price
MRP:
4130000.00 INR / Piece
Weight :
15000.00 Kilogram
1 Pack Contains :
1
Minimum Pack Size :
1
In Stock
Product Specifications
| Power Requirement | 180 280 kW |
| Max. Sheet Area | Up to 1600 mm Working Width |
| Machine Speed | Up to 150 m/m |
| Min. Sheet Area | As per Customer Requirement |
| Coating Type | Polyester Film Lacquer Coating |
| Registration | Automatic Web Alignment |
| Feeding Type | Continuous Roll Feeding |
| Sheet Thickness | 12 100 Microns |
| Coating Format | Roll to Roll |
| Coating Transfer Method | Direct Gravure Coating |
| Varnish Type | Clear, Coloured, Protective or Release Lacquer |
| Max. Coating Area | Full Web Width |
| Color | Green, Black or Customized |
| Product Type | Polyester DG Lacquer Coating Machine |
| General Use | Applying Lacquer and Functional Coatings on Polyester or PET Film |
| Material | Stainless Steel |
| Type | Adhesive Coating Machine, Other |
| Weight (kg) | 15000 Kilograms (kg) |
| Coating Speed | Up to 150 m/m |
| Coating Head | Gravure Roller |
| Coating Width | Up to 1600 Millimeter (mm) |
| Coating Material | Other |
| Computerized | Yes |
| Automatic | Yes |
| Control System | PLC Control |
| Power Source | Electric |
| Power Consumption | 180 280 Kilowatt (kW) |
| Heating System | Hot Air |
| Drive Type | Electric |
| Voltage | 440v Volt (v) |
| Humidification System | No |
| Glue Type | Water Based |
| Rewinder Type | Duplex Rewinder |
| Unwinder Type | Duplex Unwinder |
| Rewinding Width | Up to 1600 Millimeter (mm) |
| Unwinding Width | Up to 1600 Millimeter (mm) |
| Dimension (L*W*H) | 2400 550 550 Centimeter (cm) |
| Feature | Low Energy Consumption, High Speed, High Precision, Coating |
| Warranty | 1 Year |
| FOB Port | ICD Tughlakabad, Delhi |
| Payment Terms | Cash on Delivery (COD), Cheque, Others |
| Supply Ability | 2 Per Month |
| Delivery Time | 90 Days |
| Sample Available | No |
| Sample Policy | Contact us for information regarding our sample policy |
| Packaging Details | The machine is covered with waterproof protective wrapping. Gravure coating heads, engraved cylinders, doctor-blade assemblies, precision rollers, drying chambers, unwinders, rewinders, motors, blowers and electrical panels are properly protected. Major machine sections are securely fastened on wooden or steel supports for safe transportation by road or sea. |
| Main Export Market(s) | Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East |
| Main Domestic Market | All India |
| Certifications | ISO 9001:2015 Certified, CE Certified Standard Machinery |
| Returnable | No |
| Shipping Type | actual |
| Product Unit | 1 Piece/Pieces |
| Mop | 1 |
| Pkg Box Height | 550.00 cm |
| Pkg Box Breadth | 550.00 cm |
| Pkg Box Length | 2400.00 cm |
| Color | Green, Black or Customized |
| GSTIN | 18% |
| Price Type | fixed |
| Currency | INR |
| Stock Quantity | 5 |
| Price | 3500000.00 INR (Approx.) |
| Weight | 15000.00 Kilogram |
| MRP | 4130000.00 INR |
| Unit Type | Piece/Pieces |
| Packsize | 1 |
| Moq | 1 |
| Brand Name | Mohindra Mechanical Works |
| Minimum Ordered Packs | 1 |
| Minimum Order Quantity | 1 |
Company Details
Business Type
Exporter, Manufacturer, Supplier
Employee Count
10
Establishment
1996
Working Days
Monday To Sunday
GST NO
07AFOPB9017R1ZU
