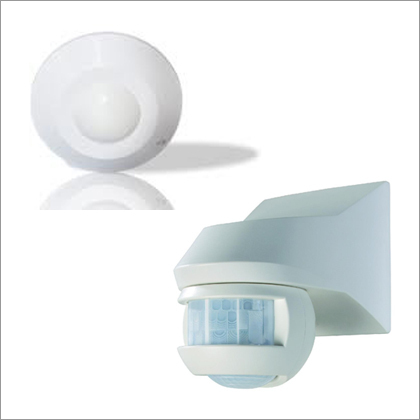

Pir Motion Sensor - 220-240 Vac, 360° Detection, Adjustable Delay 5-480 Sec | Energy Saving, Automatic Lighting Control

We are engaged in manufacturing, exporting and supplying excellent quality PIR Motion Sensor to our valuable clients. BuildTrack Motion Sensor is intended for convenience and energy savings in areas such as stairwells, passageways, pantries, kitchens, equipment rooms, where lights need to be turned ON based on the movement. The Motion Sensor turns the lights ON when movement is sensed and turns it OFF (with brief delay) when no motion is sensed. It is directly connected to the load it controls, typically lighting but can operate other electrical devices as well if needed. Power source : 220- 240 VAC Power Frequency: 50- 60 Hz Response time delay : 5 - 480sec (adjustable by provided mechanism) Working temperature : 15 -45A C Working humidity: <93 %H Rated Load: 500 Watts Power consumption : 5mA (static), 7mA (on load) Detection Distance :2 -4metres from the center of the sensor Recommended installation height : 2- 4metres Installation Mode : Ceiling Mounted Detection Range : 360A in plan view, 120A in elevation view.
