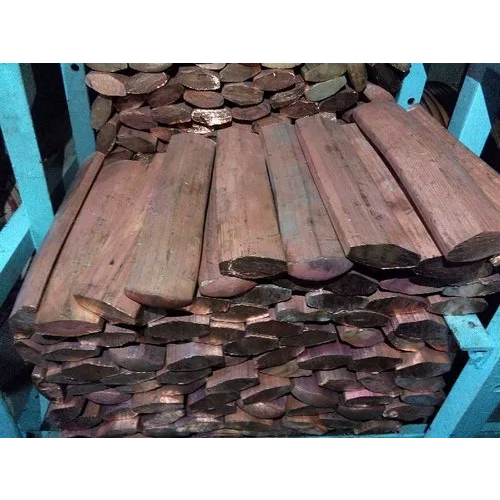

Phosphor Copper Anode For Pcb

The printed circuit board is essentially the most important component part of all electronic instruments. In addition, high quality copper anode is a key factor in the manufacture of high-grade PCBs. Therefore, we have introduced a whole set of advanced production equipment with technology transferring that meets American Federal Copper Development Association standards.

After strict testing, our copper anode has fine grain structure, even distribution, and is free of gas and residues. Product quality matches or exceeds American Commonwealth Copper Development Bureau standards CDA, C812, C120, and C122.

PCB industry grade composition (%):
Cu: 99.94min
P: 0.0524
Pb: 0.0006 max.
Fe: 0.0005 max.
Bi: 0.0005 max.
Sb: 0.0005 max.
As: 0.0005 max.
Sn: 0.0005 max.
Ni: 0.0001 max.
Zn: 0.0005 max.
Si: 0.0010 max.
Mn: 0.0021 max.
Al: 0.0005 max.
S: 0.0011 max.

Plating industry grade composition (%):
Cu: 99.93min
P: 0.0517
Pb: 0.0038 max.
Fe: 0.0021 max.
Bi: 0.0005 max.
Sb: 0.0005 max.
As: 0.0005 max.
Sn: 0.0024 max.
Ni: 0.0001 max.
Zn: 0.0031 max.
Si: 0.0010 max.
Mn: 0.0023 max.
Al: 0.0005 max.
S: 0.0013 max.
