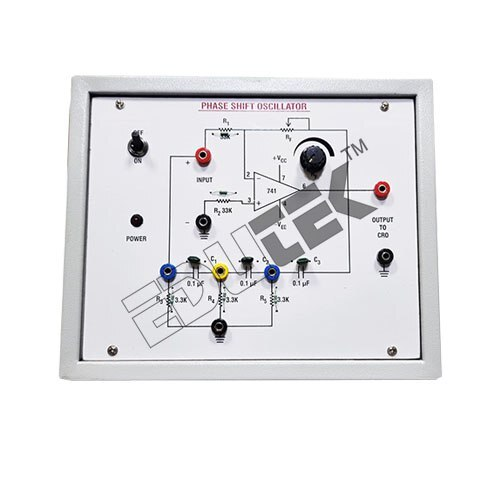

Phase Shift Oscillator Using Op Amp - Application: Engineering Electronics Instruments
Price: 1200.00 INR / Piece
(1200.0 INR + 0% GST)
Get Latest Price
In Stock
Product Specifications
| Power Supply | External DC supply |
| Color | Green PCB with assorted component colors |
| Display Type | Other, N/A (no display) |
| Usage | ENGINEERING ELECTRONICS INSTRUMENTS |
| Interface | Banana/binding post terminals for signal output |
| Charging Voltage | N/A (Not battery-operated) |
| Output | Sine waveform (Analog Signal) |
| Input | Not required (self-oscillating) |
| Power Source | External DC adapter |
| Operating Temperature | 0C to 50C |
| Resolution | Depends on external measurement device |
| Components | Op-amp IC (e.g. IC741), resistors, capacitors, connectors, PCB |
| Response Time | Instantaneous oscillation on powering |
| Features | Sine wave oscillator, stable frequency, compact, easy for experiment |
| Product Type | PHASE SHIFT OSCILLATOR USING OP AMP |
| Application | ENGINEERING ELECTRONICS INSTRUMENTS |
| Rated Voltage | 12V DC |
| Supply Voltage | 12V DC |
| Size | Standard PCB trainer size |
| Dimension (L*W*H) | Approx. 135mm x 90mm x 25mm |
| Function | Generates sine waveform using phase shift oscillator circuit |
| Weight | Approx. 100g |
| Capacity | Single channel output |
| Current Rating | ~30-50mA consumption |
| Thickness | PCB thickness 1.6mm |
| Frequency | 1 kHz (typical, adjustable via RC values) |
| Payment Terms | Cash on Delivery (COD), Cash Advance (CA), Cheque, Telegraphic Transfer (T/T), Letter of Credit (L/C) |
| Packaging Details | Carton Box, Export Quality also Available |
| Main Export Market(s) | Asia, Middle East, Africa |
| Main Domestic Market | All India |
| Certifications | ISO 9001, 14001, CE |
| Color | Green PCB with assorted component colors |
| GSTIN | 0% |
Product Overview
Key Features
PHASE SHIFT OSCILLATOR USING OP AMP
