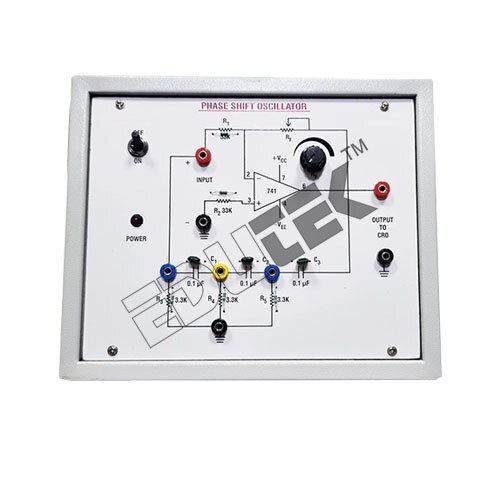

Phase Shift Oscillator - Application: Engineering Electronics Instruments
Price: 1200.00 INR / Piece
(1200.0 INR + 0% GST)
Get Latest Price
In Stock
Product Specifications
| Response Time | Immediate after power-up |
| Output | Sinusoidal waveform output |
| Resolution | Analog output, not digitized |
| Features | Stable frequency output, compact size, suitable for lab and R&D use |
| Interface | Pin connectors for input/output |
| Power Supply | External DC supply |
| Thermal Conductivity | Standard for epoxy FR4 PCB |
| Input | DC power input |
| Usage | ENGINEERING ELECTRONICS INSTRUMENTS |
| Display Type | Other, No display |
| Color | Blue PCB with silver/white components |
| Operating Temperature | 0C to 50C |
| IP Rating | Not rated (open PCB) |
| Components | Transistors, resistors, capacitors, connectors, PCB |
| Power Source | External DC adapter |
| Product Type | PHASE SHIFT OSCILLATOR |
| Application | ENGINEERING ELECTRONICS INSTRUMENTS |
| Rated Voltage | 5V DC |
| Supply Voltage | 5V DC nominal |
| Size | Standard small-sized PCB module |
| Dimension (L*W*H) | Approx. 70 mm x 40 mm x 18 mm |
| Function | Generates sinusoidal output signals by creating a phase shift through RC networks. |
| Weight | Approx. 50 g |
| Current Rating | <100 mA |
| Thickness | Approx. 1.6 mm (PCB) |
| Capacity | Single channel output |
| Frequency | Approx. 1 kHz (adjustable within RC limits) |
| Payment Terms | Cash on Delivery (COD), Cash Advance (CA), Cheque, Telegraphic Transfer (T/T), Letter of Credit (L/C) |
| Packaging Details | Carton Box, Export Quality also Available |
| Main Export Market(s) | Asia, Middle East, Africa |
| Main Domestic Market | All India |
| Color | Blue PCB with silver/white components |
| GSTIN | 0% |
Product Overview
Key Features
PHASE SHIFT OSCILLATOR
Company Details
Manufacturer and Exporter of all type engineering lab equipment, civil engineering lab equipment, science lab equipment, soil testing lab equipment, concrete Testing Lab Equipment, Vocational Training Equipment, Teaching lab equipment, Pharmacy Lab Equipment, Mechanical Lab for engineering college, fluid mechanic lab for engineering students, etc
Business Type
Exporter, Manufacturer, Supplier
Employee Count
25
Establishment
1973
Working Days
Monday To Saturday
GST NO
06AEWPJ6896D1ZU
Certification
AN ISO 9001:2008
