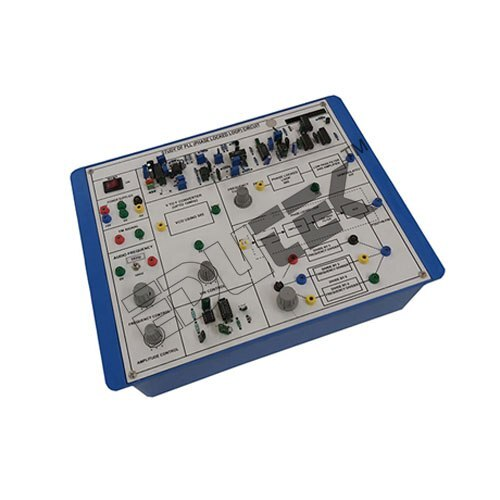

Phase Locked Loop - Application: Engineering Electronics Instruments
Price: 1200.00 INR / Piece
(1200.00 INR + 0% GST)
Get Latest Price
1 Pack Contains :
1
Minimum Pack Size :
1
In Stock
Product Specifications
| Usage | ENGINEERING ELECTRONICS INSTRUMENTS |
| Power Source | External DC Adapter |
| Operating Temperature | 0C to 50C |
| Interface | Test Points, Screw Terminals |
| Thermal Conductivity | Standard PCB material |
| IP Rating | Not Rated |
| Features | Demonstrates Phase Lock Function, Test Points Provided, Robust PCB |
| Components | IC 565/PLL IC, Resistors, Capacitors, Switches |
| Output | Frequency Synthesized Output Signal |
| Color | Green |
| Power Supply | 12V DC External Adapter |
| Input | Waveform Input Signal |
| Response Time | Instantaneous (Electronics) |
| Product Type | PHASE LOCKED LOOP |
| Application | ENGINEERING ELECTRONICS INSTRUMENTS |
| Rated Voltage | 12V DC |
| Supply Voltage | 12V DC |
| Size | Standard Breadboard Compatible |
| Dimension (L*W*H) | 130mm x 105mm x 30mm |
| Function | PHASE LOCKED LOOP |
| Weight | Approx 120g |
| Current Rating | 100mA |
| Capacity | Single Channel |
| Thickness | 1.6mm PCB |
| Frequency | 1Hz to 1MHz (adjustable) |
| Payment Terms | Cash on Delivery (COD), Cash Advance (CA), Cheque, Telegraphic Transfer (T/T), Letter of Credit (L/C) |
| Packaging Details | Carton Box, Export Quality also Available |
| Main Export Market(s) | Asia, Middle East, Africa |
| Main Domestic Market | All India |
| Certifications | ISO 9001, 14001, CE |
| Currency | INR |
| Brand Name | EDUTEK |
| Returnable | No |
| Moq | 1 |
| Mop | 1 |
| Product Unit | 1 Piece/Pieces |
| Price | 1200.00 INR (Approx.) |
| Unit Type | Piece/Pieces |
| Packsize | 1 |
| Stock Quantity | 5 |
| Price Type | fixed |
| Color | Green |
| Minimum Order Quantity | 1 |
| Minimum Ordered Packs | 1 |
| GSTIN | 0% |
Product Overview
Key Features
PHASE LOCKED LOOP
Study of PLL
A.F. Generator 0-10KHz Variable Amplitude of 5Vp-p
On Board Modulating Signal Oscillator 0-10KHz
Carrier generator Using 8038 IC 1-10KHz
Power Supply:
Fixed DC Power Supplies +12V DC, 250mA
Fixed DC Power Supplies +5V DC, 250mA Operated on Mains power 230V, 50Hz +10%
Components are mounted on the panels:
IC
Capacitors
Resistors
Diode
