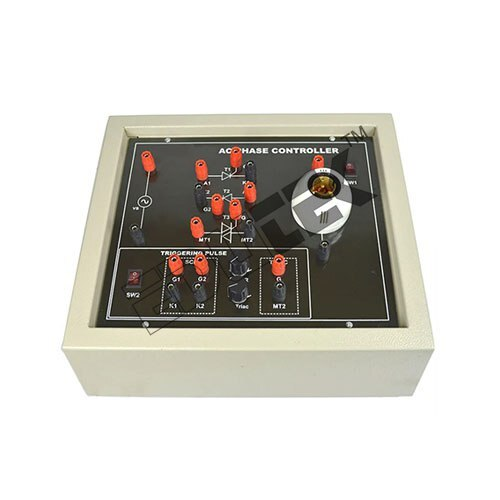

Phase Angle Control With Thyristor - Application: Engineering Electronics Instruments
Price: 1600.00 INR / Piece
(1600.00 INR + 0% GST)
Get Latest Price
1 Pack Contains :
1
Minimum Pack Size :
1
In Stock
Product Specifications
| Operating Temperature | 0C to 50C |
| Color | Blue, White (as per shown unit) |
| Features | Demonstrates sinusoidal phase angle control, safe for academic use, overcurrent protection, modular design |
| Response Time | Immediate, dependent on input control |
| Resolution | Analog control (stepless) |
| Display Type | Other, LED indication for operation |
| Power Source | AC mains |
| Output | Phase-controlled AC voltage |
| Usage | ENGINEERING ELECTRONICS INSTRUMENTS |
| Input | Analog signal or potentiometer for phase control |
| Power Supply | 230 V AC, 50 Hz |
| Components | Thyristor, diac/triac, potentiometer, step-down transformer, fuse, control circuit |
| Interface | Banana socket terminals |
| Product Type | PHASE ANGLE CONTROL WITH THYRISTOR |
| Application | ENGINEERING ELECTRONICS INSTRUMENTS |
| Rated Voltage | 230 V AC |
| Supply Voltage | 230 V AC |
| Size | Standard benchtop module |
| Dimension (L*W*H) | Approx. 300 mm x 175 mm x 90 mm |
| Function | Phase angle control for AC power modulation using thyristor circuits |
| Weight | Approx. 1.2 kg |
| Thickness | Panel thickness approx. 4 mm |
| Current Rating | 1 Ampere max |
| Capacity | Up to 1 A load current |
| Frequency | 50 Hz |
| Payment Terms | Cash on Delivery (COD), Cash Advance (CA), Cheque, Telegraphic Transfer (T/T), Letter of Credit (L/C) |
| Packaging Details | Carton Box, Export Quality also Available |
| Main Export Market(s) | Asia, Middle East, Africa |
| Main Domestic Market | All India |
| Certifications | ISO 9001, 14001, CE |
| Moq | 1 |
| Unit Type | Piece/Pieces |
| Color | Blue, White (as per shown unit) |
| Price Type | fixed |
| Currency | INR |
| Price | 1600.00 INR (Approx.) |
| Mop | 1 |
| Brand Name | EDUTEK |
| Product Unit | 1 Piece/Pieces |
| Stock Quantity | 5 |
| Packsize | 1 |
| Returnable | No |
| Minimum Order Quantity | 1 |
| Minimum Ordered Packs | 1 |
| GSTIN | 0% |
Product Overview
Key Features
PHASE ANGLE CONTROL WITH THYRISTOR
1Phase AC: 230V/2A/50Hz
Input: 100V AC
Current: 2A
Frequency: 50 Hz input.
Firing Angle Variation: (5-180) degree
