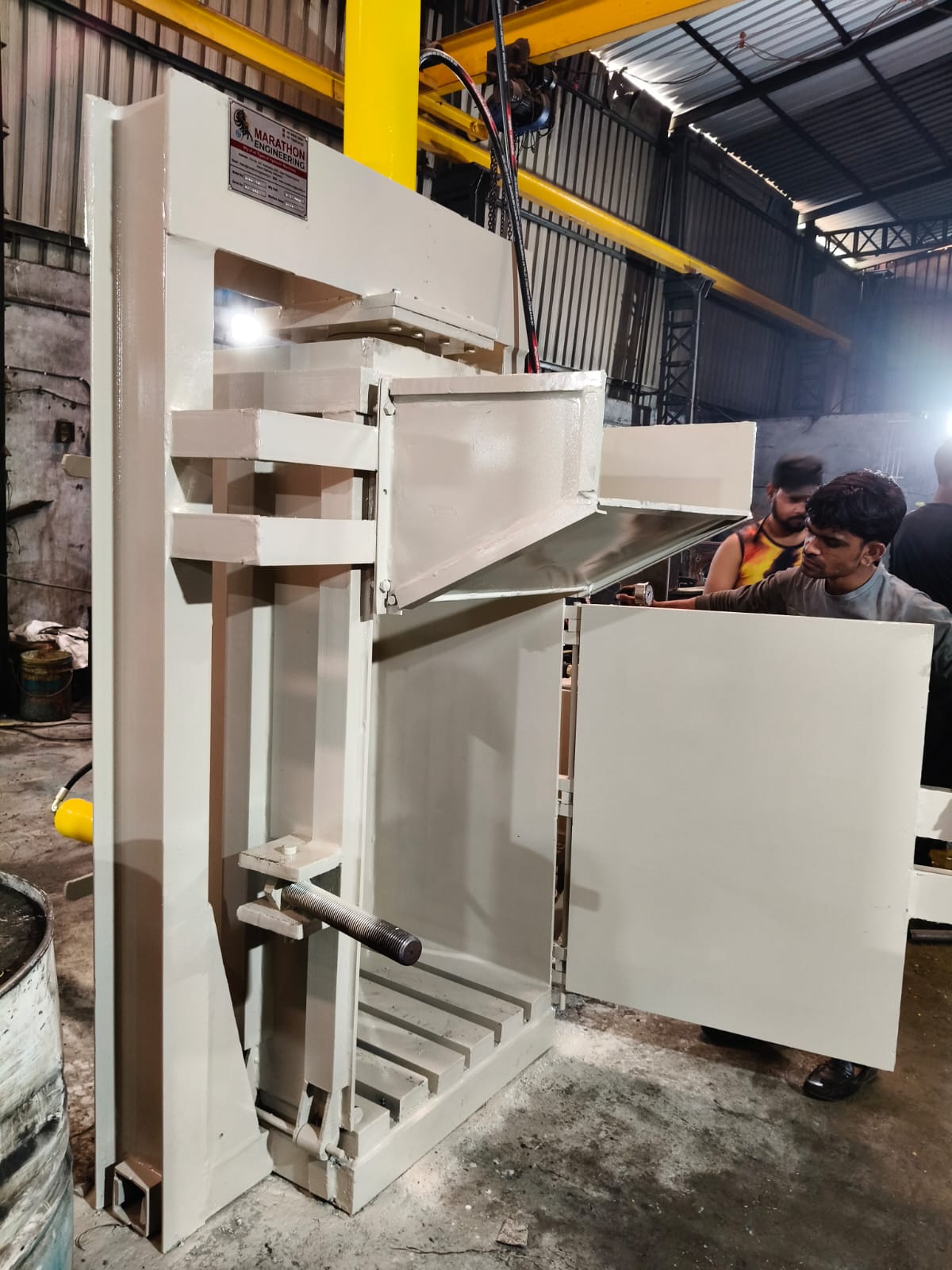

Paper Baling Press Machine By Marathon Engitech Private Limited

essential for compacting various recyclable materials, including metals, plastics, paper, and textiles, into dense bales. This process facilitates efficient storage, transportation, and recycling. Below is a detailed overview of the specifications and features of these machines:

1. Compression Force

• Typically ranges from 10 to 100 tons, depending on the model and application.

2. Bale Size and Weight

• Dimensions: Common bale sizes include 800 x 400 x 800 mm and 1150 x 750 x 1000 mm.
• Weight: Bale weights can vary from 50 kg to over 200 kg, influenced by the material type and machine capacity.

3. Machine Dimensions and Weight

• Size: Machines can measure approximately 1.4 x 0.7 x 2.9 meters to larger dimensions based on capacity.
• Weight: Ranges from 400 kg for smaller models to over 2,000 kg for heavy-duty machines.

4. Power Requirements

• Motor Power: Typically between 5.5 kW to 17 kW, depending on the machine's compression force and operational needs.

5. Cycle Time and Efficiency

• Baling Speed: Standard models achieve 6 to 10 bales per hour, with cycle times around 70 to 80 seconds per bale.

6. Loading and Operation

• Loading Method: Materials are loaded from the top into the compression chamber.
• Operation: Machines feature user-friendly controls, often with hydraulic hand levers or electrical systems for efficient operation.

7. Safety Features

• Equipped with safety mechanisms such as emergency stop buttons, safety interlocks, and protective guards to ensure operator safety.

8. Applications

• Materials: Suitable for compressing a variety of materials, including:
  • Scrap metals (steel, aluminum, copper)
  • Plastic bottles and containers
  • Cardboard and paper waste
  • Textiles and clothing

9. Additional Features

• Hydraulic System: Designed for high efficiency with components like hydraulic cylinders, motors, and oil tanks.
• Binding: Bales are typically secured using steel wires or plastic straps, manually slotted in the pressing block.

Example Models:

• SL-10T Vertical Baler

  • Compression Force: 10 tons
  • Bale Size: 800 x 400 x 800 mm
  • Machine Dimensions: 1.4 x 0.7 x 2.9 meters
  • Motor Power: 5.5 kW
  • Baling Speed: 8-10 bales per hour
  • Weight: 400 kg

• SL-60T Vertical Baler

  • Compression Force: 60 tons
  • Bale Size: 1150 x 750 x 1000 mm
  • Machine Dimensions: 1.7 x 1.0 x 3.2 meters
  • Motor Power: 15 kW
  • Baling Speed: 6-10 bales per hour
  • Weight: 1600 kg

These specifications are indicative and can vary based on the manufacturer and specific model. When selecting a hydraulic vertical scrap baling machine, consider factors such as the type of material to be baled, required bale size and weight, production capacity, available space, and power supply. Consulting with manufacturers or suppliers can provide tailored solutions to meet specific operational needs.
