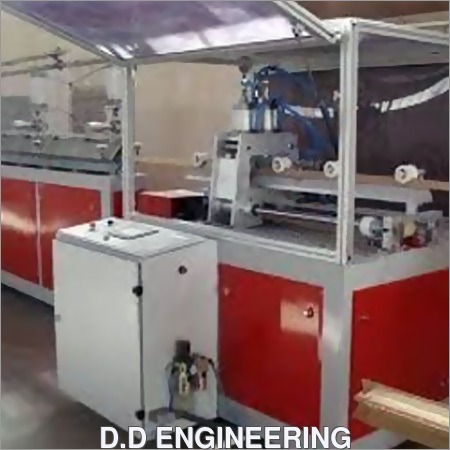

Paper Angle Board Machine

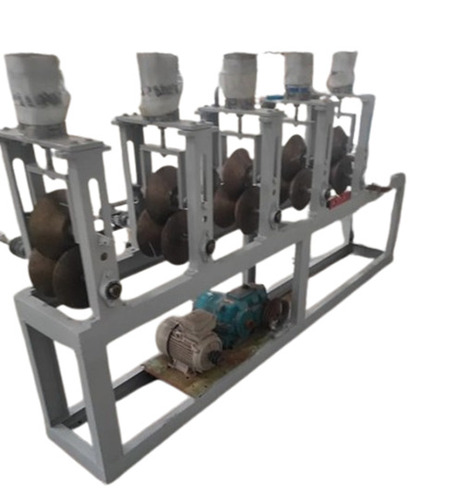

By keeping track with the market developments, we are eminent Exporter, Manufacturer & Supplier of Paper Angle Board Machine in Qingdao, Shandong, China. 1. Description This paper corner board machine adopts PLC control system, use servo motor for cutting device, Max. speed can reach 45m/min. The forming section has 8 units wheels with drive, and the left 6 units are driven, this makes the protector very strong and beautiful. This machine has on-line puncher for the frame forming, the size can be pre-set on PLC program. 2. Specification Model : EMSXV100 V protector wing size : 25mma 100mm Max. thickness : 8mm Quantity of layers : Max. 13 layers Min. cutting length : 100mm Length of the final product : 100--4000mm Production speed : 0-50m/min Motor power : 10KW Total Weight : App. 5.5T Overall size : 25000mm(L)A 1100mm(W)A 1700mm(H) Tolerance : A 1mm Forming device : 8 units wheels with drive, 6 units driven Collecting table : Automatic collecting, manual packing Control system : Mitsubishi PLC, servo motor and touch screen Punching device : One set mould for 80*80*5mm size.
