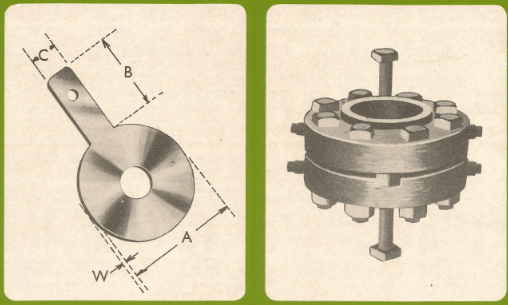

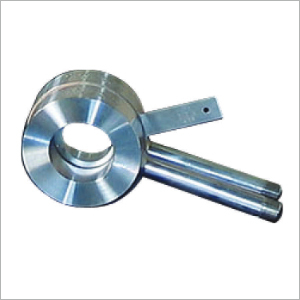

Blue Orifice Plate Assembly & Flow Elements

SPECIFICATIONS

1. FLANGE : CS, SS, A-105, CL I, CL II, A I82, IS 2002.
2. FLANGE RATING : 150#, 300#, 400#, 600#, 900#, 1500#
3. ORIFICE PLATE : SS 304, SS 316, MONEL, etc.
4. ORIFICE TYPE : a) Sharp edge-straight. b) Bevel edge. c) Concentric.
d) Eccentric. e) Segmental.
5. DRAIN & VENT HOLES: Provided on request
6. FLANGE TAPS : Two taps at 180 degree BSP/NPT/BSPT (F) 2 Nos. per flange
at 15/16 from raised face.
Drill size: -for under 2 3/8 -for 3 & 3 -for 4 & over.
7. JACK SCREWS : Two dog-point bolts on one flange at 180 degrees to facilitate
removal of plate.
8. GASKETS :CAF, PTFE, Spiral-wound, Ring Joint etc.
