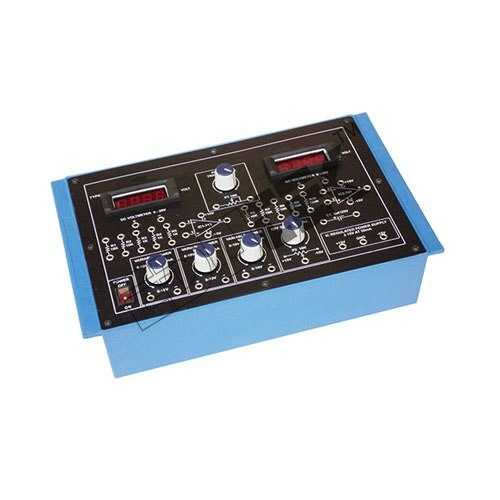

Operational Amplifier (Adder/scalar) - Application: Engineering Electronics Instruments
Price: 1200.00 INR / Piece
(1200.0 INR + 0% GST)
Get Latest Price
In Stock
Product Specifications
| Output | Analog voltage output |
| IP Rating | Not rated (for indoor use/electronic circuits) |
| Power Source | External regulated DC supply |
| Usage | ENGINEERING ELECTRONICS INSTRUMENTS |
| Components | Operational amplifier IC, resistors, PCB |
| Color | Black |
| Features | High input impedance, low output impedance, high accuracy, modular design |
| Thermal Conductivity | Standard, depends on package and ambient conditions |
| Operating Temperature | 0C to +70C (commercial) or -40C to +85C (industrial) |
| Power Supply | Dual supply, 15V recommended, single supply possible |
| Resolution | Analog, continuous |
| Response Time | Fast response (Slew Rate typically 0.5V/s or higher) |
| Interface | Pin connectors |
| Input | Multiple analog voltage inputs (up to 4 channels possible depending on configuration) |
| Product Type | OPERATIONAL AMPLIFIER (ADDER/SCALAR) |
| Application | ENGINEERING ELECTRONICS INSTRUMENTS |
| Rated Voltage | 18V max (typically 15V) |
| Supply Voltage | 15V typical |
| Size | Standard DIP or SMD package (e.g., 8-pin DIP or SOIC) |
| Dimension (L*W*H) | 19.3mm x 6.35mm x 10.16mm (DIP-8 package) |
| Function | Adder/Scalar |
| Weight | Approx. 10-15 grams (depends on packaging) |
| Thickness | Standard PCB thickness (approx. 1.6mm) |
| Current Rating | Input bias current: typically 60nA (varies by op-amp type) |
| Capacity | Handles typical op-amp current (few mA) |
| Frequency | Wideband (Gain-Bandwidth product typically 1 MHz or higher) |
| Payment Terms | Cash on Delivery (COD), Cash Advance (CA), Cheque, Telegraphic Transfer (T/T), Letter of Credit (L/C) |
| Packaging Details | Carton Box, Export Quality also Available |
| Main Export Market(s) | Asia, Middle East, Africa |
| Main Domestic Market | All India |
| Certifications | ISO 9001, 14001, CE |
| Color | Black |
| GSTIN | 0% |
Product Overview
Key Features
OPERATIONAL AMPLIFIER (ADDER/SCALAR)
To study Scaling Amplifier, configured in such a way so that any type of transfer function i.e. Direct or Inverse with D.C. offset (+ve or -ve) can be scaled.
To study Summing amplifier or adder
15V D.C. at 50mA, IC regulated power supply internally connected.
02 Three 0-10V D.C. at 50mA, continuously variable power supplies.
