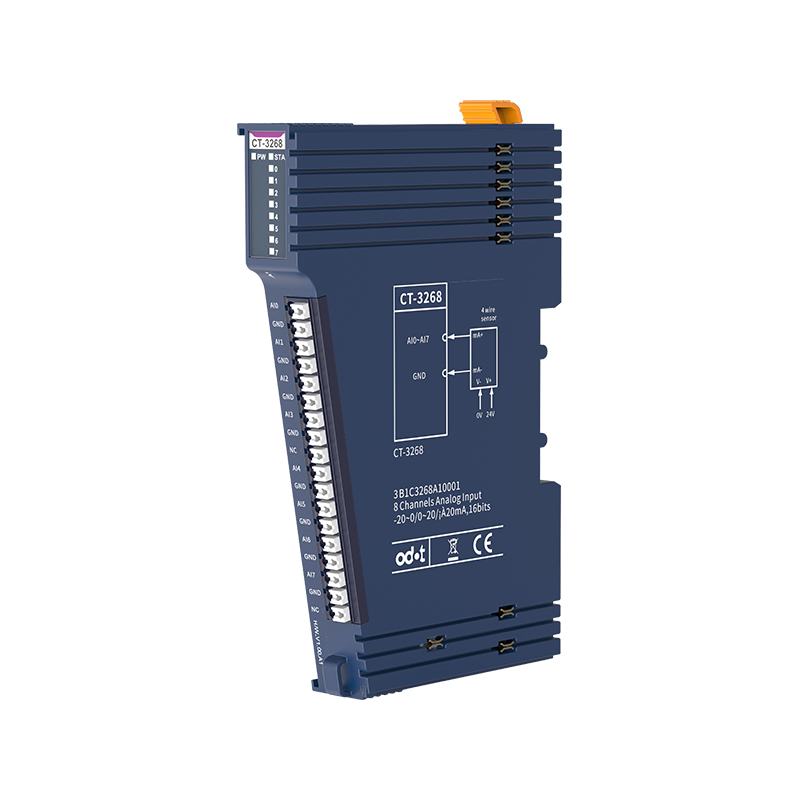

Name: ODOT CT3268 Analog Input Current Type Module
Price: 16219 INR
Availability: InStock

Odot Ct3268 Analog Input Current Type Module By Sichuan Odot Automation System Co., Ltd.

Price: 16219 INR / Unit

Get Latest Price

Minimum Order Quantity :

2 Unit

In Stock

Product Specifications

Usage	Industrial Automation
Equipment Type	Analog Input Current Module
Process	Analog Signal Acquisition
Application	Analog sensor current signal collection
Warranty	1 Year
Model No	CT3268
Payment Terms	Cash Advance (CA), Cash in Advance (CID)
Supply Ability	100 Per Week
Delivery Time	6 Days
Main Domestic Market	All India

Product Overview

Key Features

The module overview

The CT-3268 remote I/O module supports8-channel current signal acquisition,2-wire (non-loop output, external power supply is required); Itcan be configured for 0~20mA or -20~0mA or 20mA current signalacquisition;The internal bus of the module and field input adopts magnetic insulation;The module input channel is to be connected to the field active analog signal currentoutput sensor;The module channel equips with TVS overvoltage protection.

Technical parameters

Power	5.0VDC
Isolation	I/O to internal bus: magnetic isolation (2.5KVrms) Power isolation: DC-DC
Wiring	Max.: AWG 18 Min.: AWG 24
Installation Size	35mm DIN-Rail 1151475mm
Weight	65g
Environmental parameters
Operating Temperature of Vertical Installation	-35~70
Operating Temperature of Horizontal Installation	-35~60
Relative Humidity	5~ 95%RH (No Condensation)
Storage Temperature	-40~85
Storage Humidity	5~ 95%RH (No Condensation)
Manufacturing Test Temperature	-40~75
Ingress Protection Rating	IP20
Input Parameters
Channel Number	8 channels
LED Indicator	8 LED channel state indicators
Input Range	Maximum: -23.5~23.5mA
Resolution Ratio	15 Bit
Acquisition Precision	0.3% full range@25 0.5% full range@-20~70
Sampling Rrate	4ms/8 channels
Data Format	16-bit signed integer
Working Temperature	Standard mode: Overflow 32767 Standard mode: Underflow -32768 Channel disabled: -32767

ODOT C Series Remote I/O Modules

CT-1218	8DI, PNP/high level active, 24VDC, counter frequency<200Hz
CT-1228	8DI, NPN/low level active, 24VDC, counter frequency<200Hz
CT-121F	16DI, PNP/high level active, 24VDC, counter frequency<200Hz
CT-122F	16DI, NPN/low level active, 24VDC, counter frequency<200Hz
CT-124H	32DI, PNP or NPN/high or low level active, 24VDC, counter frequency<200Hz, 34Pin male connector
CT-124D	32DI, PNP or NPN/high or low level active, 24VDC, counter frequency<200Hz
CT-125F	16DI, PNP/high level active, 24VDC, counter frequency<200Hz, independent power supply
CT-126F	16DI, NPN/low level active, 24VDC, counter frequency<200Hz, independent power supply
CT-1314	4DI, 220VAC input, counter frequency<10Hz
CT-2224	4DO, PNP/high level active, 2.2A, independent power supply
CT-2218	8DO, NPN/low level active, 0.5A
CT-222F	8DO, PNP/high level active, 0.5A
CT-222F-NP	16DO, PNP/high level active, 0.5A
CT-222H	16DO, PNP/high level active, 0.5A, independent power supply
CT-222D	32DO, PNP/high level active, 0.3A, 34Pin male connector
CT-221F	32DO, PNP/high level active, 0.5A, independent power supply
CT-221H	16DO, NPN/low level active, 0.5A
CT-221D	32DO, NPN/low level active, 0.3A, 34Pin male connector
CT-2244	32DO, NPN/low level active, 0.25A, independent power supply
CT-225F	4-channel digital output, 0.5A/PNP/24V active, NPN/OV active
CT-226F	16DO, NPN/low level active, 0.5A, independent power supply
CT-2738	16DO, PNP/high level active, 0.5A, independent power supply
CT-2754	4DO, relay output, 2A, channel isolation (inductive load:2A, resistive load:3A)
CT-2794	4DO, relay output, inductive load:220VAC, resistive load:220VAC, channel isolation
CT-3134	4 AI 0~5VDC,-5~5VDC,0~10VDC,-10~10VDC16 bits, Single-endchannel isolation
CT-3168	8 AI 0~5VDC,-5~5VDC,0~10VDC,-10~10VDC16 bits,Single-end
CT-3234	4 AI 0&4-20mA/15 bits
CT-3238	8 AI 0&4~20mA/15 bits
CT-3268	8 AI 0~20mA1-20~0mA /+20mA /16 bits,single ended
CT-3274	4 AI 0&4~20mA,16 bits, Input Accuracy:full 25C,-35~70C,channel isolation
CT-3713	3-channel RTD (Resistance Temperature Detector) input, RTD-PT100
CT-3723	3-channel RTD (Resistance Temperature Detector) input,RTD-PT1000
CT-3716	6-channel RTD (Resistance Temperature Detector) input, RTD-PT100
CT-3726	6-channel RTD (Resistance Temperature Detector) input,RTD-PT-1000
CT-3734	4 AI(RTD-PT100) with channel isolation, Input accuracy : 0.5C
CT-3744	4 AI(RTD-PT1000),Input Accuracy: 0.5C, channel isolation
CT-3844	4 AI Thermocouple(TC-J/K/E/T/S/R/B/N)types,filter parameters can adjustable
CT-3848	8 AI Thermocouple(TC-J/K/E/T/S/R/B/N)types
CT-4154	4 AO Voltage Output,0~5VDC,5~5VDC,0~10VDC,10~10VDC,16 bits
CT-4158	8 AO Voltage Output,0~5VDC,5~5VDC,0~10VDC,10~10VDC,16 bits
CT-4234	4AO, Current output, 0~20mA,4~20mA,16 bits single-end
CT-4238	8AO, Current output, 0~20mA,4~20mA,16 bits single-end
CT-5000	Dummy module, no wiring and no channels
CT-5102	2-channel encoder input, 5V, input frequency < 1.5 MHz
CT-5112	2-channel encoder input, 24V, input frequency < 0.5 MHz
CT-5122	2-channel SSI encoder input, 5V differential, input frequency < 2 MHz
CT-5142	2-channel differential encoder input, 5V differential, input frequency < 10 MHz
CT-5212	8DI, PNP/high level active, and 2DO, PNP/high level active,0.5A, and 2-channel pulse output(pulse and direction /double pulse)
CT-5244	4DI, PNP or NPN/high or low level active, and 4DO, PNP/high level active, 0.5A, and 4-channel PWM output,1A, independent power supply
CT-5321	Modbus serial port
CT-5331	CANopen Master
CT-5341	PROFIBUS-DP master
CT-5711	Fieldbus Extended Master Module
CT-5721	Fieldbus Extended Slave Module
CT-5801	End card-mandatory module, take no module channel
CT-623F	8DI, PNP or NPN/high or low level active, 24VDC, and 8DO,PNP/high level active, 0.5A
CT-7100	Field Expansion power Supply,24VDC/8A
CT-7220	Expansion power Supply(System power input 24VDC,Output 5VDC/2AField power input 24vDc,Output 24VDC/8A)
CT-7221	Expansion power Supply(System power input 24VDc,Out-put 5VDC/2A/Fieldpower input 24VDc,Output 24VDC, Output 24VDC/8A)(need slot occupied)
CT-730F	18 CH filed power distribution module OVDC
CT-731F	18 CH filed power distribution module 24VDC
CT-732F	18 CH filed power distribution module PE
CT-7339	18 CH filed power distribution module 24VDC/0VDC
CT-7346	18 CH filed power distribution module 24VDC/0VDC PE
