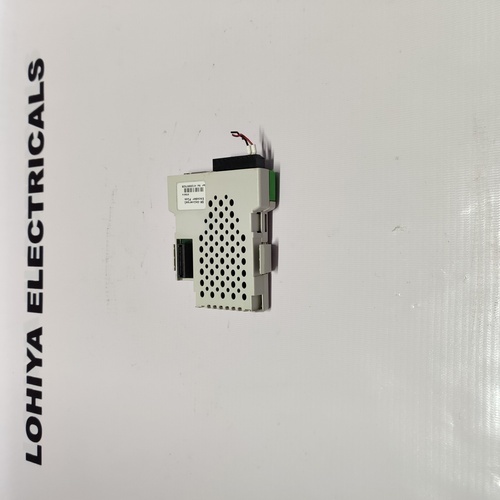

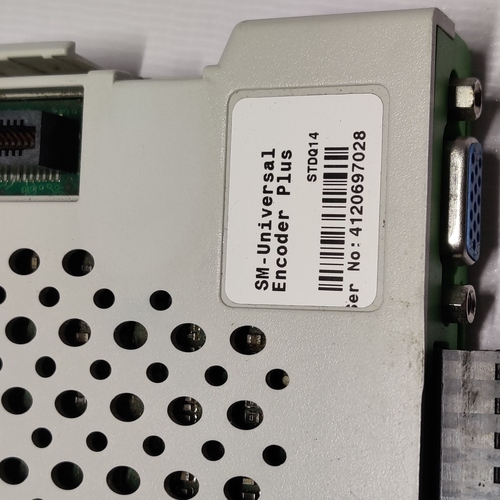

Nidec Corp Sm-universal Encoder Plus Module - Advanced Encoder Technology | Seamless Integration, Enhanced Precision, User-friendly Setup

Nidec Corp Sm-universal Encoder Plus Module - Advanced Encoder Technology | Seamless Integration, Enhanced Precision, User-friendly Setup

Price: (Approx.)

Get Latest Price

Minimum Order Quantity :

1 Piece

Brand Name :

Nidec Corp

In Stock

Product Specifications

Application	Industrial automation, robotics, motion control systems
Phase	Other, 2-phase output (A/B/Index)
Cooling Method	Passive (no fan required)
Current Range	Up to 100 mA total
Working Temperature	0AdegC to +70AdegC
Output Type	Other, Differential, single-ended
Power Supply	External 5V DC
Operating Temperature	0AdegC to +70AdegC
Connector Type	Screw terminals, ribbon cable header
Features	Programmable resolution, error detection, encoder signal conversion
Output Current	Max 50 mA/channel
Noise Level	Low noise operation
Product Type	SM-Universal Encoder Plus Module
Output Frequency	Up to 500 kHz
Input Voltage	5V DC
Voltage Protection	Over-voltage and reverse polarity protected
Efficiency	High
Material	Industrial grade PC/ABS plastic casing
Line Regulation	A+-1%
Storage Temperature	-20AdegC to +85AdegC
Weight	Approximately 180 grams

Product Overview

Key Features

Company Details

Business Type

Supplier, Trading Company

Employee Count

Establishment

2009

Working Days

Monday To Saturday

GST NO

24AHSPL3513E1ZI

Payment Mode

Paypal
