Multi Tooling Machine Grade: Automatic

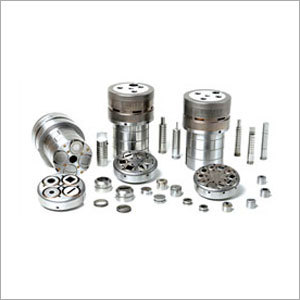

Multi Tooling Machine Aimed at highest level of client satisfaction, we are engaged in manufacturing and supplying Multi Tooling Machine. Under the supervision of diligent quality auditors, these machines are stringently tested on different parameters so as to ensure its suitability for wide industrial applications. Offered machine is highly acclaimed by the clients for its longer service life, high efficiency, robust construction and low running cost. We are offering Multi Tooling Machine to the clients at reasonable price with an assurance of timely delivery.Specifications Type MM-D-8 MM-D-10 MM-B-8 MM-B-10 MM-B-12 Type of tooling "D" "D" "B" "B" "D"/"B"/"BB" No. of Stations 8 Stn. 10 Stn. 8 Stn. 10 Stn. 12 Stn. Max. Operating Pressure 10 Ton. 10 Ton. 6.5 Ton. 6.5 Ton. 10 Ton Max. Pre-Pressure 1 Ton (Lab Press II M/c.) Max. Tablet Diameter 23.0mm 23mm 16.0mm 16 mm 23/16/11 mm Max. Depth of fill 20.0mm 20mm 17.4mm 17.4mm 20/17.4mm Output Tab./Hr. 4,800 to 14,400 6,000 to 18,000 4,800 to 14,400 6,000 to 18,000 2,400 to 7,200 Main Electric Motor 2 HP/1440 RPM / 1Ph Feeder Motor (Lab Press II) 0.25 HP / 1440 RPM for (Lab Press II M/c.) Output Depending upon the characteristics of material and shape & size of tables.
