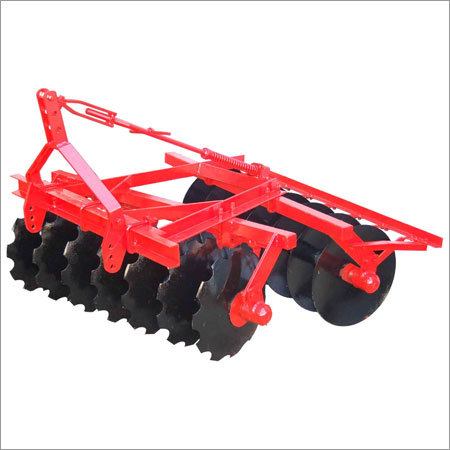

Mounted Offset Disc Harrow - Boron Steel, 2030mm Length, 1150mm Height | Adjustable Angle, Corrosion Resistant, Easy Transport

6X6

7X7

8X8

9x9

10x10

No. OF
DISCS

12

14

16

18

20

FRAME

75 x 10 mm Angle with 100 x 50 mm Channel

75 x 10 mm Angle with 100 x 50 mm Channel

75 x 10 mm Angle with 100 x 50 mm Channel

75 x 10 mm Angle with 100 x 50 mm Channel

75 x 10 mm Angle with 100 x 50 mm Channel

GANG BOLT

32 mm Central square Solid Bar

32 mm Central square Solid Bar

32 mm Central square Solid Bar

32 mm Central square Solid Bar with split gangs

32 mm Central square Solid Bar with split gangs

LENGTH

2030 mm

2080 mm

2130 mm

2230 mm

2280 mm

HEIGHT

1150 mm with 560 mm Disc 1200 mm with 610 mm Disc

1150 mm with 560 mm Disc 1200 mm with 610 mm Disc

1150 mm with 560 mm Disc 1200 mm with 610 mm Disc

1150 mm with 560 mm Disc 1200 mm with 610 mm Disc

1150 mm with 560 mm Disc 1200mm with 610 mm Disc

DISTANCE BETWEEN DISCS

250 mm

225 mm

225 mm

225 mm

225 mm

MOUNTING

CAT. I / II (Optional)

CAT. I / II (Optional)

CAT. I / II (Optional)

CAT. I / II (Optional)

CAT. I / II (Optional)

DISC DIAMETER (mm)

560 / 610 (Optional)

560 / 610 (Optional)

560 / 610 (Optional)

560 / 610 (Optional)

560 / 610 (Optional)

TYPE OF DISCS

Notched in Front & Plain in Rear

Notched in Front & Plain in Rear

Notched in Front & Plain in Rear

Notched in Front & Plain in Rear

Notched in Front & Plain in Rear

BEARING HUBS (Nos.)

4

4

6

8 (Split Gang Arrangement)

8 (Split Gang Arrangement)

WIDTH OF CUT

1350 - 1400 mm

1600 - 1650 mm

1800 - 1850 mm

2000 - 2100 mm

2250 - 2300 mm

POWER REQUIRED

35 HP

40 - 45 HP

45 - 50 HP

50 - 55 HP

55 - 60 HP

APPROX WEIGHT (KG)

425 with 610 mm Disc
400 with 560 mm Disc

465 with 610 mm Disc
450 with 560 mm Disc

510 with 610 mm Disc
480 with 560 mm Disc

570 with 610 mm Disc
540 with 560 mm Disc

625 with 610 mm Disc
575 with 560 mm Disc
