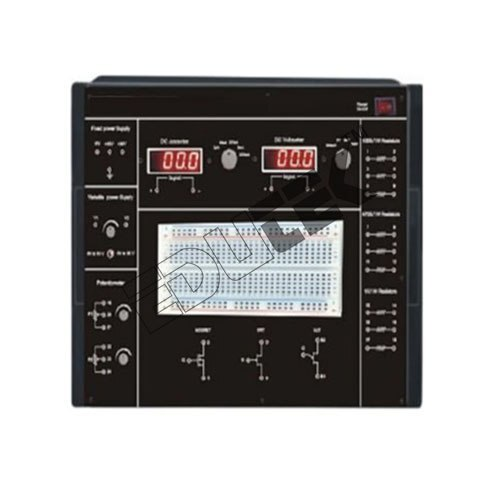

Mosfet Characteristics - Application: Engineering Electronics Instruments
Price: 1400.0 INR / Piece
Get Latest Price
Minimum Order Quantity :
1 Piece
Brand Name :
Edutek
In Stock
Product Specifications
| Interface | Banana sockets, test points |
| Output | Output voltage/current across MOSFET |
| Components | MOSFET (N-Channel/Enhancement mode), resistors, potentiometers, terminals |
| Usage | ENGINEERING ELECTRONICS INSTRUMENTS |
| Input | Variable input voltage |
| Power Supply | External DC power supply |
| Features | Rugged casing, labeled test points, front panel schematic |
| Power Source | DC Power Adapter |
| Operating Temperature | 0C to 50C |
| Product Type | MOSFET CHARACTERISTICS |
| Application | ENGINEERING ELECTRONICS INSTRUMENTS |
| Rated Voltage | 12V DC |
| Supply Voltage | 12V DC |
| Size | Portable |
| Dimension (L*W*H) | 265 mm x 165 mm x 65 mm |
| Function | Demonstration of MOSFET characteristics |
| Color | Black/Blue (as per image) |
| Weight | Approx. 350 g |
| Current Rating | As per installed MOSFET specification |
| Capacity | Single unit demonstration |
| Payment Terms | Cash on Delivery (COD), Cash Advance (CA), Cheque, Telegraphic Transfer (T/T), Letter of Credit (L/C) |
| Packaging Details | Carton Box, Export Quality also Available |
| Main Export Market(s) | Asia, Middle East, Africa |
| Main Domestic Market | All India |
| Certifications | ISO 9001, 14001, CE |
Product Overview
Key Features
MOSFET CHARACTERISTICS
To demonstrate the operation of a typical insulated gate FET.
To examine the relationship between the gate-to source voltage (VGS) the gate drain current (ID) and the drain-to source voltage (VDS) in an N-channel depletion mode IGFET.
To measure the corresponding VGS, ID, and VDS values and graphically plot those to form a set of drain characteristics values.
