Microprocessor Strip & Circular Recorder - Chart Width 100-250mm, Speed 15-940mm/hr, 4-digit Led, Dual Pen, High/low Alarm, Potentiometric Feedback
Price:
Get Latest Price
In Stock
Product Specifications
| Accuracy | Potentiometric feedback |
| Alarm | High/Low, 6A relay |
| Chart Speed | 15-940 mm/hr |
| Chart Width | 100-250 mm |
| Display | 4-digit LED |
| Features | Precise recording, Reliable feedback, Easy calibration, Versatile inputs, High accuracy, Alarm system |
| Input Types | RTD, Thermocouple, mA, V |
| Model | S-100-R, S-120-R, etc. |
| Number of Pens | One or Two |
| Power Supply | 230/110 VAC |
| Response Time | <1 sec |
| Usage | Industrial process monitoring and data logging of temperature, pressure, and other process parameters. |
Product Overview
Key Features
SUNSUI MAKE MICROPROCESSOR BASED STRIP AND CIRCULAR CHART RECORDERS :-
- Microprocessor based combined with potentiometric feedback for better accuracy.
- Keypad : 4 keys splash proof membrane keypad.
- Input : Selectable Universal RT D / (J, K) Thermocouple / 4 to 20 mAdc / 0 to 5 Vdc
- Range and decimal point Scaleable as per the requirement.
- Indication : 4 Digit, 7 Segment, LED display with alarm indication.
- Alarm : High / Low alarms with NO / NC potential free contacts relay 6 Amp.
- Response time : less than 1 sec. * Calibration: through splash proof membrane keypad.
- Ex. Voltage : for Transmitter 24 Vdc (OPTIONAL)
- Power Supply : 230 V AC / 110 V AC, 50 Hz 10 %. * VA rating: 15 VA
| Model | No. Of Pens | Chart width / Dia | Variable Chart Speed |
| Strip Chart |
|
|
|
| S - 100 - R | One | 100 mm. | 15, 30, 60, 120, 940. mm/Hr |
| S - 120 - R | One | 120 mm. | 15, 30, 60, 120, 940. mm/Hr |
| S - 120 - TP | Two | 120 mm. | 15, 30, 60, 120, 940. mm/Hr |
| S - 180 - R | One | 180 mm. | 15, 30, 60, 120, 940. mm/Hr |
| S - 180 - TP | Two | 180 mm. | 15, 30, 60, 120, 940. mm/Hr |
| S - 250 - R | One | 250 mm. | 15, 30, 60, 120, 940. mm/Hr |
|
|
|
|
|
| Circular Chart |
|
|
|
| C - 60 - R | One | 152 mm. | 1, 7 Day / Rev. |
| C - 100 - R | One | 257 mm. | 1, 7 Day / Rev. |
| C - 100 - TP | Two | 257 mm. | 1, 7 Day / Rev |
Company Details
Business Type
Exporter, Manufacturer, Service Provider, Supplier, Trading Company, Wholesaler, Retailer, Dealer
Employee Count
18
Establishment
1992
Working Days
To
GST NO
27AAJCS0014L1ZE
Related Products
Chart Recorder - ABS Material, 150mm/250mm Diameter | High Accuracy, Compact Design, Efficient Performance, Trouble-free Operation
MOQ - 1 Unit/Units
Renake Sales & Services
Pune, Maharashtra
Circular Chart Recorder - Premium Quality Electromagnetic Device | Low Power Consumption, Easy to Operate, Unmatched Performance
Emerald Technology
Pune, Maharashtra
Potentiometric Strip Chart & Circular Chart Recorder
Sunpro Instruments (india) Pvt. Ltd.
Pune, Maharashtra

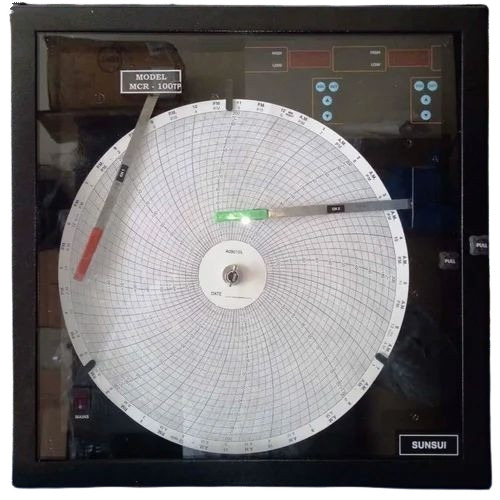

Two Pen Circular Chart Recorder
