Mesh Dryer Dimension(l*w*h): 50* 17* 10 Foot (Ft)

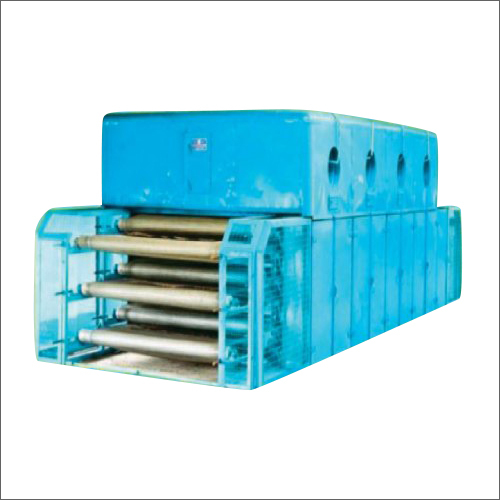

BAND DRYER - 2740mm (9a -0a ) Width Stainless Steel Band (IS: 304) : 3No 5 SECTION 3 DECK ENERGY SAVING JET BAND DRYER MACHINE Specification: One No. Heavy duty 5 Section Three ( 3 ) Deck Band Dryer machine with Stainless Steel Band (IS:304)- 2740mm (9a -0a ) in Width and having Roller of 3050mm (10a -0a ) long, Automatic Band Adjustng System (Tilting), 9900mm Heating length, 1260mm Cooling Section, 1830mm in Extended Feeding End and 1000mm Discharge End. The Double Jet Nozzles are fitted on Top and Bottom of Band throughout the length of the Band Dryer so as to facilitate better and uniform performance (drying) and equipped with required propellers and Steam / Oil Heating Coils. The Band Dryer is perfectly insulated with heat resisting insulation layer of 90mm thick all round, except the base. The machine is complete with Motors (5 Nos. 3 HP 960 RPM AC 440V, 2 Nos.1 HP, 960 RPM, AC 440V and One No. 3 HP 1440 RPM AC 440V AC Drive (Infinitely Variable Speed Unit), Digital Temperature Indicator & Roller Chain complete. Production capacity of the above 5x3 Dryer : 21CBM(approx.) dried veneer on 0.3mm thick basis in 24 hours working Day in Thermic Fluid (Oil) Heating system at a Temperature of 1400C(+/-100 C) and Required Thermic Fluid 650000 Killo Callory/Hr. But the production on Steam Heating system will be less than the Thermic Fluid (Oil) heating system
