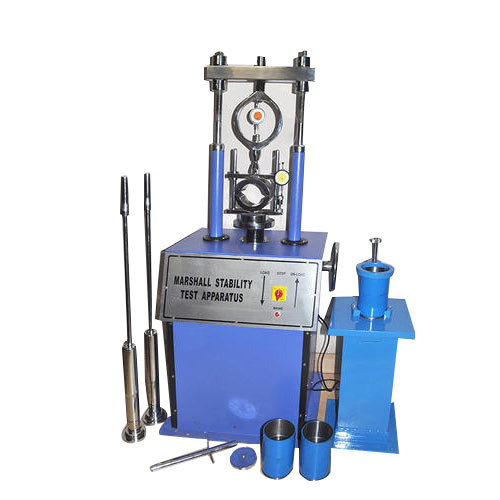

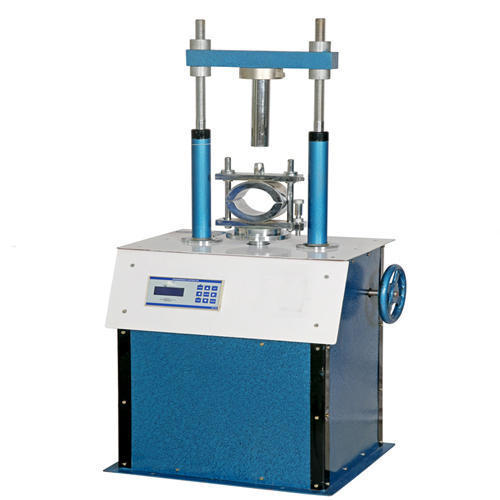

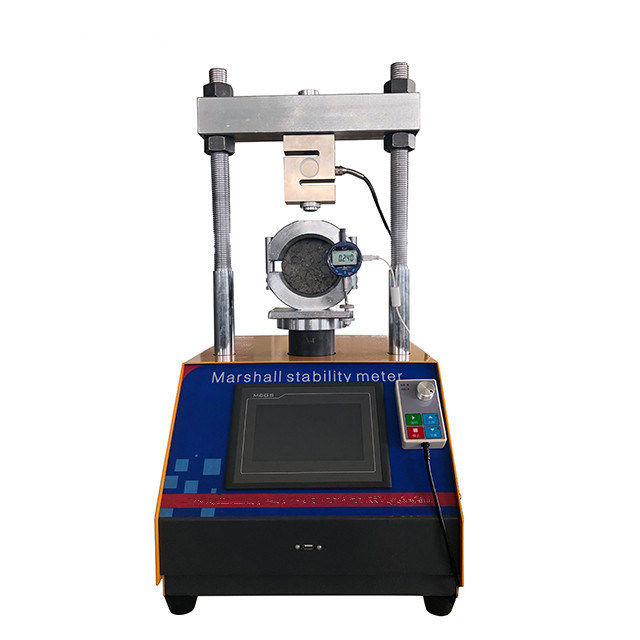

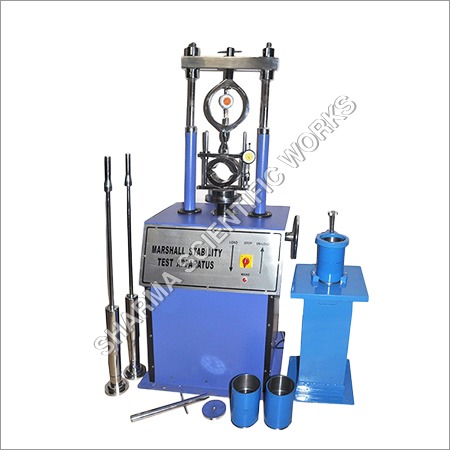

Marshall Stability Test Apparatus Port Size: Customize

SPECIFICATIONS:
A loading unit motorized, capacity 5000kgf with two telescopic pillars and adjustable cross head. Limit switches are fitted inside to control upward or downward movement of the pillars. On-off reversing switch and indicator lamps are on the front side while a hand wheel to manually move the pillars is on the right. The load frame has fixed speed of 5.08cm, per minute. Operated on 230 Volts A.C. 1 NO. Compaction pedal with specimen mould holder. 2 Nos. Compaction Rammers, 4.5kg weight and free fall 45.7cm. 1 No. Breaking head assembly with provision to fix flow meter. 3 Nos. Specimen mould 10.16 cm I.D. x 7.6 cm high with base plate and extension collar. 1 No. Kit for specimen extraction, consists of one each load transfer bar, steel ball, specimen extracting plate.
