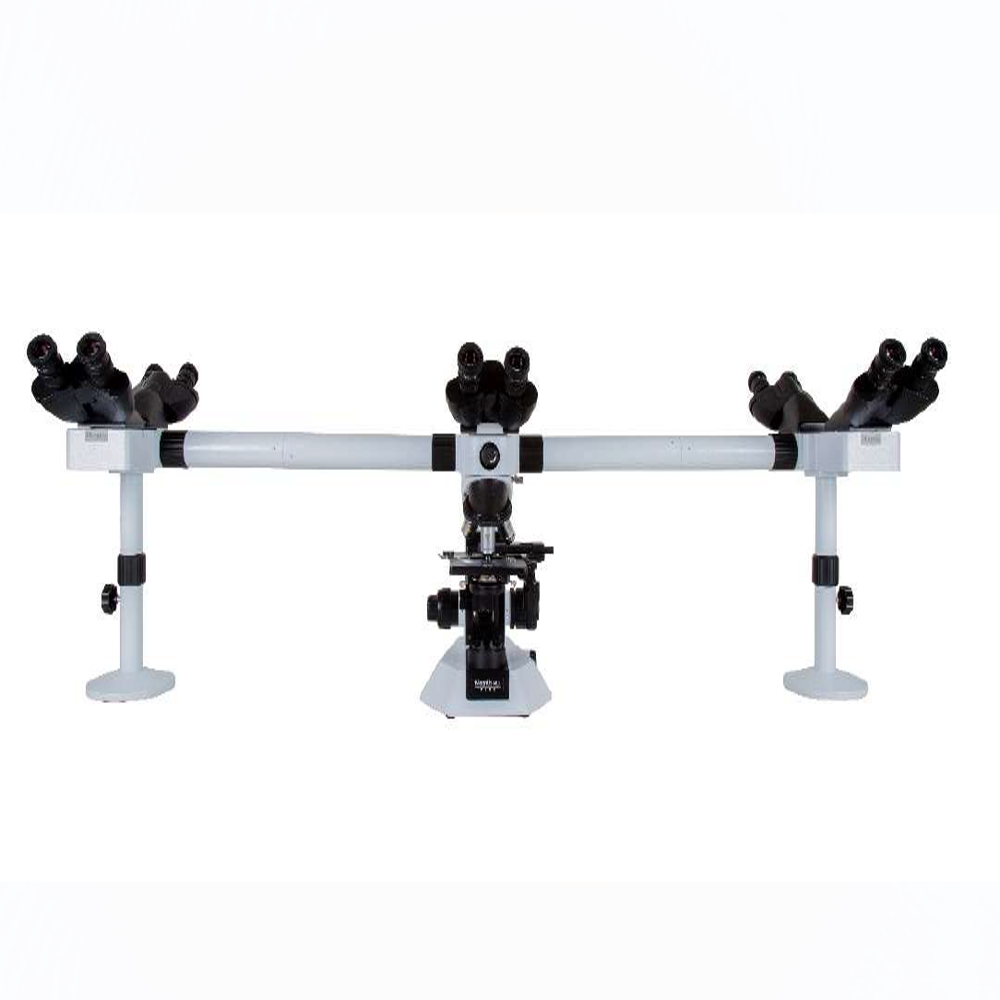

Magnus Penta Head Microscope Model Ph5 Led

Magnus Penta Head Microscope Model Ph5 Led

Name: Magnus Penta Head Microscope Model PH5 LED
Price: 893260 INR
Availability: InStock

Price: 893260.00 INR / Piece

(757000.00 INR + 18% GST)

Get Latest Price

MRP:

893260.00 INR / Piece

Weight :

10.00 Kilogram

1 Pack Contains :

Minimum Pack Size :

In Stock

-1+

Product Specifications

Spare Parts	Supplied with spare LED light, fuse, and fuse holder.
Features	Simultaneous observation for up to five users, individual eyepiece pointers for teaching, LED cold light with long lifespan, sturdy metal construction.
View Head	Penta head with individual pointer system for each user.
Focus System	Coaxial coarse and fine focus mechanism with tension adjustment.
Theory	Other, High precision multi-head microscopy for simultaneous observation by up to five users.
Drawtube	Other, Binocular and trinocular head for penta head attachment with 30 inclination.
Sensor	Compatible with digital camera sensors via trinocular attachment.
Resolution	Dependent on camera adapter; optical resolution provided by plan achromatic objectives.
Interface	Trinocular port for camera connectivity; standard accessories included.
Frame Rate	Dependent on attached camera (not included); typically up to 30 fps for compatible models.
Focal Distance	160 mm mechanical tube length.
Magnification	40x to 1000x using standard objectives and supplied eyepieces.
Dimensions	Approx. 510 mm (L) x 440 mm (W) x 520 mm (H) with all heads attached.
Focus Range	Coarse and fine adjustment; 25 mm total range.
Eyepieces	WF10x/20mm with pointer included for five head users.
Eyepiece Tube	Paired tubes for each observer, inclined at 30.
Illumination	Built-in 3W LED illumination with adjustable intensity and separate LED pointer for demonstration.
Coarse Adjustment Range	25mm with focus lock mechanism.
Fine Adjustment Range	0.2mm precision movement.
Working Stage	Mechanical stage 140 x 140 mm with double slide holder; movement range 75 x 50 mm.
Still Image Capture Resolution	Camera dependent (not provided); supports full optical resolution of objectives.
Video Capture Resolution	Camera dependent; supports high-definition through trinocular port.
Image Format	Dependent on connected camera (not included); supports standard digital outputs via trinocular port.
Interpupillary Distance	55-75 mm adjustable for all observers.
Objective Achromatic	4x, 10x, 40x (spring), 100x (spring, oil) Plan Achromatic objectives included.
Condenser	Abbe condenser N.A. 1.25 with iris diaphragm and filter holder.
Light Source	Integrated 3W LED with continuous brightness control.
Delivery Time	5 Week
Brand Name	MAGNUS
Unit Type	Piece/Pieces
Weight	10.00 Kilogram
Stock Quantity	5
MRP	893260.00 INR
Price Type	fixed
Returnable	No
Product Unit	1 Piece/Pieces
Pkg Box Length	40.00 cm
Mop	1
Moq	1
Shipping Type	actual
Pkg Box Height	100.00 cm
Price	757000.00 INR (Approx.)
Packsize	1
GSTIN	18%
Pkg Box Breadth	45.00 cm
Currency	INR
Minimum Ordered Packs	1
Minimum Order Quantity	1
