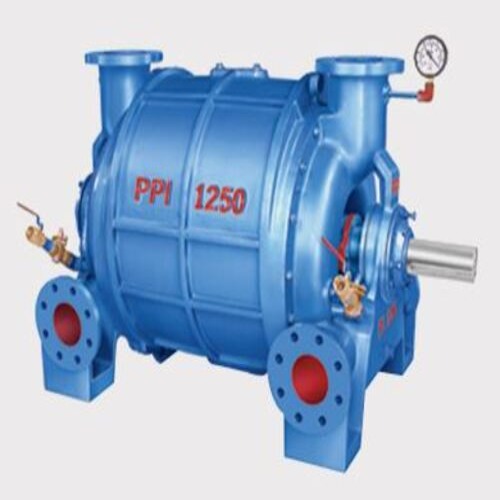

Liquid Ring Vacuum Pump (Pl - Series)

Name: Liquid Ring Vacuum Pump (PL - Series)
Price: 1458.0 INR
Availability: InStock

Price: 1458.0 INR / Number

Get Latest Price

Minimum Order Quantity :

10 Number

In Stock

Product Specifications

Features	Corrosion resistant, low maintenance, smooth and vibration-free operation, reliable for continuous duty, self-priming, handles liquid entrainment, simple design.
Control System	Manual/automatic control options; PLC integration possible for process automation.
Valve Size	Depends on suction/discharge port configuration; typically matched to port size.
Connection Type	Flanged end connection as standard; other types on request.
Valve Type	Non-return valves (NRV) and isolating valves on inlets/outlets as per application; pump does not contain internal valves.
Material	Cast iron, stainless steel (SS 304/316), brass (for wetted parts as per process needs).
Application	Industrial vacuum generation, process industries, filtration, drying, chemical and pharmaceutical applications, paper and pulp industry, sugar industry, gas compression.
Sealing	Mechanical seal or gland packing type (depends on customer requirement and process fluid).
Structure	Other, Robust, horizontal, single-stage/dual-stage liquid ring design with a cylindrical casing and integrated flanged connections.
Voltage	Standard supply 415V, 3 Phase, 50Hz (custom voltages available on request).
Type	Liquid Ring Vacuum Pump (PL Series).
Power	Other, Ranges typically between 3 HP to 100 HP or more, depending on model size; specify based on application.
Pressure	Other, Ultimate vacuum up to 710 mm Hg (abs); discharge pressure up to 2 bar(g) (varies by model).
Media	Other, Air, gas, vapor, and certain process gasses; handles wet and saturated vapors.
Port Size	Varies based on model size; large flanged suction and delivery ports (example: 4 to 12 inches).
Temperature	Operating temperature up to 80C (varies with process application).
Disc	Not applicable (rotor vanes used instead of discs).
Pin	Not specifically applicable (not a pin-based assembly).
