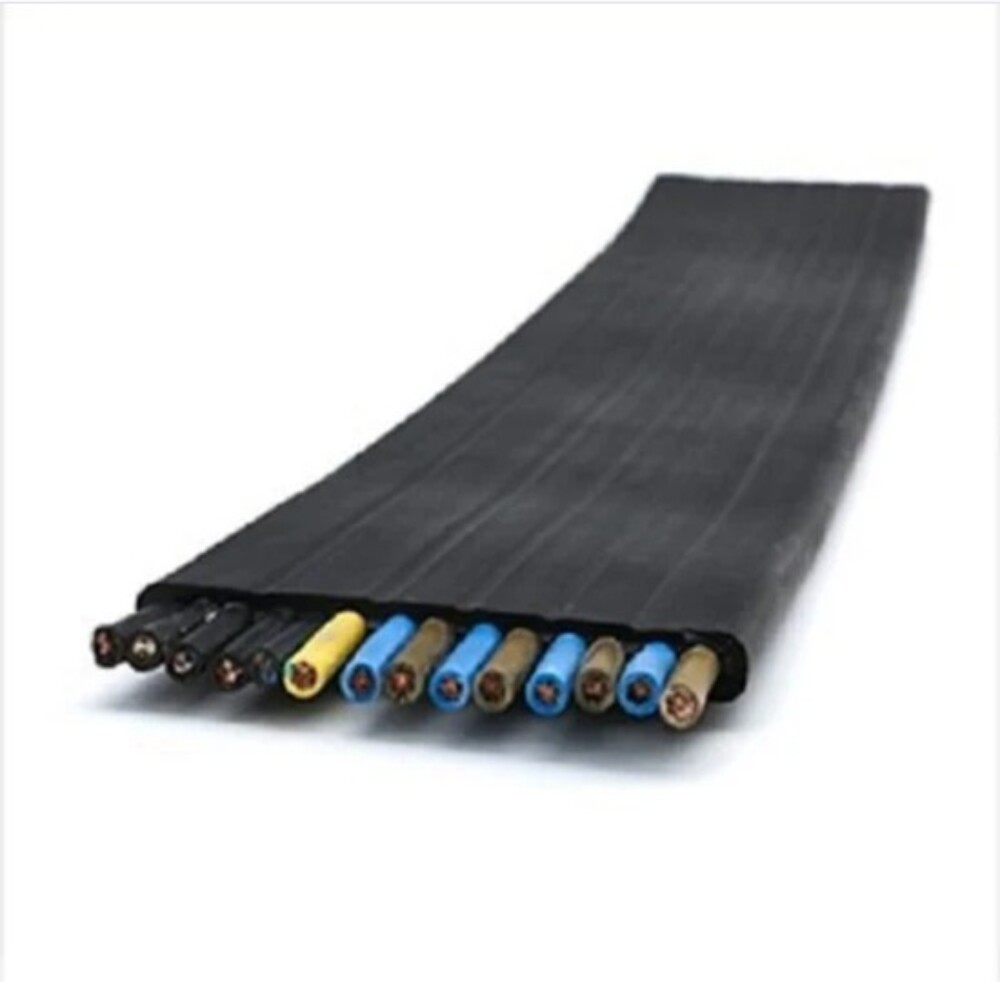

Lift Flat Cables - Application: Industrial

Lift Flat Traveling Cable Short Specification

Application: Power, control, and signal transmission for elevator systems

Construction: Flat, flexible multi-core traveling cable

Conductors: Stranded annealed copper, Class 5 (flexible)

Insulation: PVC / XLPE (as specified)

Sheath/Jacket: PVC, oil-resistant and flame-retardant

Core Arrangement: Power cores + control cores (customizable)

Rated Voltage: 300/500 V or 600/1000 V

Operating Temperature: 15 C to +70 C (typical)

Bending Radius: 10 cable thickness

Standards: EN 50214 / IEC 60227 / IS 694 (or equivalent)

Installation: Suitable for medium and high-rise lift applications

Optional Features:

Steel wire or textile suspension member

Twisted pairs / shielded cores

Halogen-free, low smoke (LSZH)
