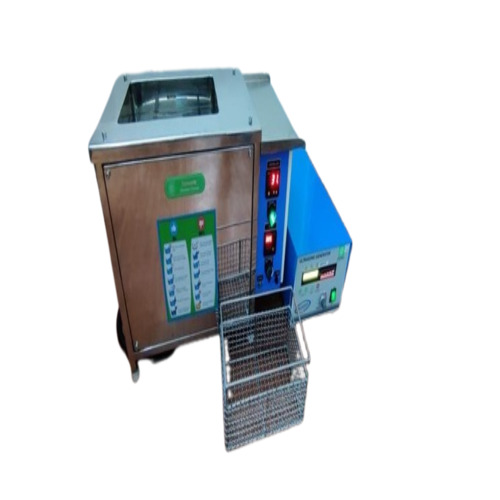

Jig Fixture Cleaning Machine For Stencil

Being a reckoned name in the industry, we are engaged in exporting, manufacturing and supplying a huge spectrum of Jig Fixture Cleaning Machine for Stencil in Shenzhen, Guangdong, China. CW-5100 is my company independent research and development, production of high-precision cleaning equipment, mainly for SMT furnace governance, back to the furnace condenser, filter, wave soldering chain, jaws and other regular cleaning; the current large customers are: Quanta Computer, Wistron Capital, China-computer, Brazil Xierkang, Panasonic electronic parts and so on.

Advantage:
1.One-touch operation,no need to special cleaning staff
2.Batch cleaing,cleaning fast and efficient
3.No electricity ,all pneumatic cleaning,100% safe
4.Up and down, around the full range of cleaning,cleaning thoroughly,high cleanliness
5.Suitable for a variety of cleaing fluid

Specification:
a cCleaning basket size i I 1000mmA 200mm(H) , Maximum cleaning height i 450mm, Special size should be customized
a cCleaning fluid capacity i 80Li maximum i
a cRinse fluid capacity i 80Li maximum i
a cCleaning method i Spray Rotary Cleaning
a cDry way i Compressed air dry
a cRecommended cleaning time i 3-15mins
a cRecommended cleaning and drying time i 2-3mins
a cRecommended rinse time i 1-2mins
a cRecommended drying time i 3-6mins
a cCleaning filter i Using 3-level filtration
a cClass 1 filter i 2mmi Filter debris i
a cLevel 2 filter i 100umi Primary filter flux, iron and other lumps i
a cLevel 3 filter i 20umi Filter flux, rosin and so on i
