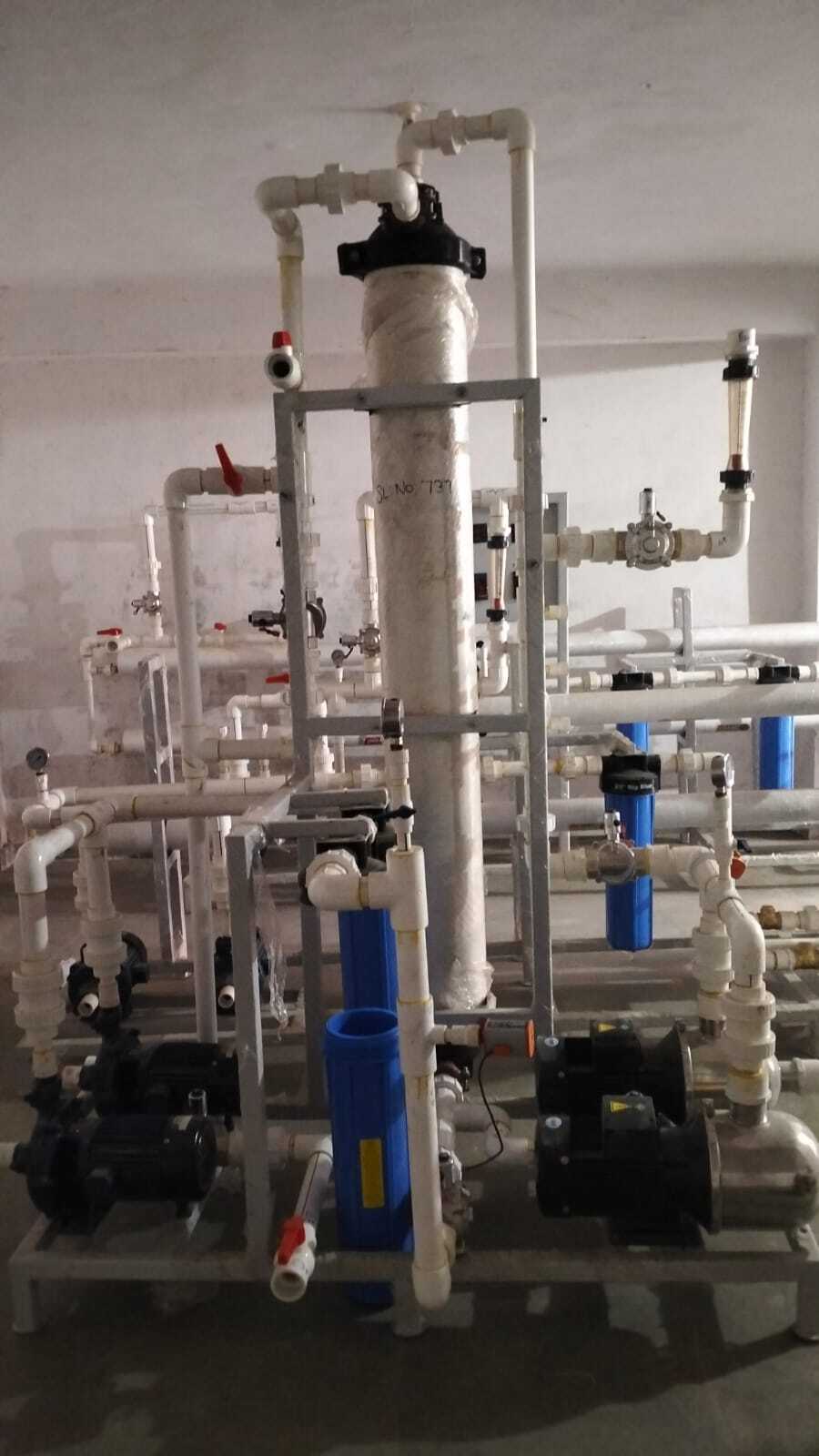

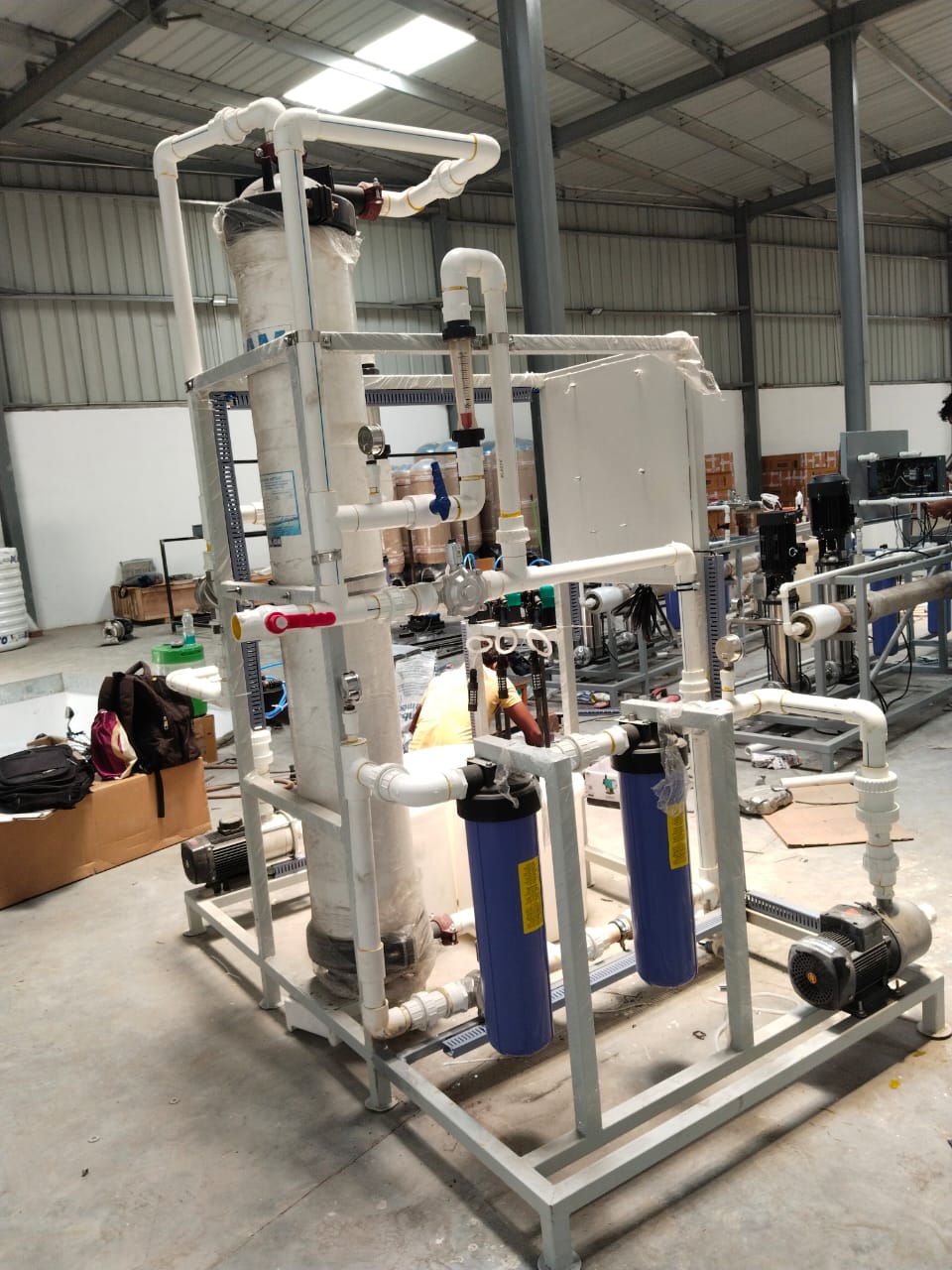

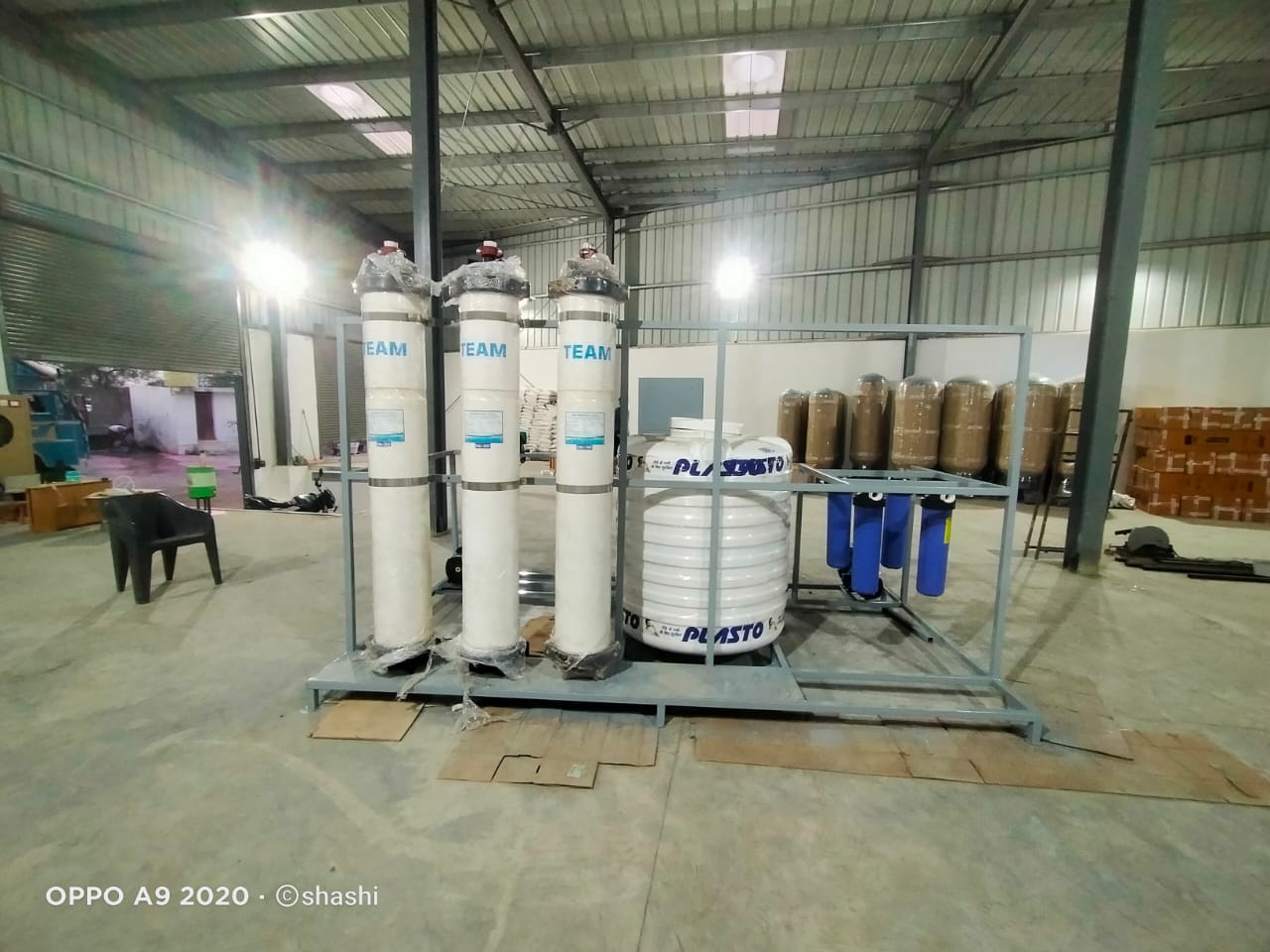

Industrial Ultrafiltration System Uf Plant - Color: White

What is an Ultrafiltration (UF) System?
Ultrafiltration (UF) is a type of membrane filtration process that removes particles, bacteria, viruses, colloids, and other contaminants from water or liquids. The system uses a semi-permeable membrane to separate suspended solids, microorganisms, and large solutes from water. It operates at the molecular level, typically with pore sizes ranging from 0.01 to 0.1 microns, which allows it to filter out particles much smaller than what is removed by traditional filtration methods, such as sand filters.

Key Components of an Ultrafiltration System:
Membrane: The heart of the ultrafiltration system, which allows certain particles to pass through while blocking others. These membranes are made from materials such as polysulfide, polyvinylidene fluoride (PVDF), or ceramic materials.

Feed Water: The raw water or liquid being treated, which can contain various contaminants like bacteria, suspended solids, and large molecules.

Permeate: The treated water or liquid that has passed through the membrane. This is the clean water that has been filtered of impurities.

Concentrate (Retentate): The water that remains after filtration. It contains the contaminants, particles, and solutes that have been rejected by the membrane.

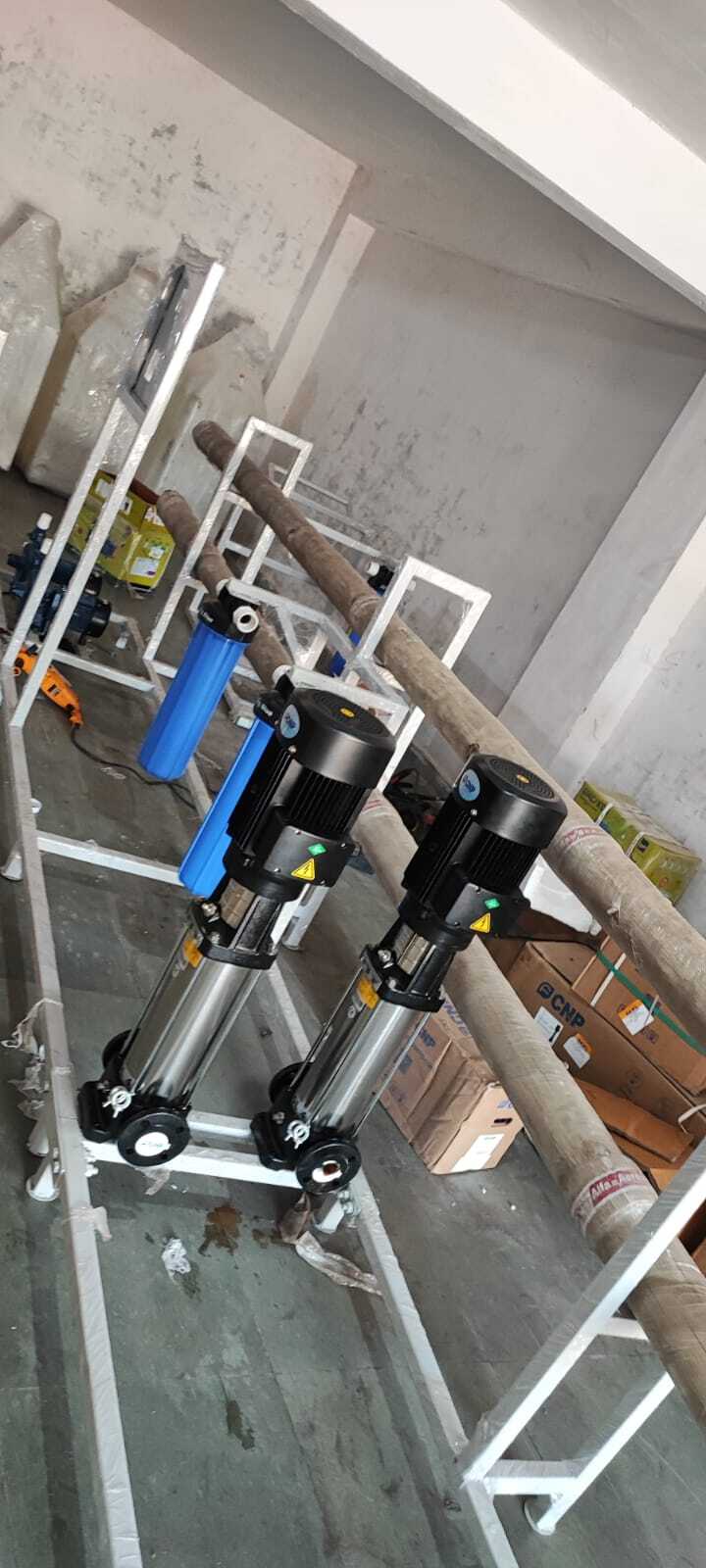

Pump: Often used to force water through the membrane under pressure to ensure proper filtration.

Working Principle:

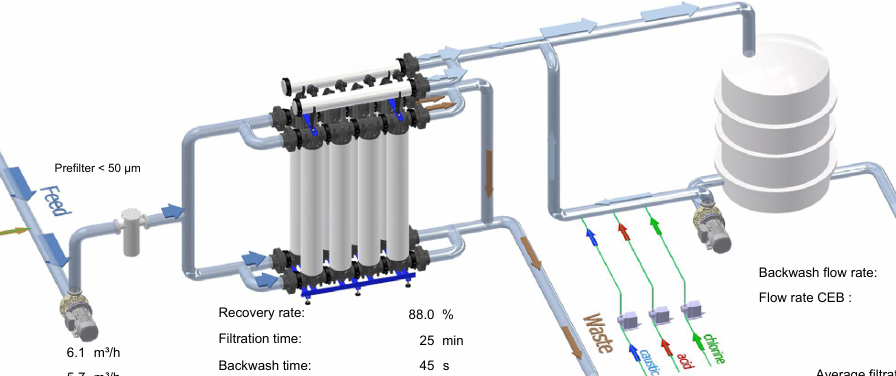

Ultrafiltration operates on the principle of cross-flow filtration, where the feed water flows parallel to the membrane surface. As water passes through the membrane, smaller molecules (such as water molecules, salts, and small organic compounds) can pass through the pores, while larger particles (like bacteria, viruses, and suspended solids) are retained on the membrane surface.

Applications of Ultrafiltration:
Water Treatment:
Drinking water purification
Wastewater treatment and recycling
Desalination pre-treatment (removes larger particles before reverse osmosis)
Food and Beverage Industry:
Dairy industry (e.g., milk and whey filtration)
