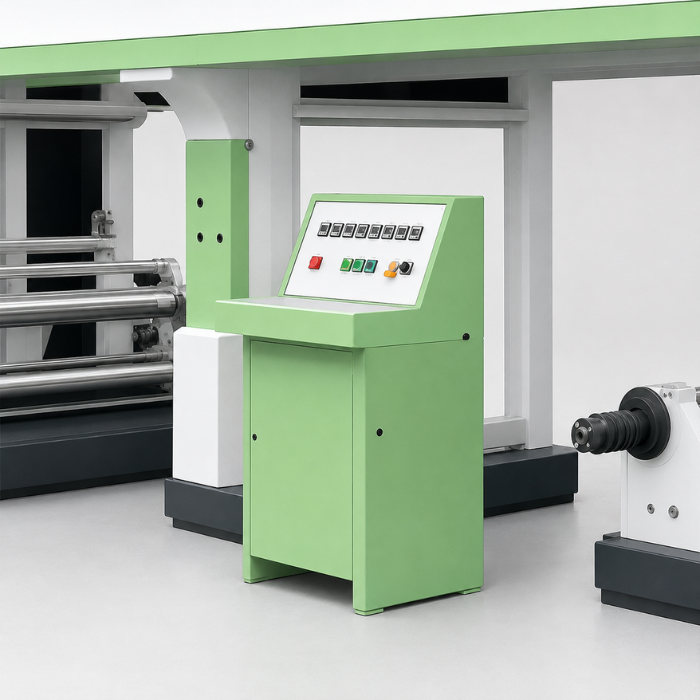

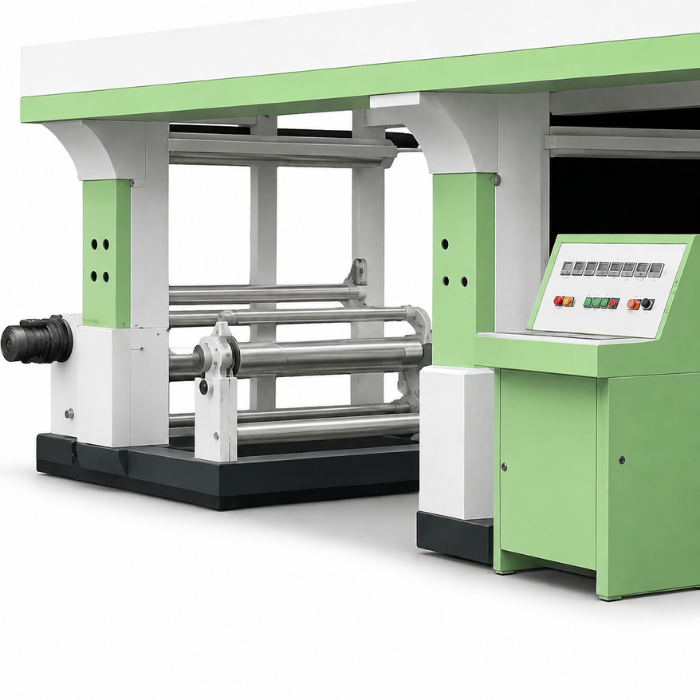

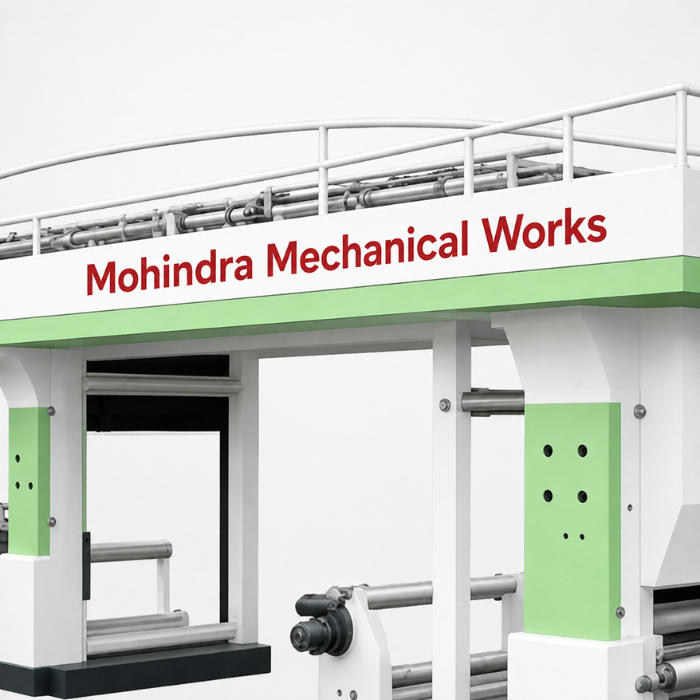

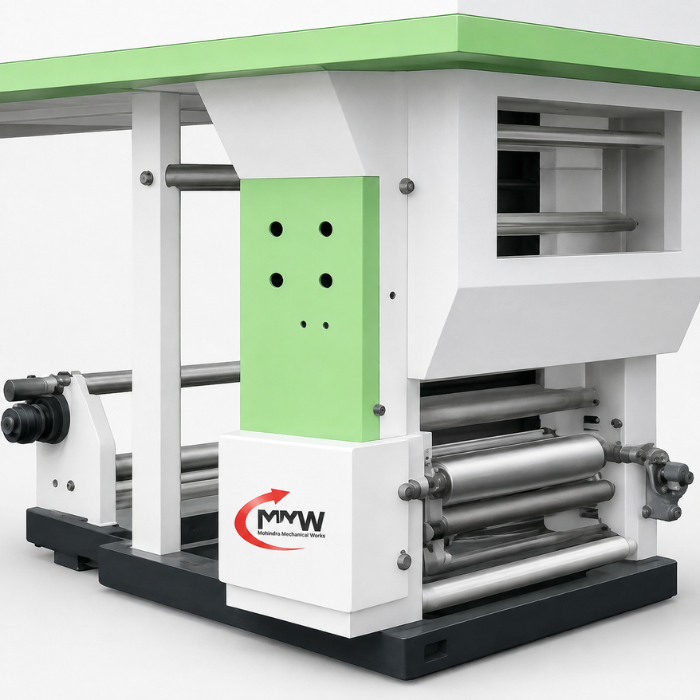

Induction Wads Lamination Machine - Automatic Grade: Automatic

Induction Wads Lamination Machine - Automatic Grade: Automatic

Name: Induction Wads Lamination Machine
Price: 1534000 INR
Availability: InStock

Price: 1534000.00 INR / Piece

(1300000.00 INR + 18% GST)

Get Latest Price

MRP:

1534000.00 INR / Piece

Weight :

12000.00 Kilogram

1 Pack Contains :

Minimum Pack Size :

In Stock

-1+

Product Specifications

Coating Type	Aluminium-Foil Induction-Wad Lamination
Registration	Automatic Web Alignment
Coating Format	Roll-to-Roll
Max Film Width	1600 mm
Lamination Speed	Up to 100 Metres per Minute
Machine Speed	Up to 100 m/m
Color	White, Green or Customized
Membrance Core Size	3 Inches or 6 Inches
Sheet Thickness	20 50 Microns
Min. Sheet Area	As per Customer Requirement
Max Lamination Temp	180 C
Coating Transfer Method	Heated-Roller or Precision Coating and Nip Lamination
Power Requirement	80 150 kW
Max. Coating Area	Full Web Width
Varnish Type	Aluminium-Foil Induction-Wad Lamination
Max. Sheet Area	32 Inch
Feeding Type	Continuous Roll Feeding
Product Type	Wax Lamination Machine

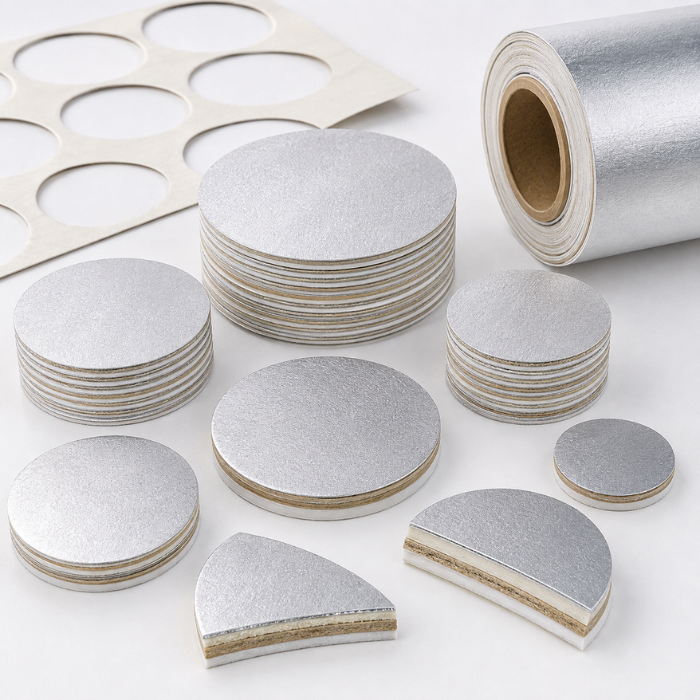

General Use	Laminating Aluminium Foil with Induction-Wad Backing Material
Material	Stainless Steel
Automatic Grade	Automatic
Type	Adhesive Coating Machine, Other
Coating Speed	Up to 100 m/m
Coating Head	Other
Coating Width	Up to 1600 Millimeter (mm)
Coating Material	Other
Computerized	No
Weight (kg)	10000 Kilograms (kg)
Automatic	Yes
Control System	PLC Control
Capacity	300 Kg/hr
Power Source	Electric
Feature	High Efficiency, Low Noise, Lower Energy Consumption, Touch Screen, Simple Control, High Performance, ECO Friendly
Power Consumption	80 150 Kilowatt (kW)
Heating System	Hot Air
Drive Type	Pneumatic
Type of Rollers	Chrome-Plated Steel and Rubber Nip Rollers
Voltage	440v Volt (v)
Humidification System	No
Speed	100 m/m
Input Paper Size	Up to 1600 mm Roll Width
Glue Type	Water Based
Rewinder Type	Duplex Rewinder
Suitable Paper	Pulpboard, Duplex Board, Coated Paper and Glassine Paper
Unwinder Type	Duplex Unwinder
Rewinding Width	Up to 1600 Millimeter (mm)
Unwinding Width	Up to 1600 Millimeter (mm)
Dimension (LWH)	1600 450 480 Centimeter (cm)
Warranty	1 Year
FOB Port	ICD Tughlakabad, Delhi
Payment Terms	Cash on Delivery (COD), Cheque, Others
Supply Ability	2 Per Month
Delivery Time	60 Days
Sample Available	No
Sample Policy	Contact us for information regarding our sample policy
Packaging Details	The machine is covered with waterproof protective wrapping. Lamination assemblies, precision rollers, heating units, unwinders, rewinders, electrical panels, motors and sensitive components are properly protected. Major sections are securely fastened on wooden or steel supports for safe transportation by road or sea.
Main Export Market(s)	Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
Main Domestic Market	All India
Certifications	ISO 9001:2015 Certified, CE Certified Standard Machinery
Unit Type	Piece/Pieces
Pkg Box Height	480.00 cm
Price Type	fixed
GSTIN	18%
Color	White, Green or Customized
Weight	12000.00 Kilogram
Currency	INR
Pkg Box Length	1600.00 cm
Pkg Box Breadth	450.00 cm
Brand Name	Mohindra Mechanical Works
Shipping Type	actual
Mop	1
Returnable	No
MRP	1534000.00 INR
Stock Quantity	1
Packsize	1
Price	1300000.00 INR (Approx.)
Minimum Ordered Packs	1
