Induction Cap Sealing Machine - Automation Grade: Semi Automatic

Example Machines

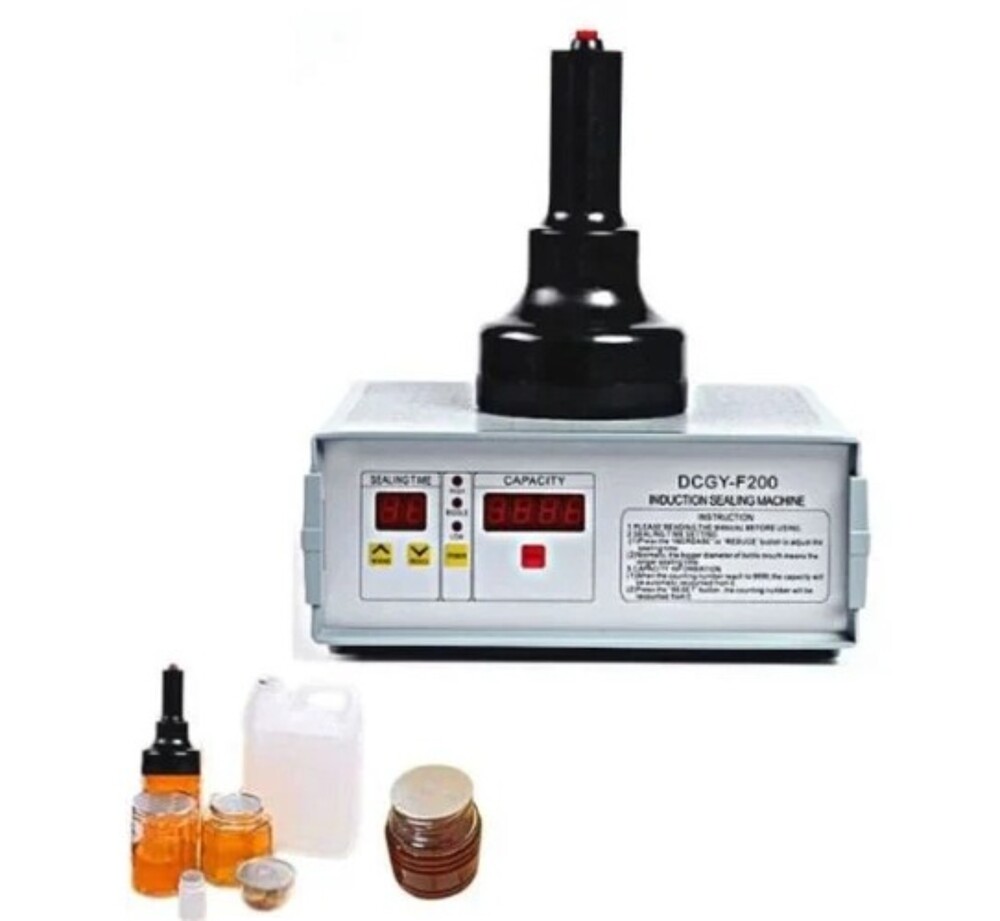

1. Portable / Manual Model
Sonic Industries DGYF-200 Induction Sealing Machine 4,581
Compact handheld induction cap sealer for small-scale bottle sealing operations.
2. Fully Automatic Industrial Model
Commercial Automatic 20120 mm Induction Cap Sealing Machine 2,34,750
High-speed conveyor-based automatic induction sealing machine for industrial packaging lines.
General Specifications (Induction Cap Sealing Machine)
1. Basic Details
Machine Type: Induction Cap Sealer (Manual / Semi-auto / Automatic)
Operation: Non-contact electromagnetic induction sealing
Application: Sealing bottles with aluminum foil-lined caps (PET, HDPE, glass)

Induction sealing creates a hermetic (airtight) seal that prevents leakage and contamination.

2. Technical Specifications
ParameterTypical Range
Power Supply220V, 50/60 Hz
Power Consumption500 W 3 kW
Sealing Diameter20 mm 120 mm (can go higher in industrial models)
Sealing SpeedManual: 1030 bottles/min
Automatic: 50200 BPM
Line Speed (Auto)Up to 1230 m/min
Cooling SystemAir-cooled / Water-cooled
Cap TypeScrew caps with foil liners
Bottle MaterialPlastic, Glass
Machine Weight5 kg (portable) to 150+ kg (industrial)

Some machines can seal 20120 mm caps without change parts, improving flexibility.

3. Key Features
Non-contact sealing (no contamination risk)
Adjustable power & sealing time
Digital control panel / PLC (advanced models)
Overheat & fault protection system
Conveyor system (automatic machines)
Air-cooled systems (modern machines, no water needed)
"No bottle No sealing safety feature
4. Types of Induction Sealing Machines
Manual / Handheld
Low cost
Suitable for small production
1030 bottles/min
Semi-Automatic
Table-top with higher power
Moderate production
Automatic (Inline Conveyor Type)
Fully integrated with filling & capping line
Up to 200 bottles/min
Used in large industries

Example: Inline machines can reach 100 feet/min line speed in high-end models.

5. Applications
Food & beverages
Pharmaceuticals
Cosmetics
Chemicals & lubricants

Induction sealing is widely used because it:

Prevents leakage
Extends shelf life
Provides tamper evidence
Summary

An induction cap sealing machine typically offers:

Cap size range: 20120 mm
Speed: 10 to 200 bottles/min
Power: 0.53 kW
Fully automatic, contamination-free sealing

If you tell me your production capacity (bottles per hour), cap size, and product type (oil, powder, liquid), I can recommend the exact machine type (manual vs automatic) for your setup.
