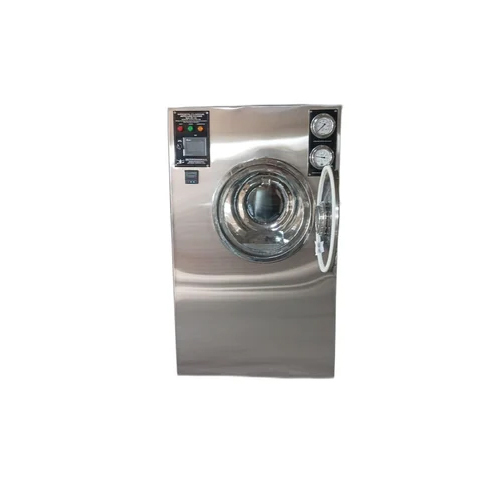

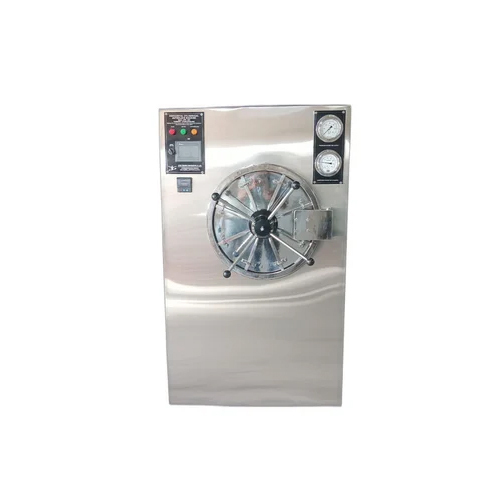

Horizontal Cylindrical Fully Automatic Autoclave Machine - Material: Metal

Horizontal Cylindrical Fully Automatic Autoclave Machine - Material: Metal

Price: 350000.00 INR / Unit

(350000.00 + 0% GST)

Get Latest Price

1 Pack Contains :

Minimum Pack Size :

In Stock

-1+

Product Specifications

Usage	Industrial
Material	Metal
Voltage	220-440 Volt (v)
Operate Method	Automatic
Product Type	Horizontal Cylindrical Fully Automatic Autoclave Machine
Outer Size	1850mm x 750mm x 950mm (customizable)
Compressed Air	0.5-0.7 MPa required for automatic operation
Door Type	Horizontally sliding or hinged, fully automatic door
Outer Trolley	Heavy duty stainless steel outer trolley for chamber loading
Inner Trolley	Perforated stainless steel inner trolley for optimum circulation
Spraying Piping	High-grade SS 304/316 piping for uniform steam distribution
Steam	External or built-in steam generator compatible
Sterilizing Temperature	121C to 134C (configurable)
Sterilization Time	10-60 minutes adjustable
Temperature Scope	Ambient to 134C
Piping System	Corrosion-resistant SS 304/316 sanitary piping
Insulation	High-density glass wool or ceramic blanket
Net Weight	Approx. 600 kg (varies with chamber size)
Recording Parameters	Digital print-out/Data logger for Pressure, Temperature, and Time
Spraying Mode	Uniform spray distribution system
Type	Horizontal Cylindrical, Fully Automatic
Working Temperature	Up to 134C
Power Consumption	8-18 kW (depending on capacity)
Chamber Size	450mm x 1200mm (other sizes available)
Design Pressure	2.5 kg/cm2
Working Pressure	1.2 to 1.5 kg/cm2
Design Temperature	140C
Heat Uniform	2C uniformity inside chamber
Valves	Heavy-duty safety, vacuum, and release valves
Chamber Thickness	6-10 mm SS 304/316 (as per standards)
Payment Terms	Cash Advance (CA)
Supply Ability	10 Per Month
Delivery Time	20 Days
Main Domestic Market	All India
Unit	1
Unit Type	Unit/Units
Moq	1
Price	350000.00
Selling Price	350000.00
Brand Name	STAR TECHNO ENGINEERING PRIVATE LIMITED
Currency	INR
Packsize	1
Mop	1
Is Freight Charges
GSTIN	0%
