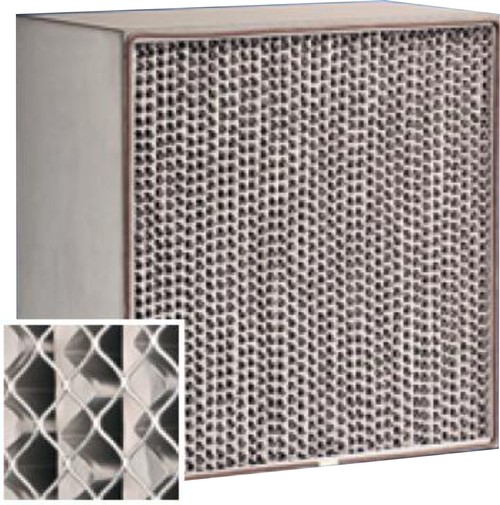

SPECIFICATION

Efficiency

99.97% for filtering out particles down to 0.3 microns, which is rated as H13 in accordance to EN 1822 standard

Filtration Class

Fed 209E Class 100 or more recent ISO class 5 in accordance to ISO defined 14644 cleanroom standards can be achieved using this filter

Frame Type

Available in deep pleated flange or box type

Frame Material

Standard model is constructed in anodized aluminium frame. SS 304/Galvanized steel frame with or without powder coating are also available on order.

Filter Media

100% Sub-Micronic boro-silicate glass fibre media

Gasket

Neoprene rubber or silicone coated gasket is used

Separators

Corrugated aluminium seperators are used

Sealant

Epoxy resin or Polyurethane based sealant is used

Face Guard

An optional perforated metal or expanded metal guard (with or without powder coating) to protect the face of the filter, is available on request

Pressure Drop

Initial pressure drop ~20mm WG and recommended final pressure drop is ~60mm WG

Operating Conditions

Filter can withstand temperature up to 110^oC and relative humidity of 100%
