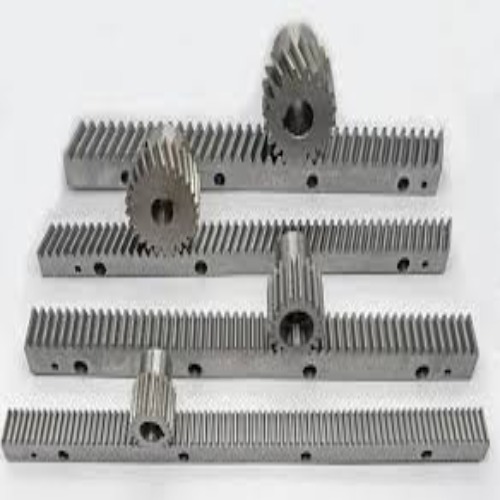

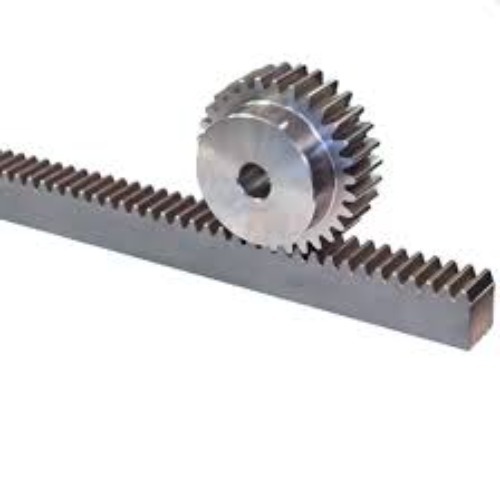

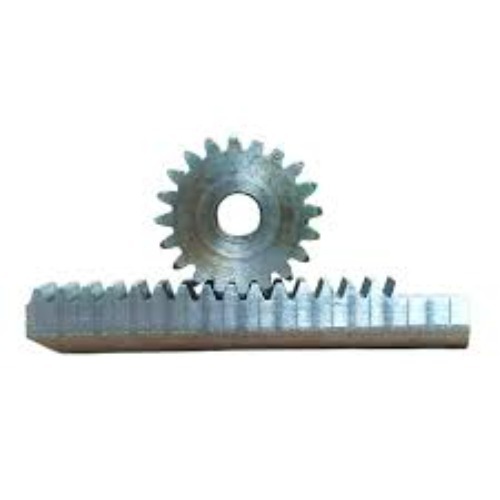

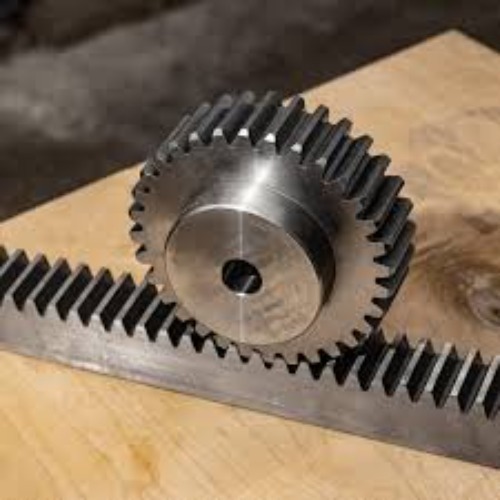

Helical Rack & Pinion - Color: Natural Steel Finish / Phosphate / Black Oxide
Price: 2360.00 INR / Piece
(2000.00 INR + 18% GST)
Get Latest Price
MRP:
2360.00 INR / Piece
Weight :
15.00 Kilogram
1 Pack Contains :
1
Minimum Pack Size :
2
In Stock
Product Specifications
| Color | Natural steel finish / phosphate / black oxide |
| Usage | CNC machines, linear actuators, machine tools, automation, material handling, steering mechanisms, lifts |
| Gear Type | Rack Gears |
| Material | Steel |
| Processing Type | Hobbing |
| Size | 1000 MM |
| Height | 1.77 Inch (in) |
| Gear Tooth Profile | Helical Gear |
| Gearing Arrangement | Helical |
| Product Type | Industrial Helical Rack & Pinion (complete set aEUR" rack + matching pinion) |
| Weight | 15 Kilograms (kg) |
| Direction | Right-hand or Left-hand helix (as specified) |
| Output Torque | 31 N-m |
| Length | 39 Inch (in) |
| Width | 1.77 Inch (in) |
| Rated Power | 50 WM |
| Input Speed | 30-3000 RPM |
| Output Speed | 40-3500 RPM |
| Efficiency | 98% |
| FOB Port | TKD |
| Payment Terms | Cash Against Delivery (CAD) |
| Supply Ability | 20 Per Month |
| Delivery Time | 1 Week |
| Sample Policy | Contact us for information regarding our sample policy |
| Packaging Details | CORRUGATED CORASIS |
| Main Export Market(s) | Middle East |
| Main Domestic Market | All India |
| Certifications | Helical rack and pinion systems, as precision mechanical components, do not typically have a single, universal product-level certification. Instead, their quality and performance are guaranteed by the manufacturer's quality management system and their adherence to strict industry standards.Key Certifications and Quality AssurancesISO 9001 Certification: A reputable manufacturer of helical rack and pinion systems will be ISO 9001 certified. This assures that the company has a robust Quality Management System (QMS) in place, which governs the entire production process from design to final inspection.Gear Quality Standards: The quality and accuracy of the rack and pinion are defined by their compliance with international standards that govern gear geometry, tolerances, and quality grades. These standards include:ISO 1328: This standard specifies the tolerances for gear teeth, which is crucial for ensuring smooth operation and minimal backlash.AGMA 2015: This standard from the American Gear Manufacturers Association specifies the gear quality grades for helical gears, ensuring the product meets specific performance criteria.Material and Manufacturing Certification: The quality of the system is also based on the material used (typically hardened steel) and the manufacturing process. Manufacturers often provide a material test report to certify the material's composition and a report on the heat treatment process to ensure the required hardness and wear resistance. |
| Pkg Box Breadth | 1.77 inches |
| Price Type | fixed |
| Moq | 2 |
| Brand Name | Macro Trading Corporation |
| Product Unit | 2 Piece/Pieces |
| Shipping Rate | 18.00 |
| Currency | INR |
| Shipping Type | order_percent |
| Color | Natural steel finish / phosphate / black oxide |
| Mop | 2 |
| MRP | 2360.00 INR |
| Returnable | No |
| Pkg Box Height | 1.77 inches |
| Packsize | 1 |
| Unit Type | Piece/Pieces |
| GSTIN | 18% |
| Weight | 15.00 Kilogram |
| Price | 2000.00 INR (Approx.) |
| Stock Quantity | 10 |
| Pkg Box Length | 39.00 inches |
| Minimum Order Quantity | 2 |
| Minimum Ordered Packs | 2 |
Product Overview
Key Features
Processing Type: CNC Machined / Precision Ground / Hardened & Tempered
Gear Tooth Profile: Helical (Involute Profile, 14.5 / 20 Pressure Angle)
Direction: Left Hand / Right Hand Helix
Gearing Arrangement: Helical Rack & Pinion (Linear to Rotary Motion Conversion)
Module Range: 1 20 Module (as per requirement)
Pitch Accuracy: DIN 6 DIN 10 (custom available)
Length of Rack: 250 mm 3000 mm (extendable with joints)
Pinion Diameter: 20 mm 500 mm
Load Capacity: Up to 50,000 N (depending on module & material)
Efficiency: 90% 98%
Surface Treatment: Black Oxide / Phosphated / Ground / Customized
Product Type: Industrial Gear Rack & Pinion
Color: Natural Steel / Black / Customized
Weight: As per size & material (1 kg 200 kg approx.)
Usage & Applications: CNC Machines, Lifts, Elevators, Machine Tools, Automation, Heavy Machinery
Features: High Precision, High Load Capacity, Smooth Transmission, Low Noise
Company Details
We GURU NANAK MACHINE TOOLS are engaged in manufacturing and supplying of quality range of industrial using equipments since 1980. The company stated giving excellent machine tools products in different states of Indian market. These products are designed with precision and are widely used automobile sector, textile industry and marine industry. Having vaste experience of 40 years, We are quality conscious company, which believes in delivering quality equipments to our esteemed clients In related industries. Hi-tech facilities, proven expertise, and assiduous professionals have enabled us to offer machining components as per international quality standards. Be it non-cylindrical or special component, our professionals provide solution to all work holding problems. We provide regular training to our professionals so that they can undertake calibration and retrofitting services with ease and accuracy. Our Products are manufactured at a most sophisticated plant well equipped with modern CNC machines and with updated measuring instruments. Strict quality control measures applied from raw materials purchase, its inspection, machining, heat treatment, fitting, final inspection and despatch assure international level quality to the satisfaction of our valued customers.
Business Type
Exporter, Manufacturer, Supplier, Trading Company, Wholesaler
Employee Count
10
Establishment
1982
Working Days
To
GST NO
07AAUPS5242C1ZH
Payment Mode
Wallet & UPI, Cheque/DD, Online Payments (NEFT/RTGS/IMPS)
