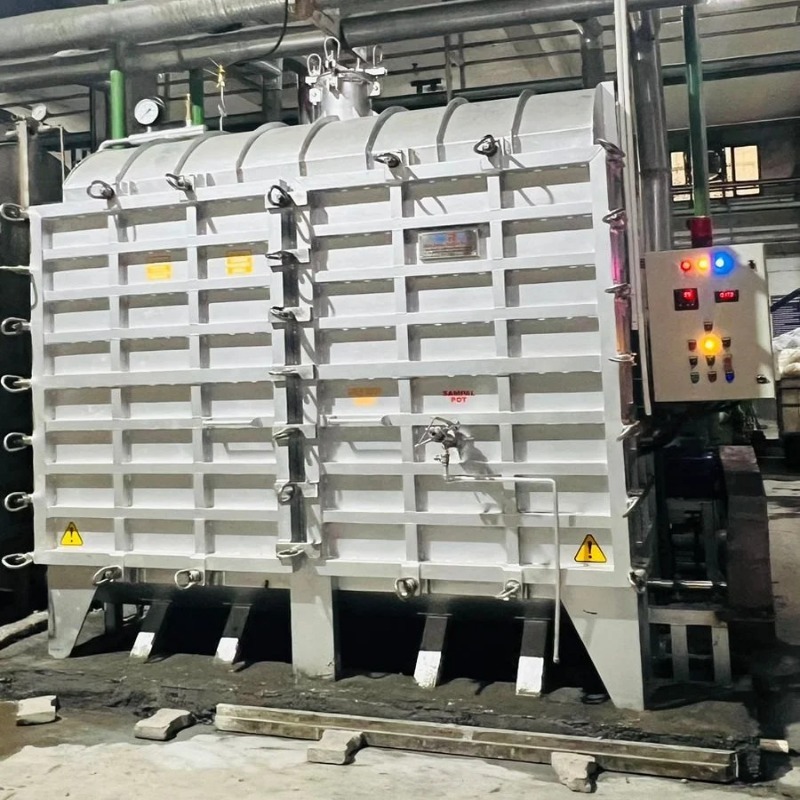

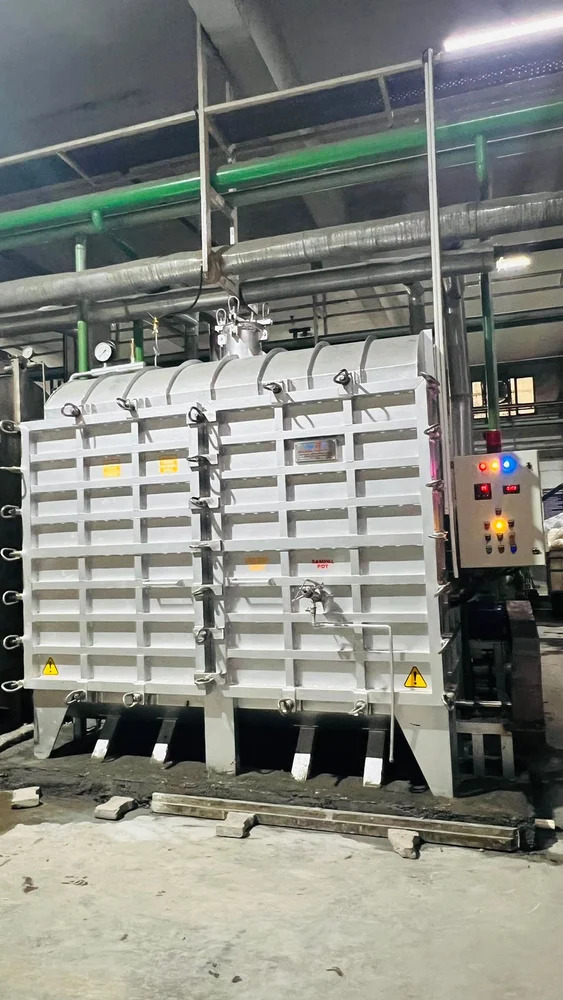

Hank Dyeing Machine - 1570x2500x2020 Mm | 220/110/380 Voltage, 50-140 Kg Weight, 500 Power

Presenting our range of most popular Hank Dyeing Machine, these machines are designed to have liquor flow parallel to the yarn and they work with low liquor ratios to save substantially in consumption of thermal energy ,water and chemicals.The material to be dyed in hanks is loaded on the sticks ,generally two sticks are used one at the top and other at the bottom. The bottom stick is used to avoid the yarn entanglement during the liquor flow. The carriers are loaded with the sticks having hanks ,the sticks are supported into slots made in the body of the carrier.
The loaded carriers are then put into the dyeing machine and door is closed. In a second variant of the machine , the machine is open at the top and career is loaded from the top , which ,a rubber gasket is provided around the periphery on which the machine career rest, and vessel is sealed by the weight of the career and material, thus making closed circuit. The liquor circulation and flow remains the same as in ordinary cabinet machine.

The dye liquor in these machines moves while the material remains stationary. The flow direction is reversed frequently to ensure level dyeing.

A cabinet dyeing machine consists of following main components,

1.Main dyeing vessel made of SS
2.Carriers for loading of hanks with SS sticks for loading of hanks.

3.An internal axial pump or an external pump for liquor circulation.

4.An indirect heating system(with internal or external heat exchanger)

5.An addition tank with injector pump

6.Preparation tank

7.An internal or external sampling device
8.Color kitchen

Additional Information:

Item Code: Herodmw



Robust Construction and Material Quality

Built from Stainless Steel 316/304, the Hank Dyeing Machine provides excellent corrosion resistance and durability. The mirror-polished inner surface prevents dye residue build-up and simplifies cleaning, ensuring high hygiene standards. High-density mineral wool insulation retains heat efficiently, reducing operational energy costs.


Advanced Safety and Control Systems

Equipped with pressure release valves, an emergency stop, temperature cut-off mechanisms, and an automatic lid lock, the machine prioritizes operator safety. Automated and PLC-controlled systems alongside a digital/touch panel interface make process management intuitive and precise.


Superior Performance and Efficiency

The high-efficiency circulation pump delivers uniform dye liquor distribution with a low liquor ratio, ensuring consistent and even dyeing results for every batch. The adjustable speed and energy-efficient design accommodate varying process requirements while minimizing resource consumption.

FAQ's of Hank Dyeing Machine:

Q: How does the Hank Dyeing Machine ensure uniform dyeing of yarn hanks?
A: The machine employs a high-efficiency centrifugal circulation pump that continuously moves dye liquor through the yarn hanks. This technology, combined with a low liquor ratio and precise process control, guarantees consistent and thorough dye penetration for uniform coloration.

Q: What materials can be dyed using this machine?
A: This dyeing machine is suitable for a wide range of yarn hanks, including cotton, polyester, silk, wool, acrylic, and blended fibers. It is specifically designed to accommodate different types of yarn for diverse textile production needs.

Q: When and where is on-site installation and training available?
A: We provide on-site installation and user training across India. Once the machine is delivered, a professional team will assist in setting up the system and instruct operators on optimal usage, maintenance, and safety protocols.

Q: What safety features are integrated into this Hank Dyeing Machine?
A: Key safety features include pressure release valves, emergency stop functions, temperature cut-off, and an automatic lid lock. These measures ensure the safety of operators and protect the machine during operation.

Q: How easy is routine maintenance and cleaning?
A: Routine maintenance has been simplified with easy-to-access components and a mirror-polished inner surface that minimizes dye residue. The design is focused on low maintenance requirements, making daily cleaning and periodic servicing efficient for operators.

Q: What are the main benefits of using this Hank Dyeing Machine for textile production?
A: Users benefit from energy efficiency, robust construction, reliable safety mechanisms, and superior dyeing performance. The system is customizable in volume and chamber number, offers low running costs, and delivers excellent results for a broad range of yarn types.
