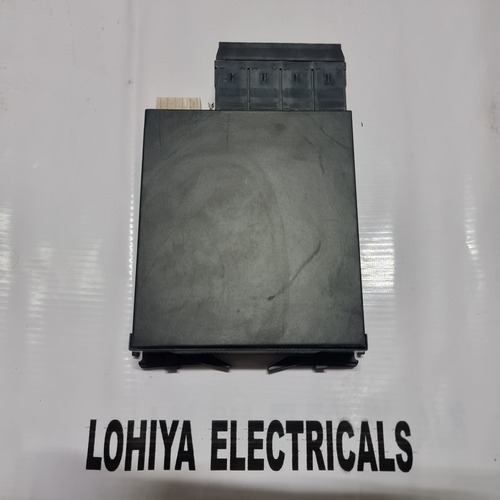

Ge Multilin Ur 8hh Module - Industrial Grade Metallic Panel, 8 High-speed Outputs, <2ms Response Time | Hot Swappable, Self-diagnostics, Surge Protection

Ge Multilin Ur 8hh Module - Industrial Grade Metallic Panel, 8 High-speed Outputs, <2ms Response Time | Hot Swappable, Self-diagnostics, Surge Protection

Get Latest Price

Minimum Order Quantity :

Brand Name :

In Stock

Product Specifications

Output Type	Other, Solid State Output (24 VDC compatible)
Output Current	Maximum 2 A/channel
Connector Type	Pluggable/Terminal Block
Power Supply	24 VDC supplied through backplane
Application	Substation Automation, Protection & Control, Digital Relay Systems
Working Temperature	-40AdegC to +70AdegC
Current Range	Input: 2 mA to 20 mA (per point)
Rated Current	2 A max (per channel)
Cooling Method	Convection
Operating Temperature	-40AdegC to +70AdegC
Features	Hot swappable, Self-diagnostics, Isolation between input/output and processor logic, Compatible with GE UR series
Product Type	Digital I/O Module
Input Voltage	24 V DC (typical)
Voltage Protection	Surge and Overvoltage Protection Integrated
Material	Industrial Grade Components, PCB, Metallic Panel
Storage Temperature	-40AdegC to +85AdegC
Weight	Approx. 400 g

Product Overview

Key Features

Company Details

Business Type

Supplier, Trading Company

Employee Count

Establishment

2009

Working Days

Monday To Saturday

GST NO

24AHSPL3513E1ZI

Payment Mode

Paypal
