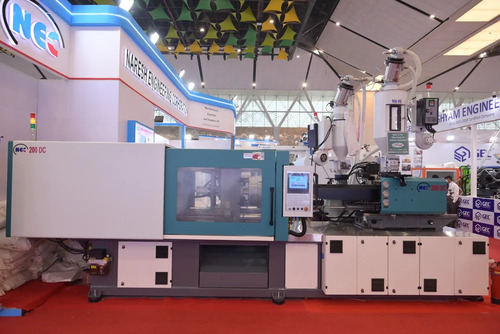

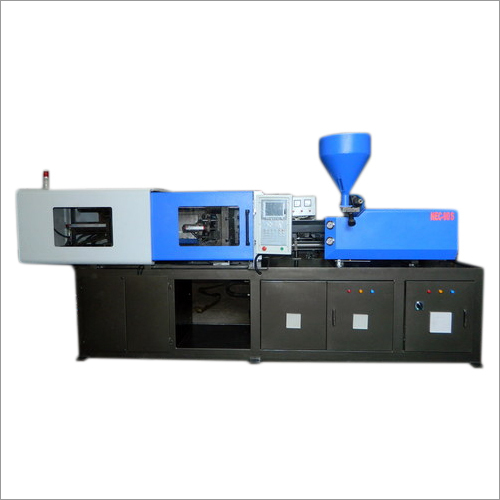

Fully Automatic Injection Moulding Machine By Naresh Engineering Corporation

With our rich industry experience and knowledge, we are actively engaged in offering Injection Moulding Machines. Our offered machines are precisely designed and manufactured by our proficient professionals using supreme quality components as per the set quality standards laid by industry. Our offered machines are highly applauded for their features like rigid construction, excellent performance, reliability and a long functional life. Widely demanded in the industry, these Injection Moulding Machines can be availed from us in different specifications so as to meet the various requirements of customers.

Features:

Ergonomic design
Sturdy construction
Hassle-free performance
Longer operational life
Specifications:


MODEL

NEC-200



A

B

C

INJECTION UNIT







Screw Diameter mm

45

50

55

Screw Ratio l/d

24.4

22

20

Shot Size cm3

397

490

593

Injection Weight(ps) gms

362

446

540

Injection Pressure mpa

207

168

138

Screw Speed r.p.m

155

CLAMPING UNIT



Clamp Tonnage kn

2200

Toggle Stroke mm

475

Tie Bar Diameter mm

90

Space Between Tie Bars mm

520x520

Max.mold Height mm

560

Min.mold Height mm

200

Ejector Stroke mm

150

Ejector Tonnage kn

70

Ejector Number

5

OTHERS



Max. pump Pressure Mpa

16

Pump Motor Power / Servo kw

18.5/20

Heater Power kw

14

Machine Dimension (LxWxX) m

5.7x1.6x2.3

Machine Weight T

7
