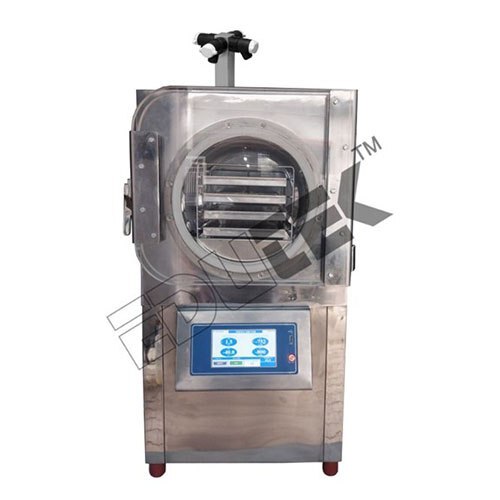

Freeze Dryer Vertical Type - Application: Laboratory Instruments

It is fully customized with the programming required for your application. This includes multiple manageable profiles, each providing the ability to automatically power on and off the condensing unit and the oil-free vacuum pump in conjunction with ascending, controlled temperature and time settings.
Control the rate of freeze, ultimate final freeze temperature, and the duration of time your sample is held at the ultimate freeze temperature before the drying cycle begins.
Control of the shelf temperature during the dry cycle, allowing the material to dry in phases, at different temperatures.
Automatically control the rate of sublimation during the primary drying cycle with shelf heaters.
Through this process, the unit has control of the attendant vacuum pressure. The freeze dryer records and logs the pressure and temperature during the entire freeze-dry cycle for ensured system performance.
Connect the unit to a PC via Ethernet cable for data logging and exporting.
System includes a 7 CFM oil-free scroll vacuum pump which is quiet, fast, and does not require regular user maintenance.
Features:
User-friendly interface provides program customization up to 10 thermal treatment and 12 drying steps.
Constructed with a durable stainless-steel chamber and collector
Large 4.3" full-color, touch-screen display provides real-time pressure and temperature data
Easily connect to a PC via ethernet cable for data logging and communication
Capable of freeze drying as much as a 1-2 gallons of material
Medium freeze dryer has a 4 L sublimated ice holding capacity
Runs on 230Vac VAC 50 Hz VAC power
Technical specification:
Type: Standard Chamber, 4 port manifolds
Cold Trap Temp.: -40C
Temp. Uniformity: 1
Vacuum Degree: 0.1Pa
Condensing Capacity: 3kg/h
Drying Chamber Capacity: 43L
Material Loading Capacity: 3000ml
