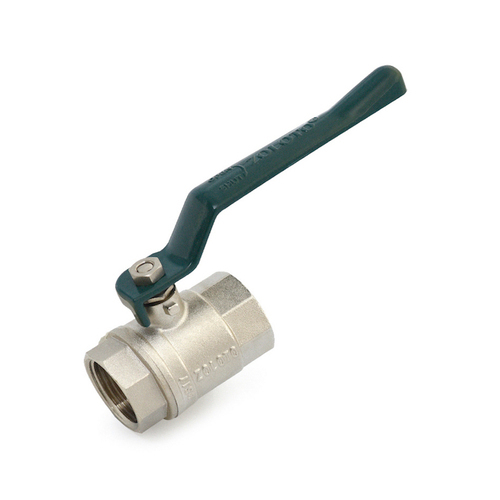

Forged Ball Valve - Astm A 351 Gr. Cf8, Cf8m | Easy Operation, Leak-proof, Rust Resistant, Low Maintenance, Precision Functioning

Our range of Forged Ball Valve is available in size ranges from 1/2" to 6" (15 mm to 150 mm). Designed in conformation with BS 5351standard, the forged ball valve finds application in Oil Processing Plant, Chemical, Petrochemical, Refineries and Sugar Factories. The lever of forged ball valve is made of stainless steel and available with PVC sleeve.

Features:
* Easy operation
* Leak-proof
* Rust resistant
* Precision functioning
* Crack free finish
* Low maintenance


Technical Specification:

* Design & Manufacturing Standard : BS 5351
* Testing Standard: BS 6755 Part-1

Body & Connector:
* ASTM A 351 Gr. CF8, CF8M
* STM A 216 Gr. WCB
* Cast iron
* Cast Steel
* Forged Steel
* Ball: ASTM A 351 Gr. CF8, CF8M
* Stem: AISI 304, AISI316
* Seat & Seal: PTFE
* Ends: Screwed, Flanged, But Weld, Socket Weld
* Lever: SS with PVC sleeve
* Hydro Test Pressure: Body - 425 psig and Seat - 300 psig
* Optional Ends: BS 10 Table D, E, F, ASA 150
* Floating Ball, Blow out Proof Stem
