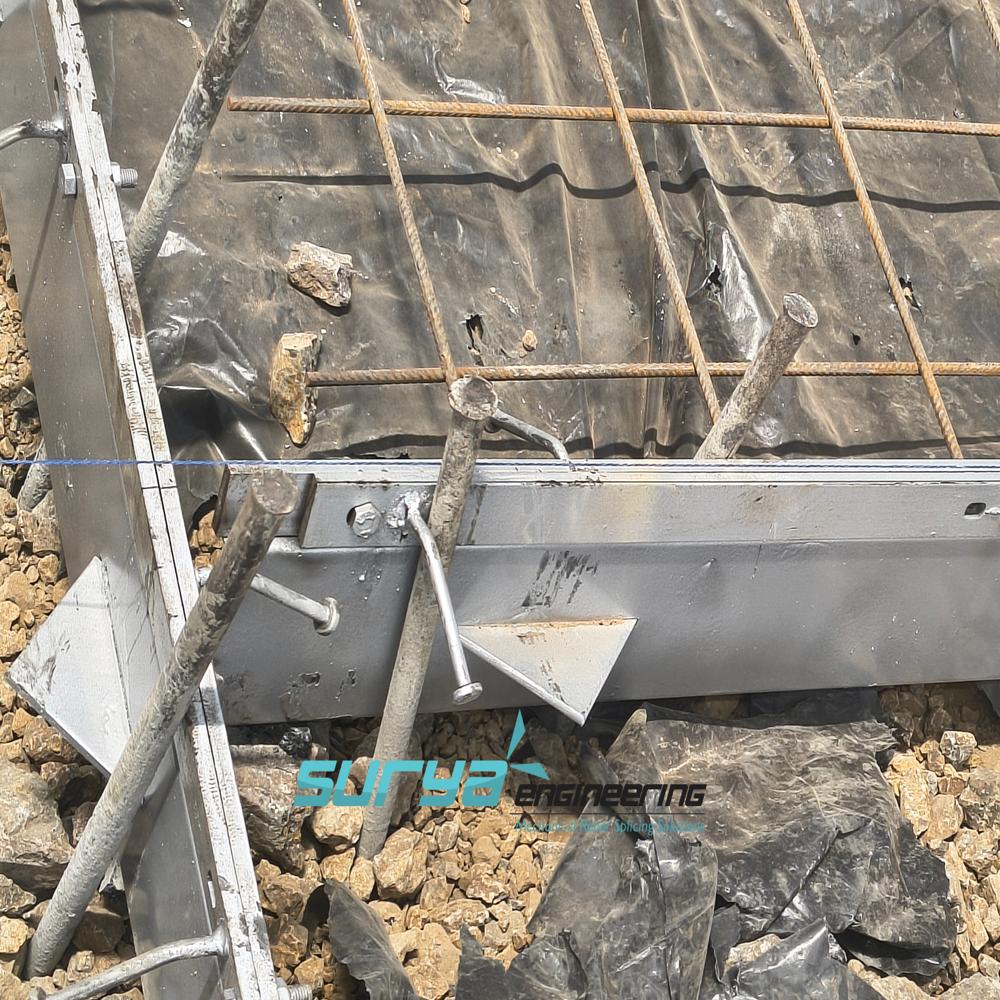

Flooring Armour Joints - Color: Silver

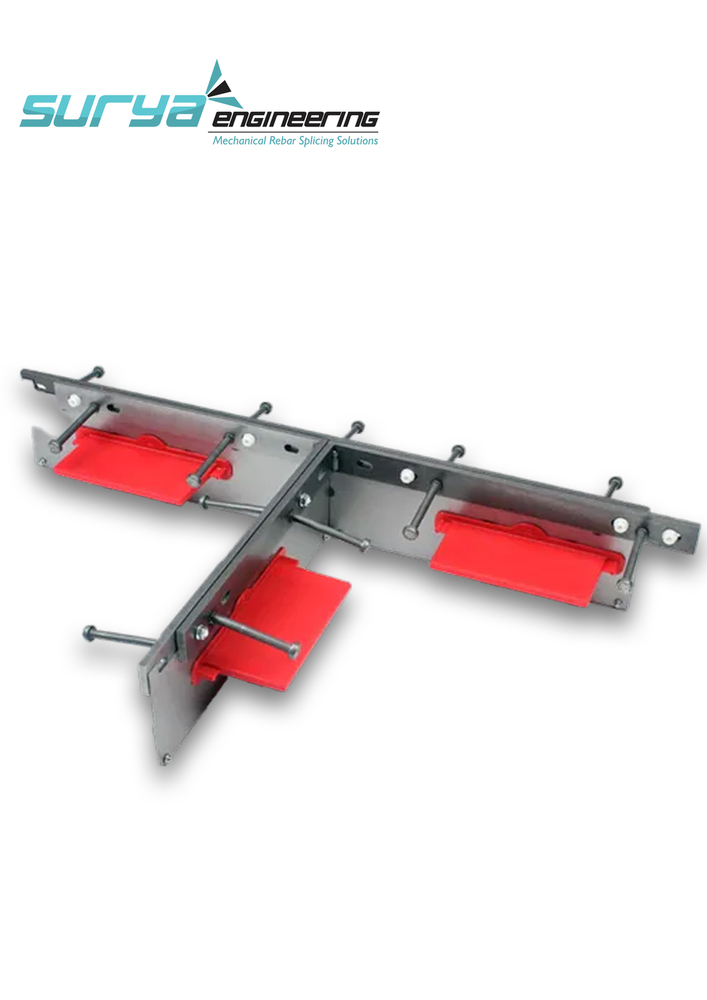

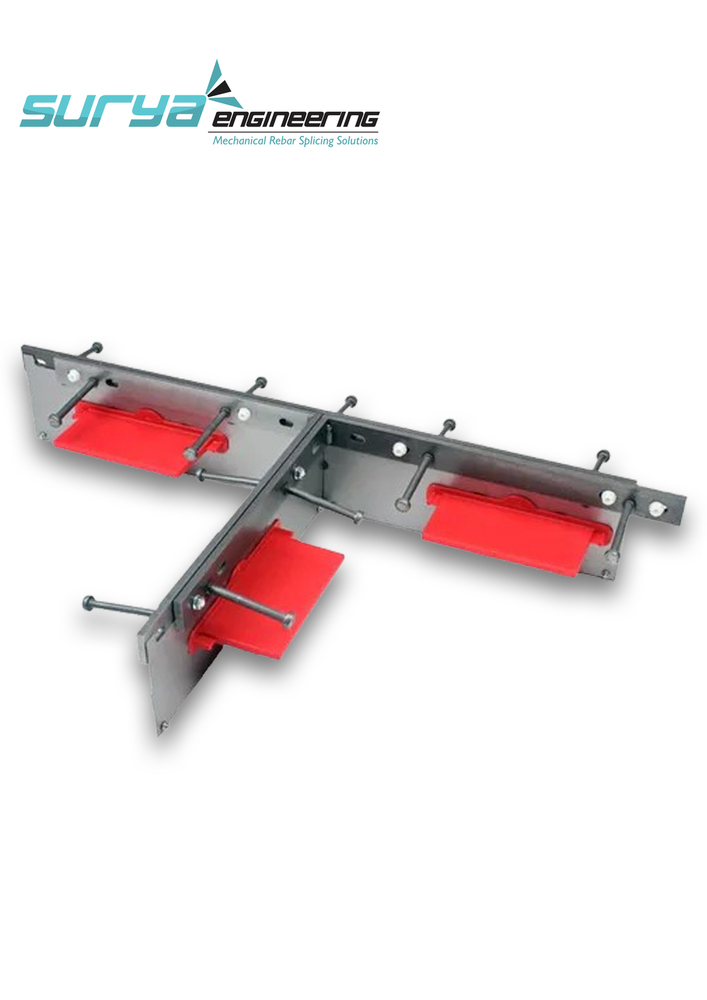

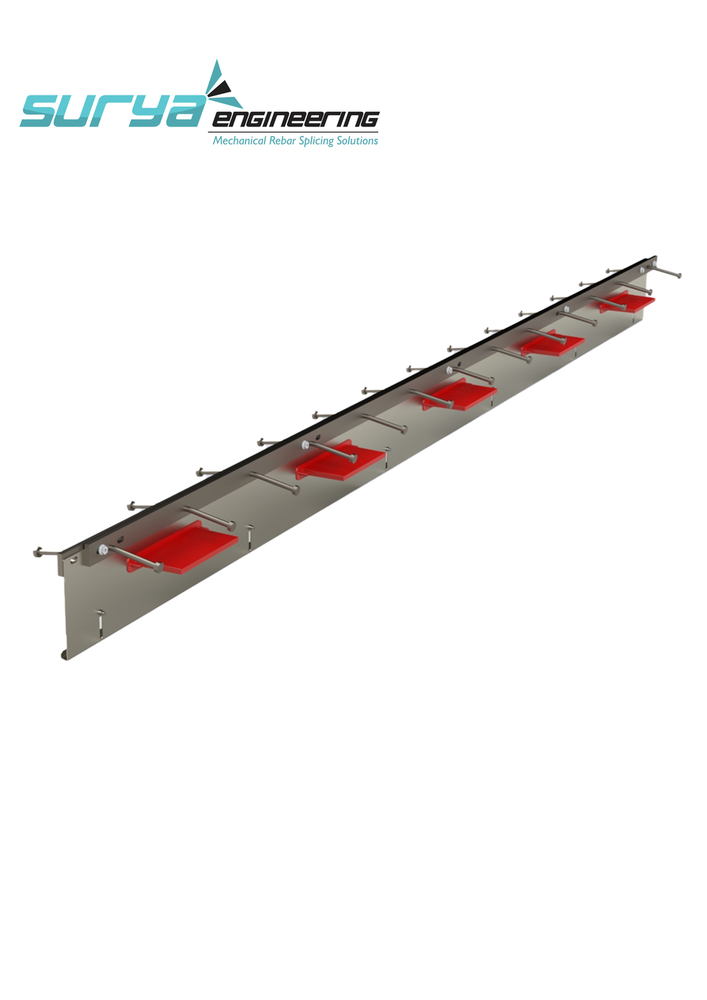

Diamond/Speed Dowels Plate and Sleeves are designed to transfer loads across construction joints in slab-on-ground applications.

The ABS sleeve encases one half of the plate dowel to de-bond the dowel from the concrete. Plate Dowels allow for expansion, contraction and lateral movement at the joint.

The Diamond/Speed Dowel Sleeve minimises the vertical movement across the joint.

There are two types of coating done on armour joint i.e. GI Coated & Paint Coated.


Better performing pavements and slabs: eliminates out of joint cracking

Simple installation: easy sleeve installation, form removal the next day, and dowel insertion
Reduces labour: eliminates need for drilling or processing forms
Improves customer satisfaction: less repairs and maintenance

Available in 6 mm, 8 mm and 10 mm thickness, Galvanized & Stainless Steel.

Width of Armour joint totally depends on Pavement Slab. If Width of a slab is 150mm then Width of Armour joint will be 130mm, if Width of a slab is 200mm then Width of Armour joint will be 170mm, if Width of a slab is 240mm then Width of Armour joint will be 210mm and so on.
