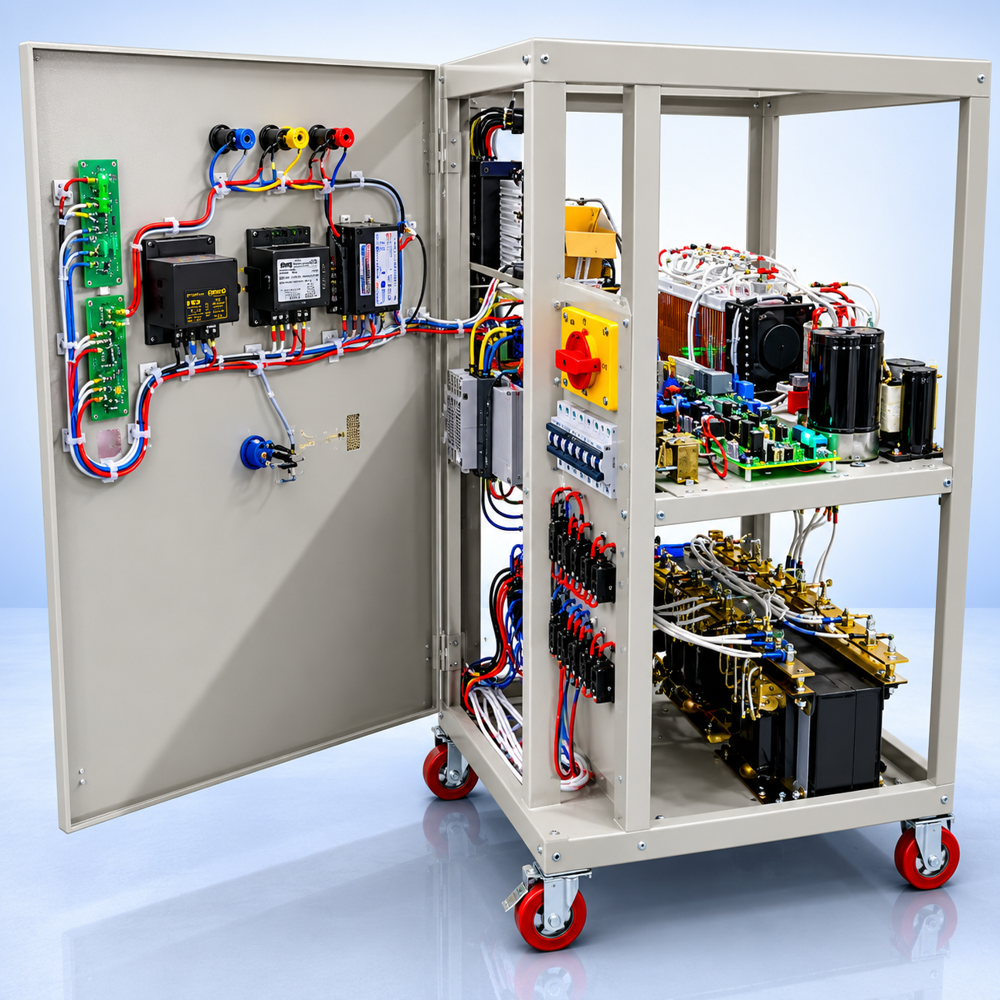

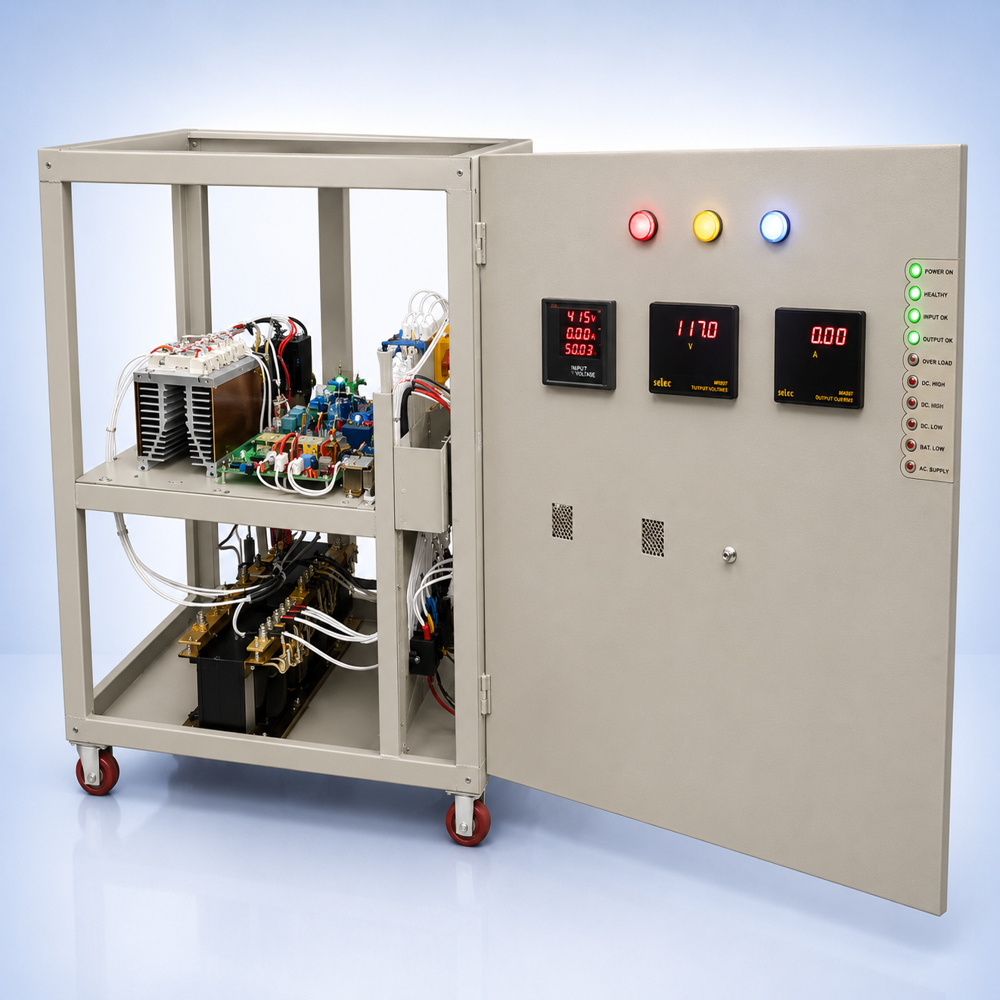

Float Cum Boost Charger

FLOAT CUM BOOST CHARGERS - DC POWER SUPPLIES
ProtekG has a 28 years of experience in designing and manufacturing of Industrial Float cum Boost charger chargers, BPS Industrial Float Chargers FCBC, FCBC Battery Charger
Float Charging are designed to supply a constant DC source for continuous load and intermittent DC loads and simultaneously keep the connected batteries in fully charged condition.
These are Constant Current Constant Voltage chargers. Chargers are Transformers based, have a full bridge rectifier consisting of SCR / Diode or SCR-SCR modules with a phase angle control loop to automatically control the charging rate for a wide range of batteries.
BPS chargers are suitable for Float Charging all kinds of batteries like VRLA, Ni-Cad, Tubular, Plante, etc. Float Charging

TECHNICAL SPECIFICATIONS :
Configuration: 415V. AC ( 3 Phase) / 240 V (1 Phase)+/- 20 %/ +/- 10%, 50 Hz. +/- 3 Hz.

Output: 30 V, 48 V, 110 V, and 220 V. DC supply

Battery Type: Lead Acid / SMF/PLANTE/ NiCd

Indications and instruments: Indications for 3-phase mains supply

Float / Boost section

AC Volt meter with selector switch

DC Volt meter with selector switch and battery volt

DC Amps meter for load

DC Amps meter for Charging



5. Protection: MCB for Mains incoming supply Over Voltage cut-out circuit

Single phasing under voltage for mains MCB for output load

Overload cut out by electronics circuit



6. Cabinet Enclosure: Heavy-duty Sheet Steel Enclosure Finished with Powder Coated paint.

7. Operation: Auto/Manual

8.Control: CC/ CV close loop

9.Rectifier: Full wave half controlled bridge

10. Optional: Fuse protection for each rectifier element, Fuse failure relay

: DC Earth Fault Relay Alarm Annunciation

: Dual Float Charger option *Any other as per requirement.
