Float & Board Level Indicator - Ss.304 & Ss.316 Material, 150mm Wide Board | Visual Indicator, Adjustable Pipe For Tank Height, Ip65 Protection Level

"BOMBAY INSTRUMENTS MFG. CO." Make Float & Board Type Level Indicator
fabricated from the following parts :
Our Model No. : 11
Board : Aluminium powder coated having 150 mm width & acid
proof paint marking at every 10 cm with PP roller for
frictionless sliding on board .
Mounting brackets and suitable hardware will provide as
per tank height.
Min. Graduation : 100 MM
Cable Float : SS.304
Float Assembly : SS.316
Sheave Assembly : Pulley Housing : Al. Die Cost acid proof
Top Board Connector : Steel
Board Bracket : Steel
Indicator Assembly : Steel
Guide wire Indicator/rope : SS.304
Bottom Bracket : Steel
Tank Length : 3 mtr
Mounting : 1 NB, ASA 150 Flange.
Qty : 01 Nos.
All wetted Parts : SS.304
Nozzle length : 800 MM Adjustable
Make : BIMCO - Bombay Instrument
Scope of Supply : -

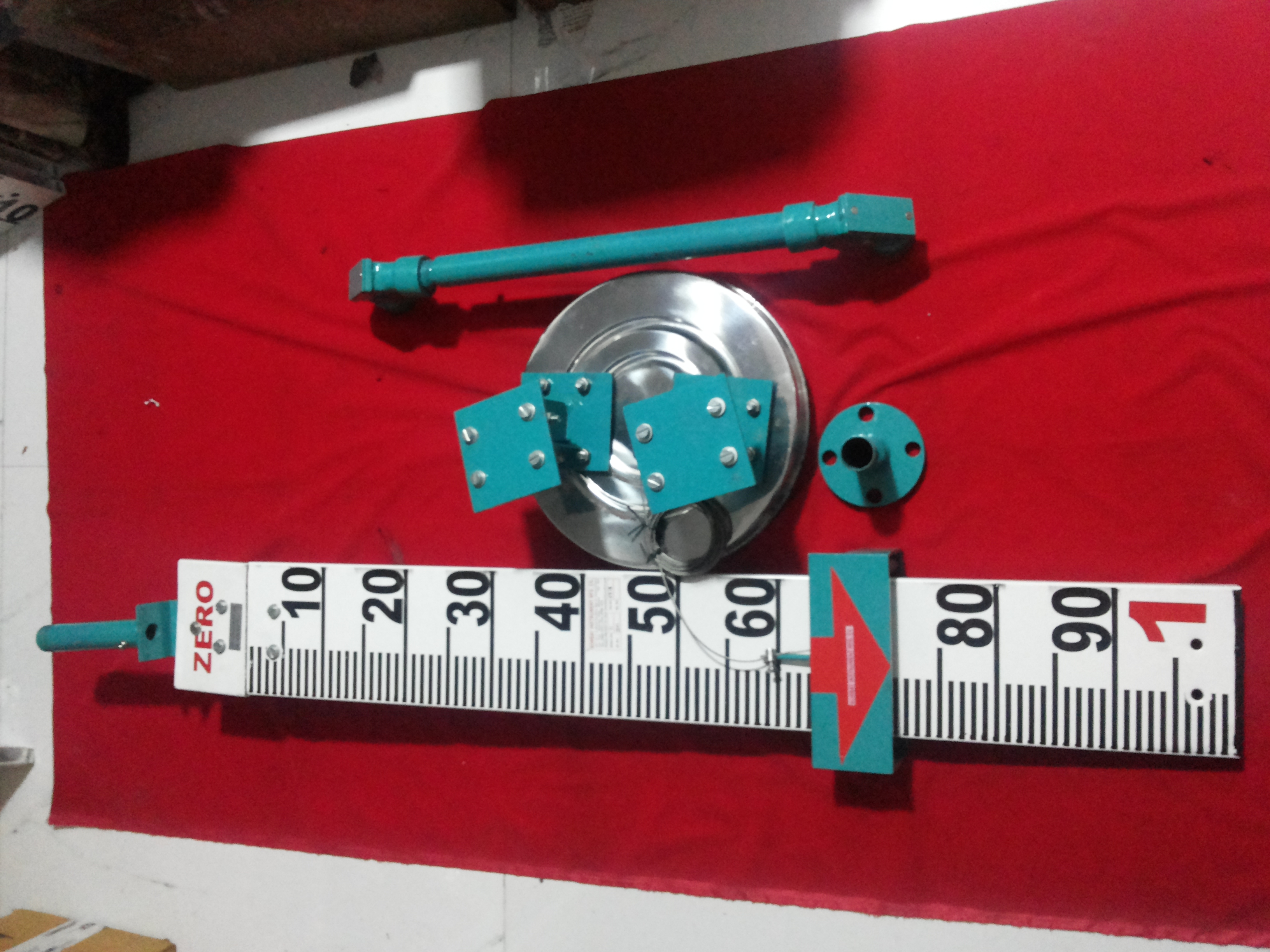

Complete assembly will be provided. It include Scale with radium numbering , Indicator with radium
Brackets to fix Scale & wall of tank, Indicator rope, Float, Float rope,
Locable pin to lock float & indicator by rope, Pulley assembly, Pulley housing , 800mm Adjustable pipe
for fixing on Top of tank with flange in-build with pulley housing.
