Float And Board Type Level Indicators - Stainless Steel & Polypropylene, 1 To 30 Meter Height, Analog Display With +/- 0.5% Accuracy

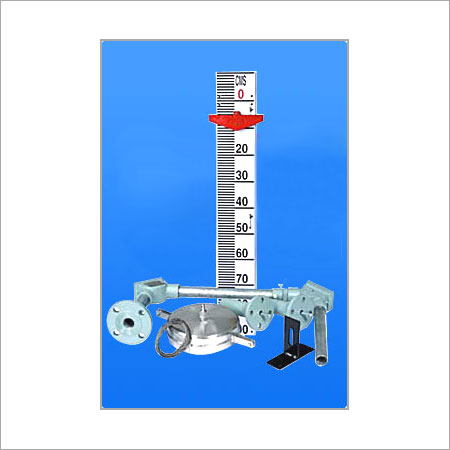

We are making, exporting and supplying Float and Board type Level Indicators in Vadodara, Gujarat, India. Flowtech offer Float & Board Type Tank Level gauge (indicator) suitable for large non - pressurized liquid storage tanks / vessels. The Specific Gravity of the fluid should be more than 0.6. Float is available in different material S.S.304/S.S.316P.P./ptfe etc. In this level gauge,the float is design as per the specific gravity of the liquid, floating on the liquid levels. This float connected to a pointer through Rope via a Sets of Pulleys, The pointer slides over a CM marked Board, Installed Parallel to the tank. For more than 3 metre height of the tank we provide two guide wires firmly anchored to the tank bottom. So that horizontal movement of the float is restricted.

Design Feature

Flowtech also offers vapour Seal Type float & Board type level Gauge which is generally used for tanks having corrosive fumes / vapours OR N2 [Nitrogen] Purging tanks. In this level gauge the float is connected to a magnetized counter weight moving in a sealed S.S. pipe & which drives a follower magnetized bi - colour capsule inside a glass tube to indicate liquid level.

Performance

Float Inside the tank raises and dails with the level of fluid this makes the pointer mobe one the scale indicating level inside the tank. In this level gauge, when tank is full the pointer is at bottom position on board and when tank is empty, the pointer will be at top position.

Material Of Construction

Float S.S.316 / S.S.304 / Poly Propylene
Float Wire & Float Guide Wire S.S.316 / Poly Propylene
Pulley & Pulley Pin M.S. / S.S.304
Pulley Housing Aluminium / S.S.304 / S.S.316 die Cast weather Proof Enclosure of Weather Proof
Board (Scale) Aluminium with Powder Coated having 150 mm Width & White Back Ground & Black writing atevery 10CM and Red Marking at Every Meter.
Pointer M.S / S.S.304 with PP Roller for Frictionless Sliding On Board.
Available From 1 Metre to 30 Meter.
